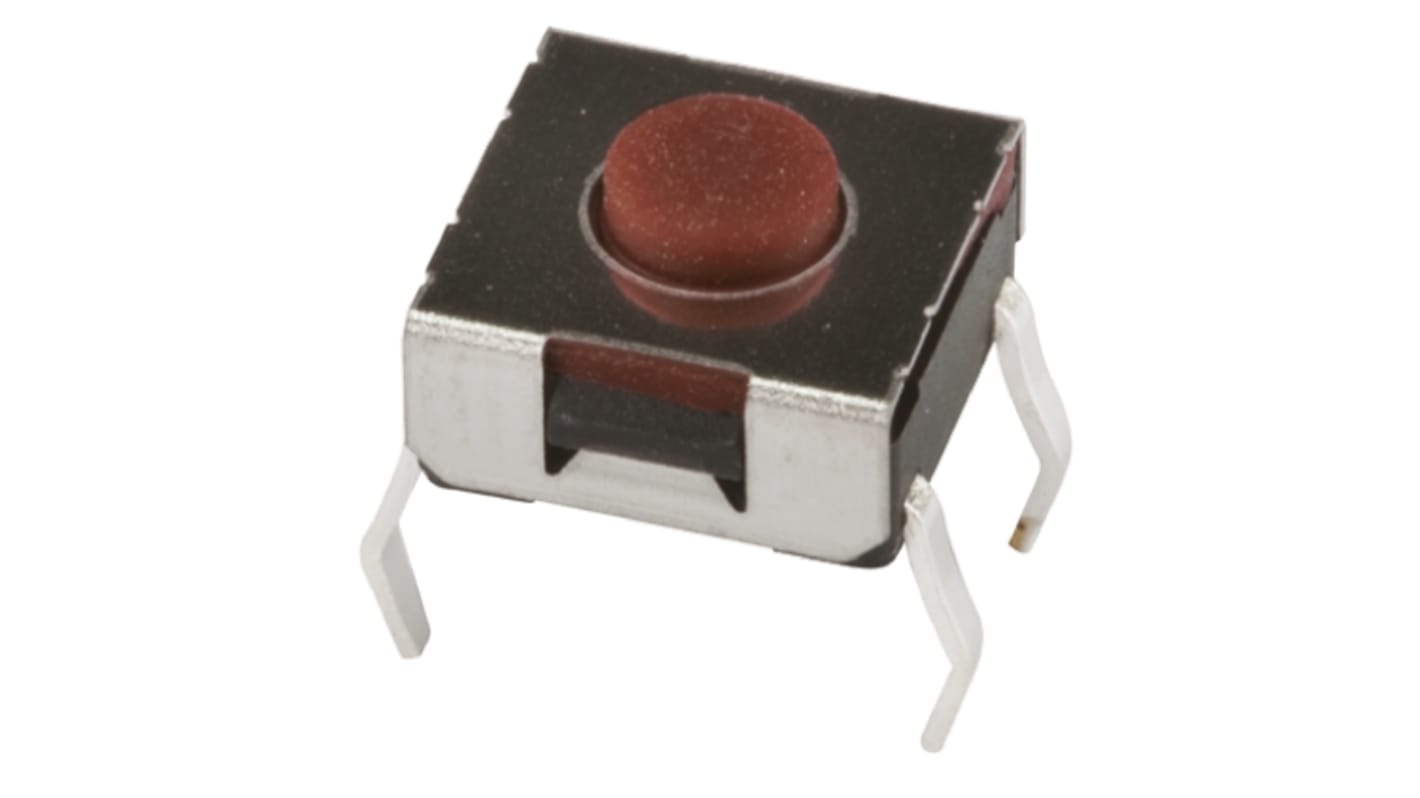

APEM Brown Tactile Switch Button, 9 mm, SPST-NO 50mA 12 V dc, Surface
- RS Stock No.:
- 378-6555
- Mfr. Part No.:
- DTSHW69NV
- Brand:
- APEM
Subtotal (1 pack of 10 units)*
£5.64
(exc. VAT)
£6.77
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.564 | £5.64 |
*price indicative
- RS Stock No.:
- 378-6555
- Mfr. Part No.:
- DTSHW69NV
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | SPST-NO | |
| Product Type | Tactile Switch | |
| Terminal Type | Through Hole | |
| Switch Operation | Momentary | |
| Actuator Colour | Brown | |
| Actuator Length | 9mm | |
| Length | 6.2mm | |
| Width | 6.3mm | |
| Illuminated | No | |
| Actuator Orientation | Top | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 12V dc | |
| Mount Type | Surface | |
| Switch Contact Current | 50mA | |
| Switch Configuration | (On)-Off | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Series | DTS | |
| Height | 3.8mm | |
| Operating Force | 1.56N | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration SPST-NO | ||
Product Type Tactile Switch | ||
Terminal Type Through Hole | ||
Switch Operation Momentary | ||
Actuator Colour Brown | ||
Actuator Length 9mm | ||
Length 6.2mm | ||
Width 6.3mm | ||
Illuminated No | ||
Actuator Orientation Top | ||
Actuator Style Button | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 12V dc | ||
Mount Type Surface | ||
Switch Contact Current 50mA | ||
Switch Configuration (On)-Off | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Series DTS | ||
Height 3.8mm | ||
Operating Force 1.56N | ||
Mechanical Life 500000Cycles | ||
- COO (Country of Origin):
- CN
Commercial Tactile Switches
SPNO “tact” switches offer wide choice of size, mounting and operating characteristics
Through-hole or surface-mount options with optional caps available
Tactile
Note
Colour of switch actuator signifies operating force.
