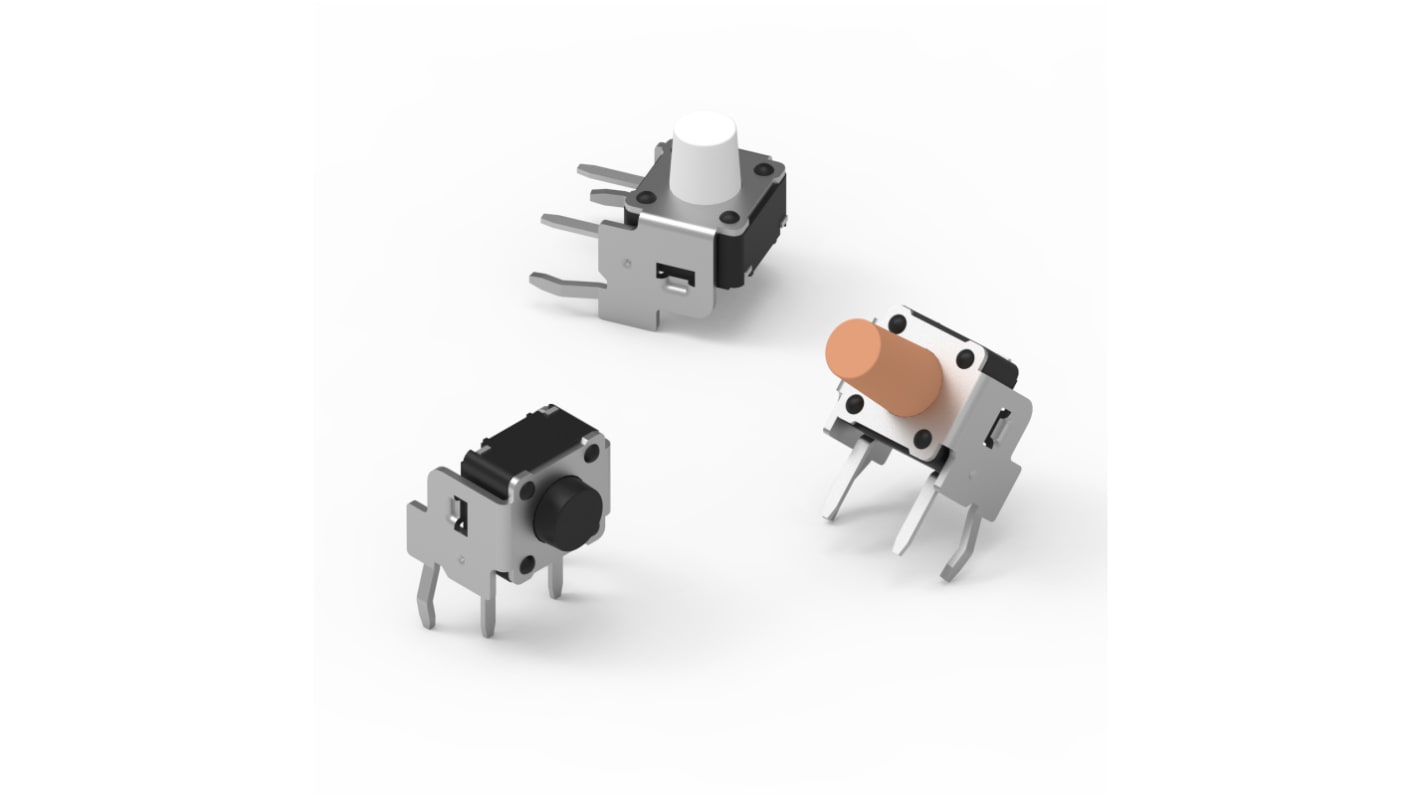

Wurth Elektronik IP67 White Tactile Switch Tactile, 4.5 mm, SPST 50 mA, 250 V ac, Surface
- RS Stock No.:
- 274-3424
- Distrelec Article No.:
- 304-42-199
- Mfr. Part No.:
- 431256058726
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 10 units)*
£3.84
(exc. VAT)
£4.61
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 220 unit(s), ready to ship
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | £0.384 | £3.84 |
| 100 - 240 | £0.361 | £3.61 |
| 250 + | £0.347 | £3.47 |
*price indicative
- RS Stock No.:
- 274-3424
- Distrelec Article No.:
- 304-42-199
- Mfr. Part No.:
- 431256058726
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Through Hole | |
| Switch Operation | Momentary | |
| Actuator Colour | White | |
| Actuator Length | 4.5mm | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Tactile | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| IP Rating | IP67 | |
| Standards/Approvals | RoHS, REACH | |
| Series | WS-TATU | |
| Operating Force | 260g | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Through Hole | ||
Switch Operation Momentary | ||
Actuator Colour White | ||
Actuator Length 4.5mm | ||
Contact AC Voltage 250V ac | ||
Actuator Style Tactile | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
IP Rating IP67 | ||
Standards/Approvals RoHS, REACH | ||
Series WS-TATU | ||
Operating Force 260g | ||
Mechanical Life 500000Cycles | ||
The Wurth Elektronik top actuated surface mount tact switch with cover is made up of carbon steel material and has a black frame color. The terminal is made up of copper alloy material.
Moisture sensitivity level 1
RoHS compliant
