Wurth Elektronik IP67 White Tactile Switch Tactile, 3.8 mm, SPST 50 mA, 250 V ac, Surface
- RS Stock No.:
- 274-3393
- Mfr. Part No.:
- 430162073826
- Brand:
- Wurth Elektronik
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 274-3393
- Mfr. Part No.:
- 430162073826
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Actuator Colour | White | |
| Actuator Length | 3.8mm | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Tactile | |
| Mount Type | Surface | |
| Maximum Operating Temperature | 85°C | |
| IP Rating | IP67 | |
| Standards/Approvals | REACH, RoHS | |
| Series | WS-TASV | |
| Operating Force | 260g | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Actuator Colour White | ||
Actuator Length 3.8mm | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 250V ac | ||
Actuator Style Tactile | ||
Mount Type Surface | ||
Maximum Operating Temperature 85°C | ||
IP Rating IP67 | ||
Standards/Approvals REACH, RoHS | ||
Series WS-TASV | ||
Operating Force 260g | ||
Mechanical Life 500000Cycles | ||

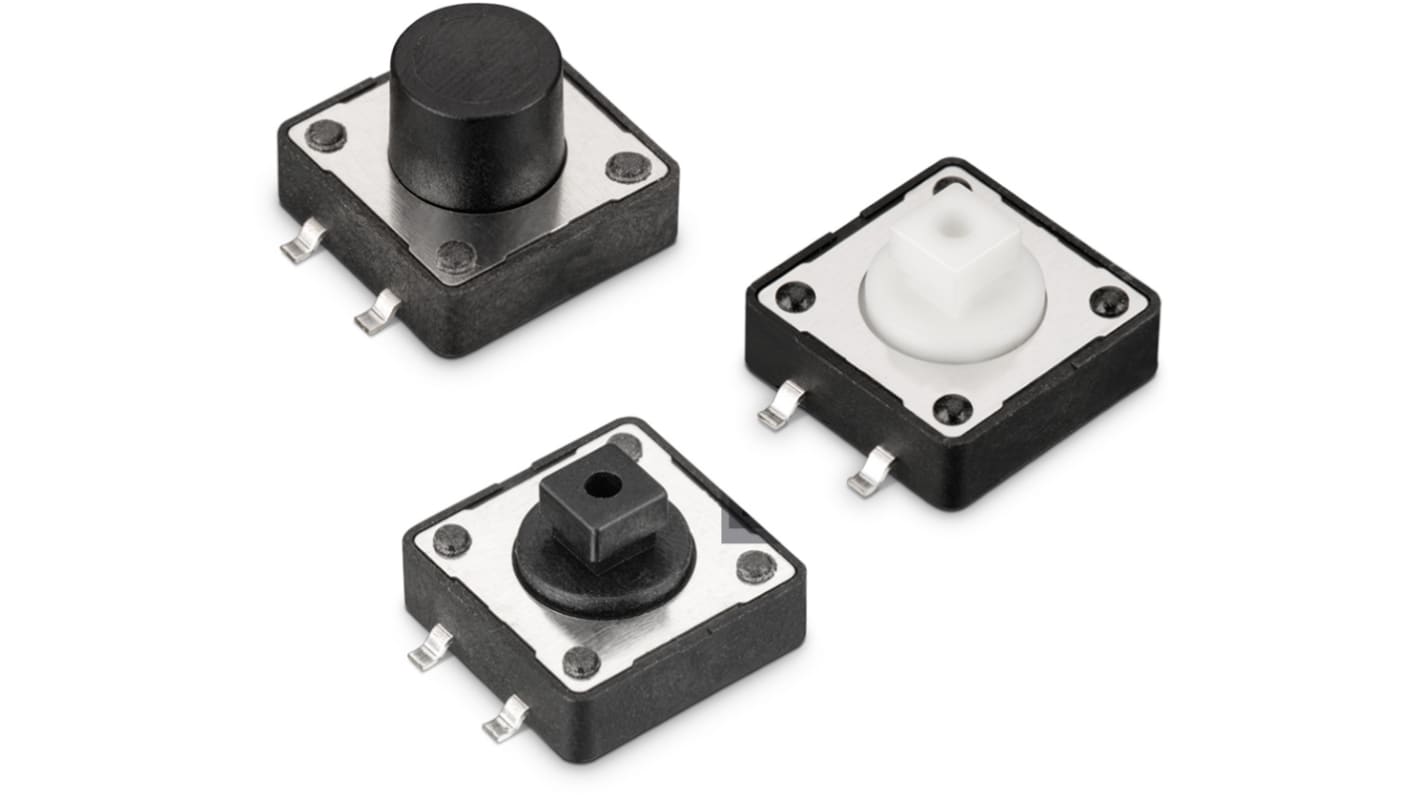

The Wurth Elektronik top actuated surface mount tact switch with cover is made of stainless steel material and has a black frame color. The terminal is made up of copper alloy material.
Moisture sensitivity level 1
RoHS compliant
