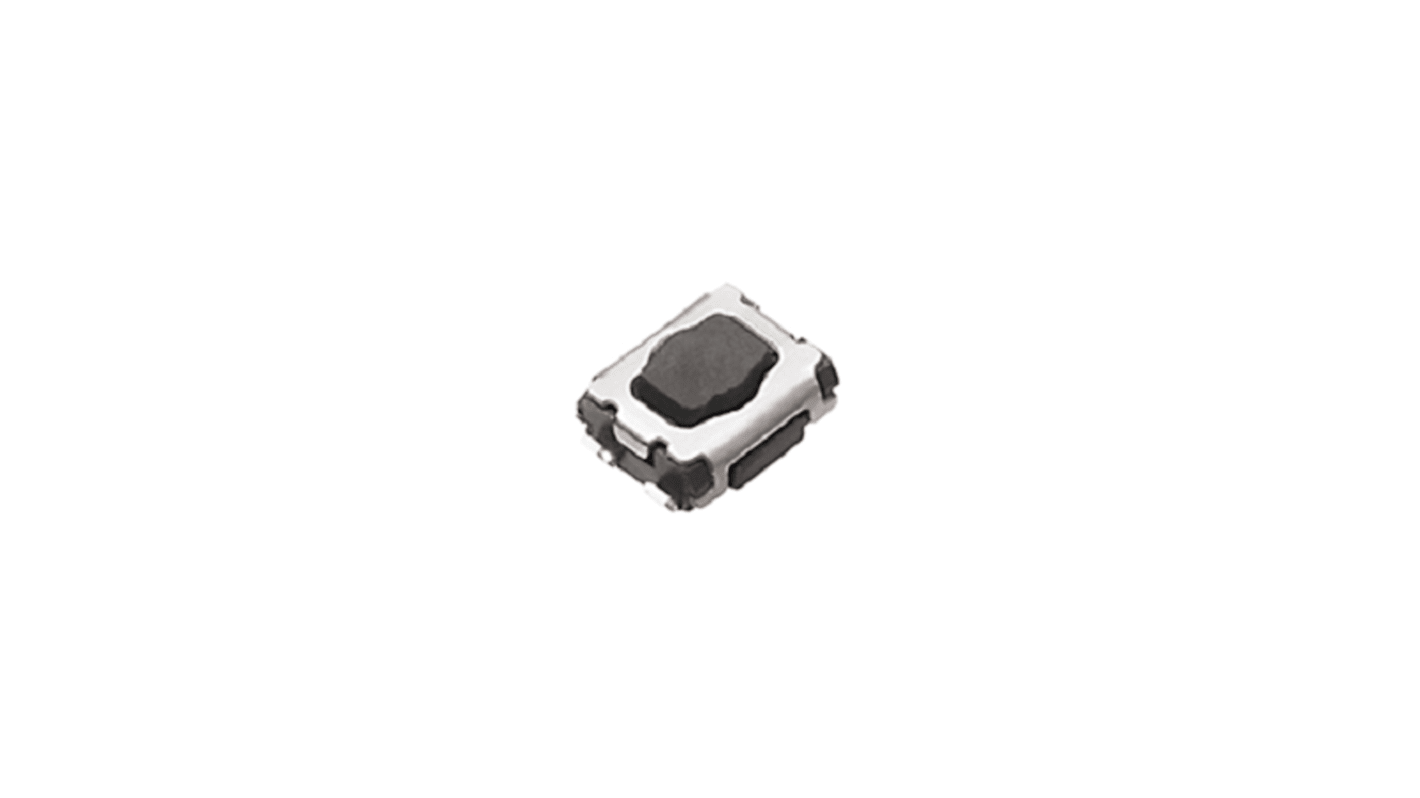

Panasonic Grey Tactile Switch Push Plate, 2.2 mm, SPST 20 mA 15 V dc, Surface
- RS Stock No.:
- 238-3697
- Mfr. Part No.:
- EVPAAU02Q
- Brand:
- Panasonic
Subtotal (1 tape of 10 units)*
£5.05
(exc. VAT)
£6.06
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4,880 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 + | £0.505 | £5.05 |
*price indicative
- RS Stock No.:
- 238-3697
- Mfr. Part No.:
- EVPAAU02Q
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | J Bend | |
| Switch Operation | Push-On | |
| Actuator Colour | Grey | |
| Actuator Length | 2.2mm | |
| Mount Type | Surface | |
| Actuator Style | Push Plate | |
| Contact DC Voltage | 15V dc | |
| Actuator Orientation | Straight | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | EVPA | |
| Height | 1.7mm | |
| Operating Force | 7N | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type J Bend | ||
Switch Operation Push-On | ||
Actuator Colour Grey | ||
Actuator Length 2.2mm | ||
Mount Type Surface | ||
Actuator Style Push Plate | ||
Contact DC Voltage 15V dc | ||
Actuator Orientation Straight | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series EVPA | ||
Height 1.7mm | ||
Operating Force 7N | ||
Mechanical Life 100000Cycles | ||
The Panasonic SMD light touch switch has 3.5 mm x 2.9 mm external dimensions and height 1.7 mm. It has high operating force 7 N max. The optional ground terminal.
Operation switches for portable electronic equipment's
Operating switches for keyless entry systems
Type snap action/push-on type SPST
Electrical rating 10 μA 2 V DC to 20 mA 15 V DC (Resistive load)
Operating temperature has –40 °C to +85 °C
