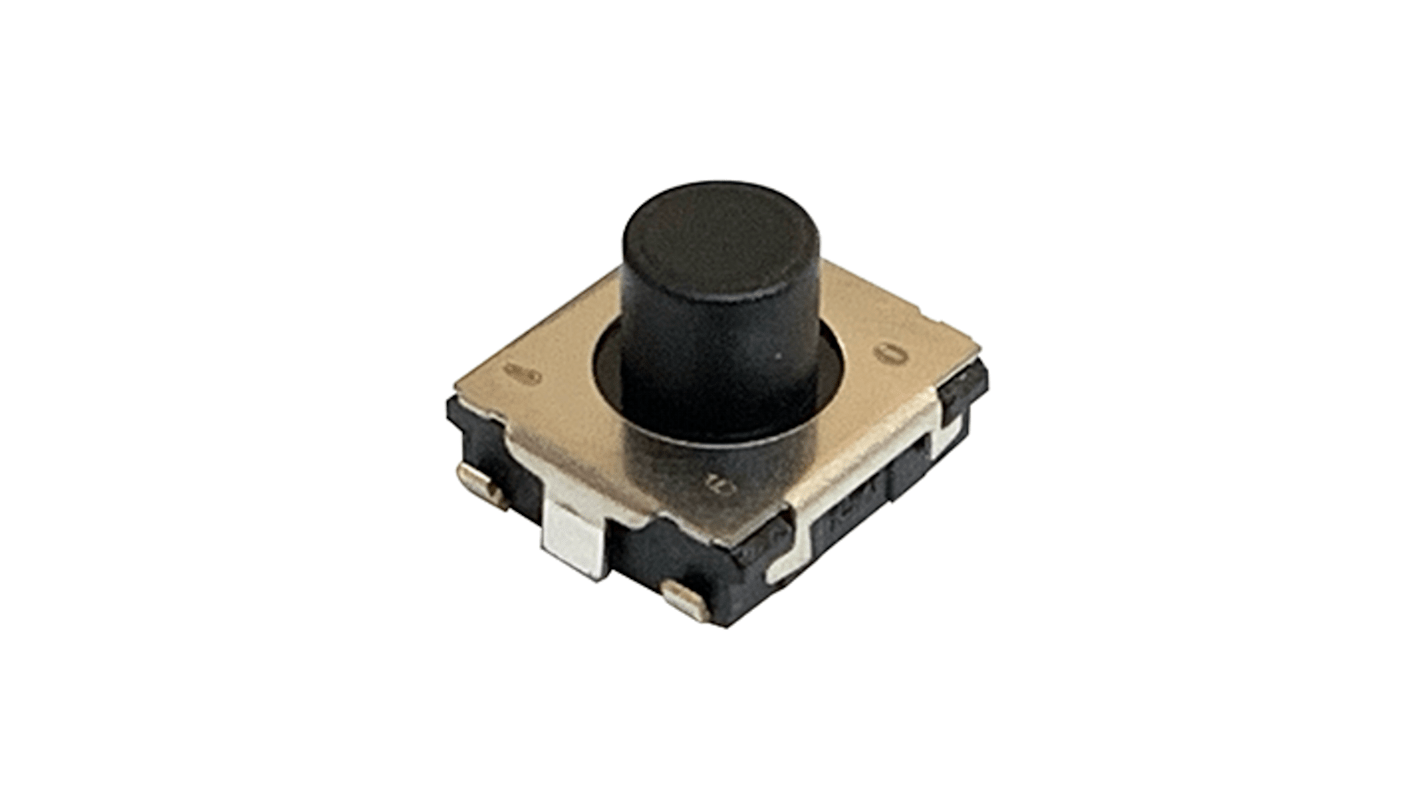

Panasonic Black Tactile Switch Push Plate, 2.5 mm, SPST 20 mA, 250 V ac, Surface
- RS Stock No.:
- 236-5024
- Mfr. Part No.:
- EVPBT4J4A000
- Brand:
- Panasonic
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (Supplied on a Reel)
£0.189
(exc. VAT)
£0.227
(inc. VAT)
- RS Stock No.:
- 236-5024
- Mfr. Part No.:
- EVPBT4J4A000
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | J Bend | |
| Switch Operation | Push-On | |
| Actuator Colour | Black | |
| Length | 2.5mm | |
| Actuator Length | 2.5mm | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Push Plate | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | SPST | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | EVPBT | |
| Height | 1.8mm | |
| Operating Force | 1.3N | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type J Bend | ||
Switch Operation Push-On | ||
Actuator Colour Black | ||
Length 2.5mm | ||
Actuator Length 2.5mm | ||
Contact AC Voltage 250V ac | ||
Actuator Style Push Plate | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration SPST | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series EVPBT | ||
Height 1.8mm | ||
Operating Force 1.3N | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- MY
The Panasonic EVPBT series square thin type surface mount tactile switch is versatile and can be used in almost any user Interface application. The tactile switch have short push travel and dielectric withstanding voltage 250 V AC for 1 minute.
With ground Terminal
Operating life 1,000,000 cycles
Overstroke travel
Operating switches for other electronic equipment
