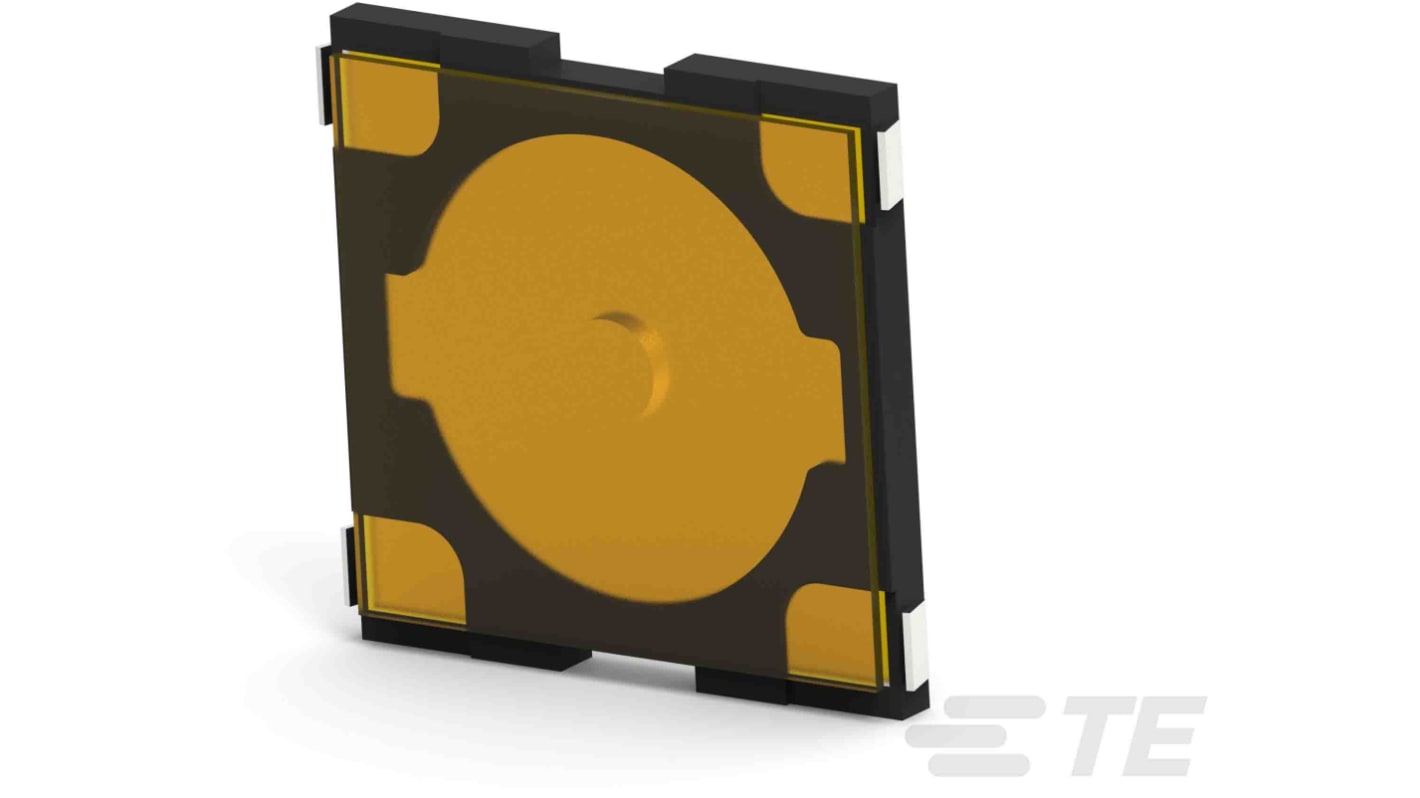

TE Connectivity Black Tactile Switch, 4.6 mm, SPST 50mA 12 V dc, Surface
- RS Stock No.:
- 223-4064
- Mfr. Part No.:
- MCSLPT4848C1DTR
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 2500 units)*
£327.50
(exc. VAT)
£392.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 2500 - 2500 | £0.131 | £327.50 |
| 5000 + | £0.113 | £282.50 |
*price indicative
- RS Stock No.:
- 223-4064
- Mfr. Part No.:
- MCSLPT4848C1DTR
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Actuator Colour | Black | |
| Actuator Length | 4.6mm | |
| Length | 4.8mm | |
| Width | 4.8mm | |
| Illuminated | No | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 12V dc | |
| Actuator Orientation | Vertical | |
| Switch Contact Current | 50mA | |
| Maximum Operating Temperature | 80°C | |
| Series | MCSPLT | |
| Standards/Approvals | RoHS | |
| Height | 550μm | |
| Operating Force | 0.98N | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Actuator Colour Black | ||
Actuator Length 4.6mm | ||
Length 4.8mm | ||
Width 4.8mm | ||
Illuminated No | ||
Mount Type Surface | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 12V dc | ||
Actuator Orientation Vertical | ||
Switch Contact Current 50mA | ||
Maximum Operating Temperature 80°C | ||
Series MCSPLT | ||
Standards/Approvals RoHS | ||
Height 550μm | ||
Operating Force 0.98N | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- CN
The TE Connectivity MCSLPT series low profile tactile switch suitable for a wide variety of applications such as portable electronic devices, 3C products, smart phones and digital cameras. It has operating temperature range from -20° C to +70° C.
Compact size
Extended operating life
Low profile
