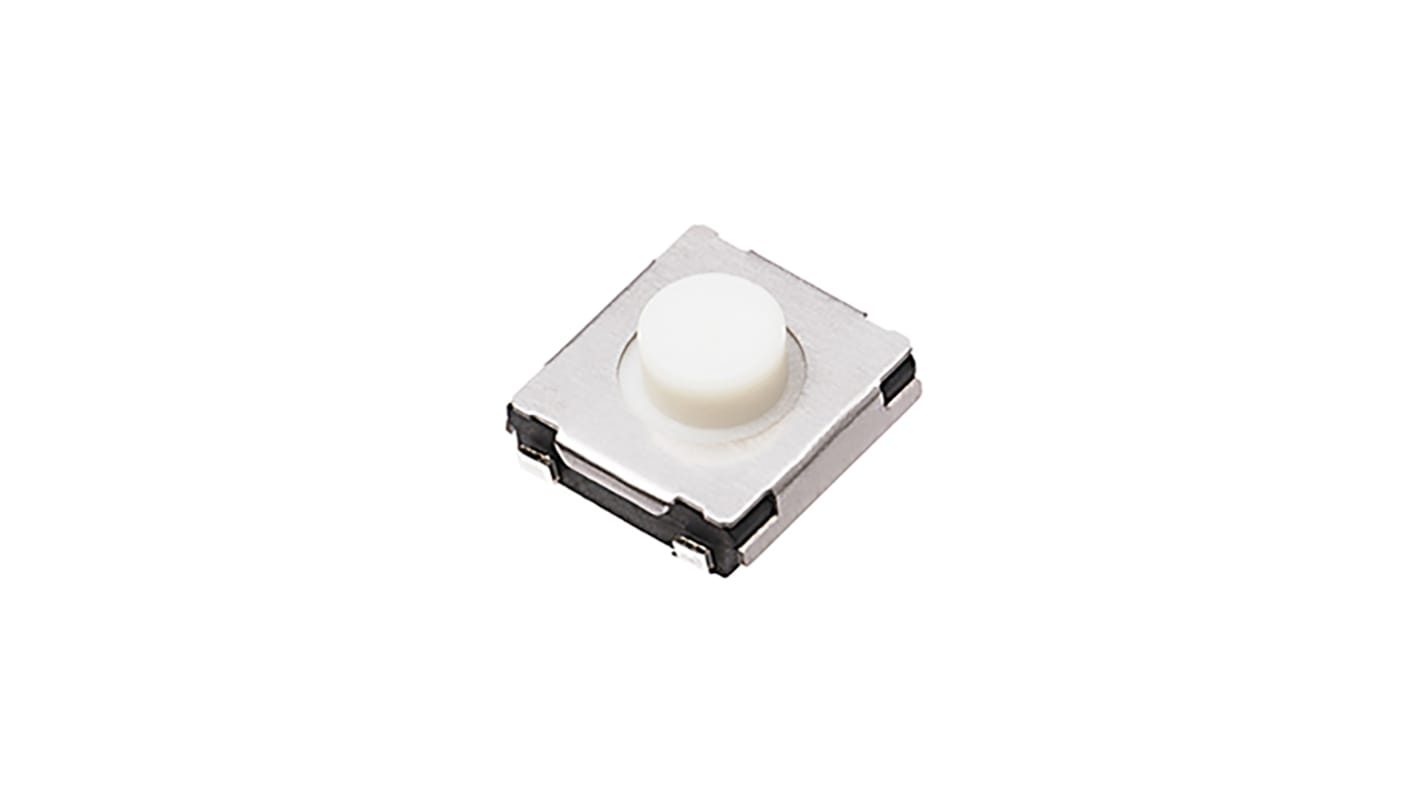

Panasonic White Tactile Switch Push Plate, 0.7 mm, SPST 15 V dc, Surface
- RS Stock No.:
- 178-9023
- Mfr. Part No.:
- EVQQ2B02W
- Brand:
- Panasonic
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 178-9023
- Mfr. Part No.:
- EVQQ2B02W
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | J Bend | |
| Switch Operation | Momentary | |
| Actuator Colour | White | |
| Length | 6.5mm | |
| Actuator Length | 0.7mm | |
| Width | 1.8mm | |
| Illuminated | No | |
| Actuator Style | Push Plate | |
| Mount Type | Surface | |
| Minimum Operating Temperature | 85°C | |
| Contact DC Voltage | 15V dc | |
| Maximum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Series | EVQQ2 | |
| Height | 2.5mm | |
| Operating Force | 0.5N | |
| Mechanical Life | 2000000Cycles | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type J Bend | ||
Switch Operation Momentary | ||
Actuator Colour White | ||
Length 6.5mm | ||
Actuator Length 0.7mm | ||
Width 1.8mm | ||
Illuminated No | ||
Actuator Style Push Plate | ||
Mount Type Surface | ||
Minimum Operating Temperature 85°C | ||
Contact DC Voltage 15V dc | ||
Maximum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Series EVQQ2 | ||
Height 2.5mm | ||
Operating Force 0.5N | ||
Mechanical Life 2000000Cycles | ||
Features
External dimensions : 6.5 mmx6.0mm,Height1.8mm
(Excluding the push plate)
With or without ground terminal, height, operating force
Overstroke travel
Recommended Applications
Operating switches for other electronic equipment
Operation switches for PC mouse
Car audio systems
Game
