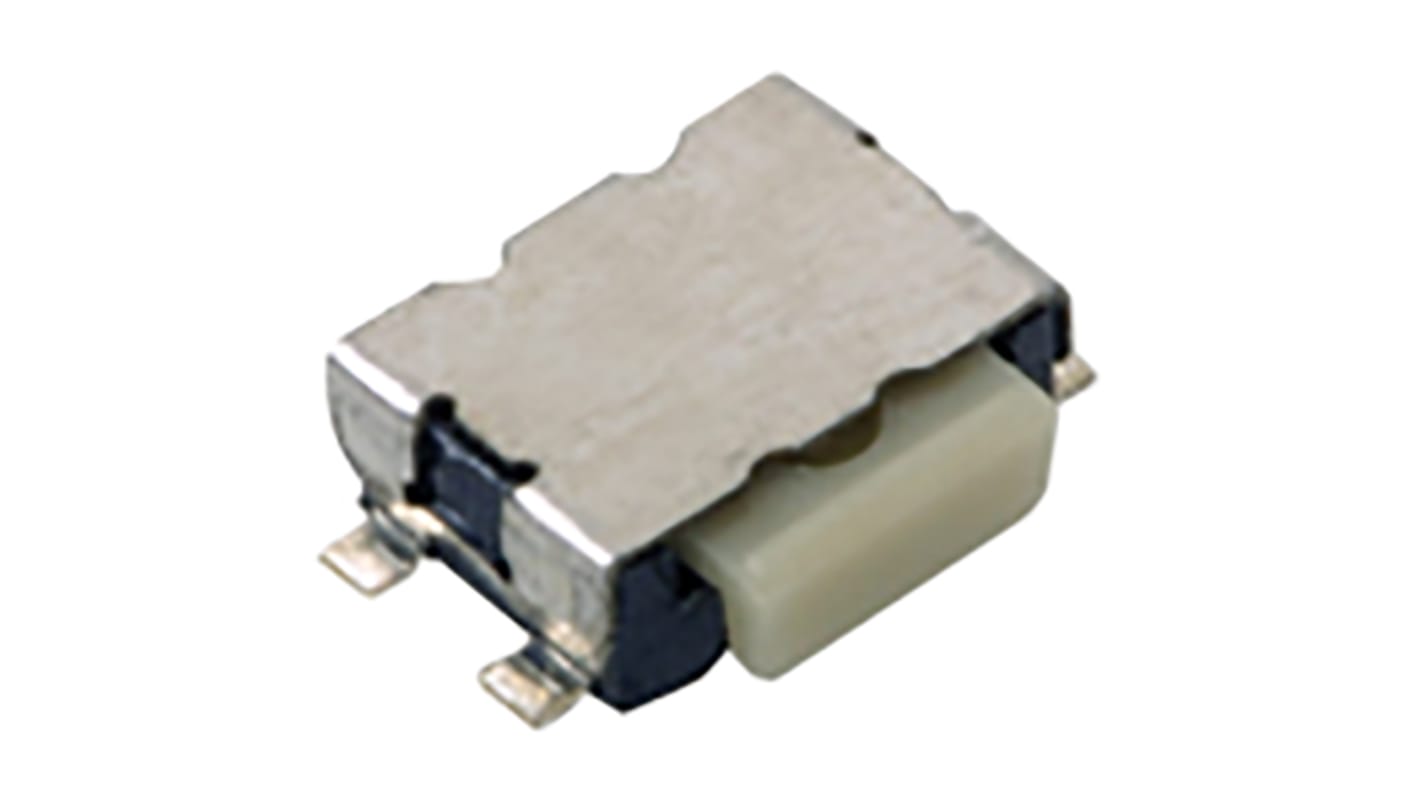

C & K IP40 Tactile Switch, SPST 10 mA 0.85mm Surface Mount
- RS Stock No.:
- 176-9408
- Mfr. Part No.:
- KMS223GP LFG
- Brand:
- C & K
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 176-9408
- Mfr. Part No.:
- KMS223GP LFG
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Terminal Type | SMT | |
| Switch Operation | Momentary | |
| Actuator Length | 0.85mm | |
| Length | 4.2mm | |
| Width | 2.8mm | |
| Dimensions | 4.2 x 2.8mm | |
| Illuminated | No | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 10 mA | |
| IP Rating | IP40 | |
| Voltage Rating | 32V dc | |
| Operating Force | 2 N | |
| Maximum Operating Temperature | +125°C | |
| Contact Material | Gold | |
| Operating Temperature Range | -40 → +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type SMT | ||
Switch Operation Momentary | ||
Actuator Length 0.85mm | ||
Length 4.2mm | ||
Width 2.8mm | ||
Dimensions 4.2 x 2.8mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 10 mA | ||
IP Rating IP40 | ||
Voltage Rating 32V dc | ||
Operating Force 2 N | ||
Maximum Operating Temperature +125°C | ||
Contact Material Gold | ||
Operating Temperature Range -40 → +125°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- FR
C&K’s KMS series microminiature SMT side actuated switch is ESD protected, which prevents malfunction or breakdown of telecommunication networks, medical handheld monitors and consumer electronics. It comes in a compact size and gives users an excellent tactile feeling.
1.42mm thickness with excellent tactile feel
ESD protection by compact size
Positioning pegs for stability
Typical Applications
Mobile phones
Medical handheld monitors
Consumer electronics
Telecommunication networks
ESD protection by compact size
Positioning pegs for stability
Typical Applications
Mobile phones
Medical handheld monitors
Consumer electronics
Telecommunication networks
