C & K Tactile Switch, SPST 50 mA Surface Mount
- RS Stock No.:
- 176-9572
- Mfr. Part No.:
- EDM 650 G SC LFG
- Brand:
- C & K
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 176-9572
- Mfr. Part No.:
- EDM 650 G SC LFG
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | C & K | |
Contact Configuration | SPST | |
Terminal Type | Gull Wing | |
Switch Operation | Momentary | |
Length | 12.7mm | |
Width | 11.3mm | |
Dimensions | 12.7 x 11.3mm | |
Illuminated | No | |
Mounting Type | Surface Mount | |
Contact Current Rating | 50 mA | |
Voltage Rating | 100V dc | |
Operating Force | 6.5 N | |
Maximum Operating Temperature | +85°C | |
Operating Temperature Range | -55 → +85°C | |
Minimum Operating Temperature | -55°C | |
Contact Material | Gold | |
Select all | ||
---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type Gull Wing | ||
Switch Operation Momentary | ||
Length 12.7mm | ||
Width 11.3mm | ||
Dimensions 12.7 x 11.3mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA | ||
Voltage Rating 100V dc | ||
Operating Force 6.5 N | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -55 → +85°C | ||
Minimum Operating Temperature -55°C | ||
Contact Material Gold | ||
- COO (Country of Origin):
- FR

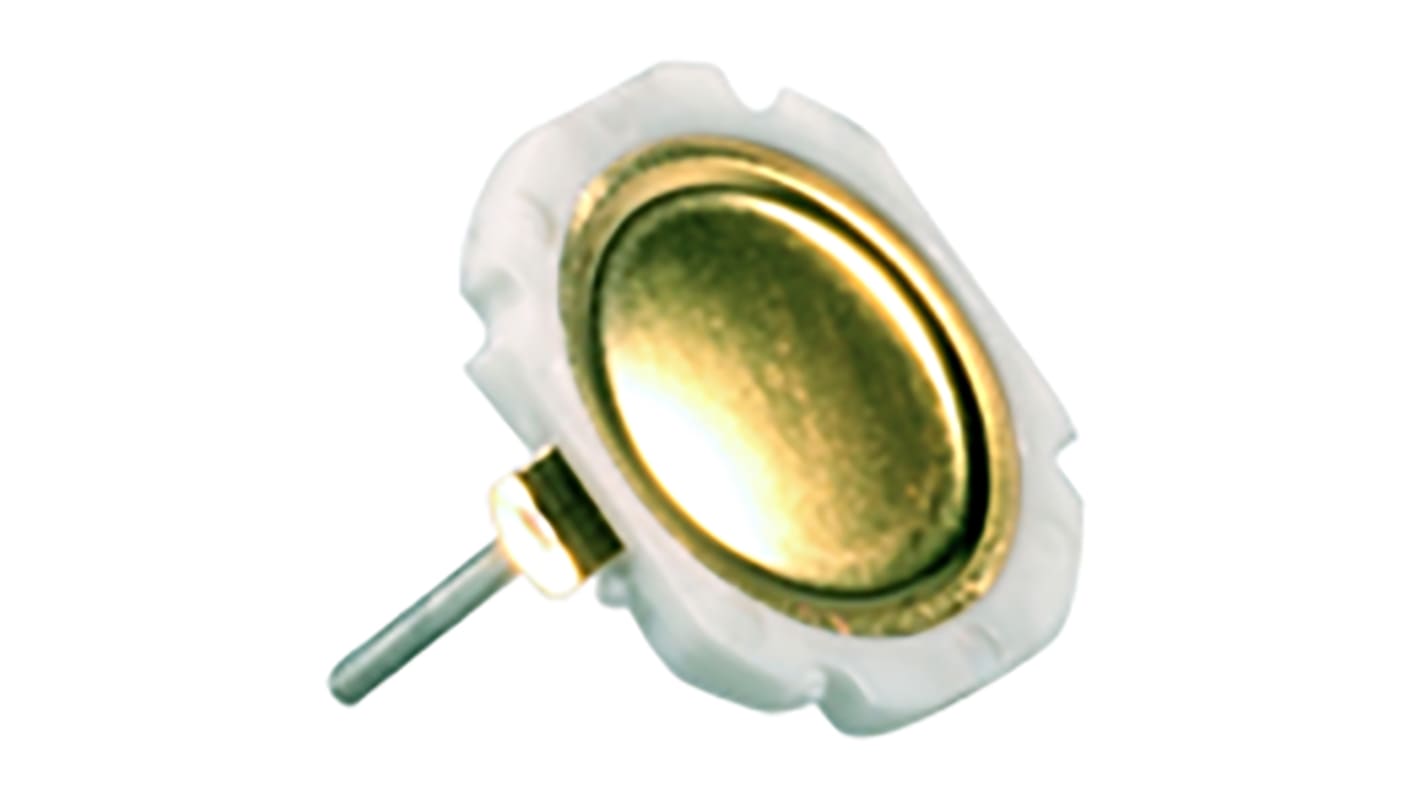

EDM Dome Tactile Switch
Introducing the EDM dome from C&K. This tactile switch has been created for low profile applications typically the aerospace industry. They offer high performance and reliability, short travel and excellent tactile feedback.
How does it work?
There are two conductive domes diaphragms divided by material that is insulated. When under load the upper diaphragm collapses and makes contact with the lower diaphragm.
What is SPST?
SPST means; single pole-single throw.
Option Explained
Designation: EDM - Operation Force: 650 grams - Contact Material: Silver -Terminal: with tabs - Sealing: Flux sealed - LFG: Gold tabs
What is SPST?
SPST means; single pole-single throw.
Option Explained
Designation: EDM - Operation Force: 650 grams - Contact Material: Silver -Terminal: with tabs - Sealing: Flux sealed - LFG: Gold tabs
Features and Benefits
• Tact switch
• Short travel
• Good tactile feedback
• High-performance
• Low profile
• Self Cleaning
• Mounting: SMT (Surface Mount Termination)
• Gold (Au) silver contacts
• Two different operating forces
• Compact PWB spacing
• RoHS
• Short travel
• Good tactile feedback
• High-performance
• Low profile
• Self Cleaning
• Mounting: SMT (Surface Mount Termination)
• Gold (Au) silver contacts
• Two different operating forces
• Compact PWB spacing
• RoHS
Operating Temperature
• - 55° C to +85° C
Pack Size
• 2500 per pack
Application Information
• Aircraft
• Instruments
• Panels
• Radio equipment
• Instruments
• Panels
• Radio equipment
