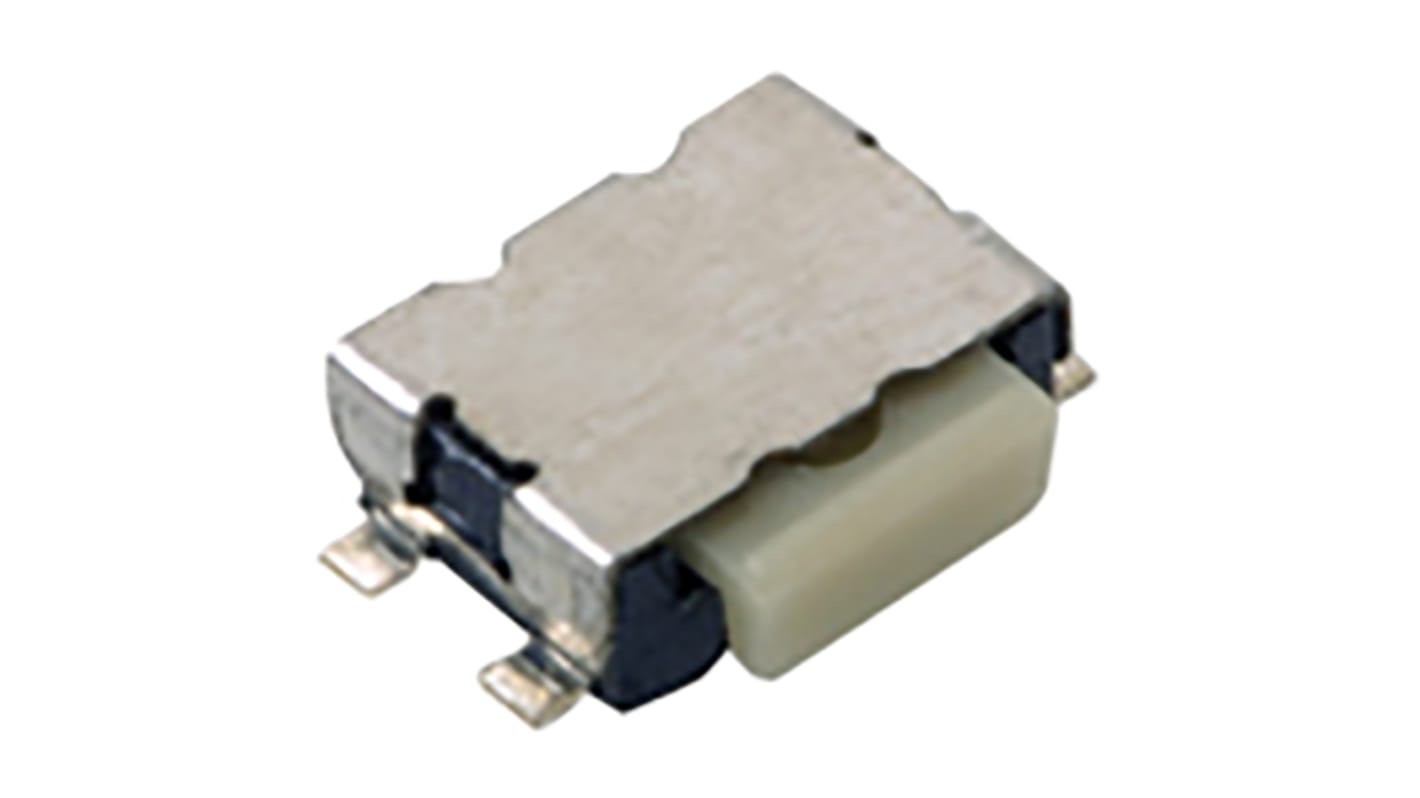

C & K IP40 Tactile Switch, SPST 50 mA 0.85mm Surface Mount
- RS Stock No.:
- 176-9406
- Mfr. Part No.:
- Y28B22112FPV10
- Brand:
- C & K
Subtotal (1 reel of 3000 units)*
£874.43
(exc. VAT)
£1,049.32
(inc. VAT)
Stock information currently inaccessible
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £874.43 | £0.291 |
*price indicative
- RS Stock No.:
- 176-9406
- Mfr. Part No.:
- Y28B22112FPV10
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Terminal Type | SMT | |
| Switch Operation | Momentary | |
| Actuator Length | 0.85mm | |
| Length | 4.2mm | |
| Width | 2.8mm | |
| Dimensions | 4.2 x 2.8mm | |
| Illuminated | No | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA | |
| IP Rating | IP40 | |
| Voltage Rating | 32V dc | |
| Operating Force | 2 N | |
| Contact Material | Silver | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type SMT | ||
Switch Operation Momentary | ||
Actuator Length 0.85mm | ||
Length 4.2mm | ||
Width 2.8mm | ||
Dimensions 4.2 x 2.8mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA | ||
IP Rating IP40 | ||
Voltage Rating 32V dc | ||
Operating Force 2 N | ||
Contact Material Silver | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- FR
C&K’s KMS series microminiature SMT side actuated switch is ESD protected, which prevents malfunction or breakdown of telecommunication networks, medical handheld monitors and consumer electronics. It comes in a compact size and gives users an excellent tactile feeling.
1.42mm thickness with excellent tactile feel
ESD protection by compact size
Positioning pegs for stability
Typical Applications
Mobile phones
Medical handheld monitors
Consumer electronics
Telecommunication networks
ESD protection by compact size
Positioning pegs for stability
Typical Applications
Mobile phones
Medical handheld monitors
Consumer electronics
Telecommunication networks
