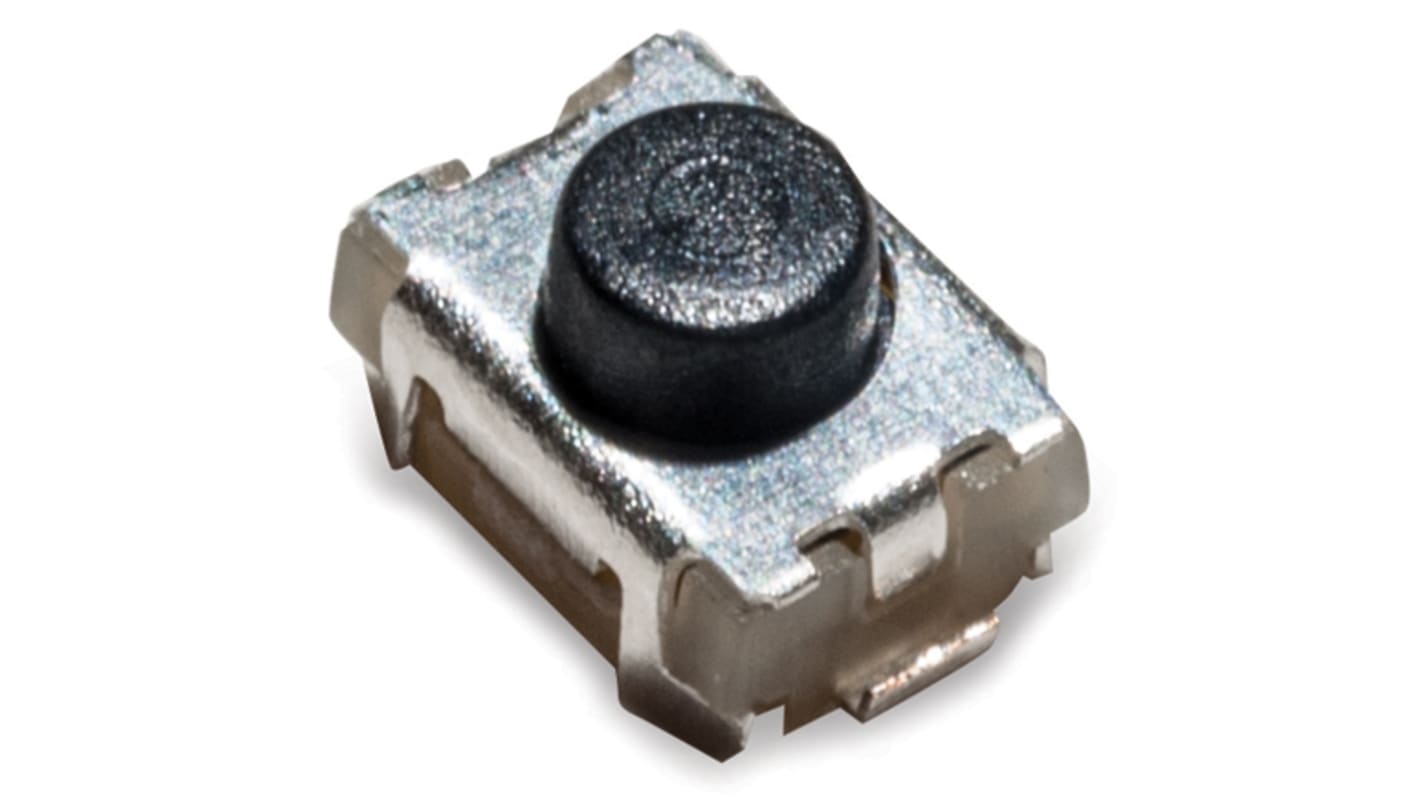

IP40 Grey Button Tactile Switch, SPST 50 mA 2 (Dia.)mm Surface Mount
- RS Stock No.:
- 135-9198
- Mfr. Part No.:
- PTS820 J15M SMTR LFS
- Brand:
- C & K
480 In stock - FREE next working day delivery available
Added
Price 1 Reel of 3000
£873.18
(exc. VAT)
£1,047.82
(inc. VAT)
| Reel(s) | Per Reel | Per unit* |
| 1 + | £873.18 | £0.291 |
| *price indicative | ||
- RS Stock No.:
- 135-9198
- Mfr. Part No.:
- PTS820 J15M SMTR LFS
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
C&K PTS820 Series Tactile Switches
From C & K Switches, a range of micro-miniature SMT tactile switches. The compact PTS820 series of switches have a 3.9 x 2.9 mm footprint making them ideal for applications where PCB board space is limited. These tactile switches are available with a standard top actuator and 3 different switch heights. The IP40 switches in the PTS820 family have a momentary function with SPST-NO silver plated J bend terminations.
Features and Benefits
• IP40
• Compact 3.9 x 2.9 mm footprint
• Silver plated contacts
• Three different switch heights
• High number of cycles
• Compact 3.9 x 2.9 mm footprint
• Silver plated contacts
• Three different switch heights
• High number of cycles
Applications
• Keyless entry systems
• Nomad devices
• Control panels
• Remote control systems
• Nomad devices
• Control panels
• Remote control systems
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 2 (Dia.)mm |
| Actuator Colour | Grey |
| Actuator Type | Button |
| Length | 3.9mm |
| Width | 2.9mm |
| Dimensions | 3.9 x 2.9mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP40 |
| Operating Force | 1.6 N |
| Voltage Rating | 12V dc |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Plated |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
- RS Stock No.:
- 135-9198
- Mfr. Part No.:
- PTS820 J15M SMTR LFS
- Brand:
- C & K
