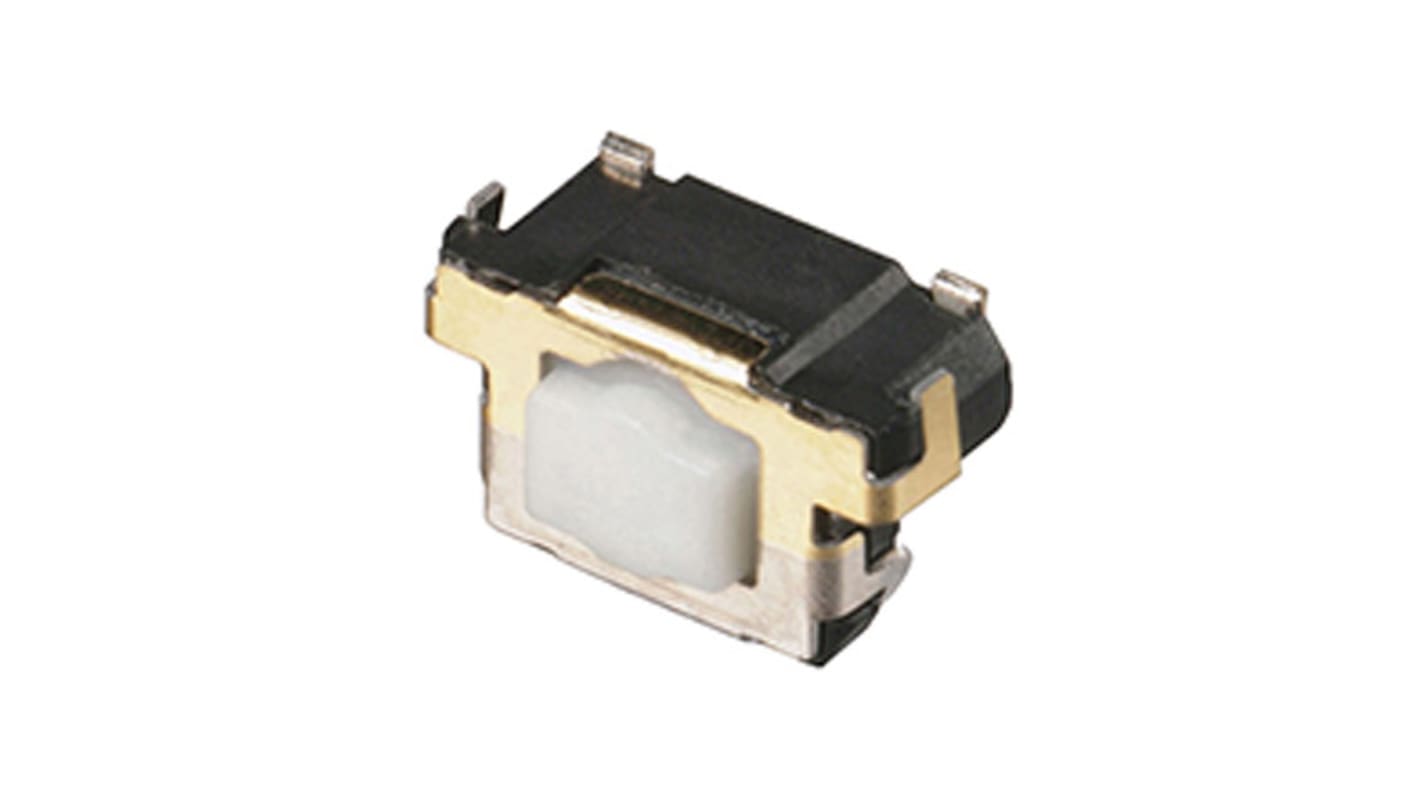

Panasonic Natural Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 2.6mm Edge Mount
- RS Stock No.:
- 125-0219
- Mfr. Part No.:
- EVQP46B3M
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 125-0219
- Mfr. Part No.:
- EVQP46B3M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Length | 2.6mm | |
| Actuator Colour | Natural | |
| Actuator Type | Push Plate | |
| Length | 6.2mm | |
| Width | 3mm | |
| Dimensions | 6.2 x 2.55 x 2.10mm | |
| Mounting Type | Edge Mount | |
| Contact Current Rating | 20 mA @ 15 V dc | |
| Height | 2.1mm | |
| Operating Force | 3.5 N | |
| Voltage Rating | 2 → 15V dc | |
| Mechanical Life | 200000Operations | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Length 2.6mm | ||
Actuator Colour Natural | ||
Actuator Type Push Plate | ||
Length 6.2mm | ||
Width 3mm | ||
Dimensions 6.2 x 2.55 x 2.10mm | ||
Mounting Type Edge Mount | ||
Contact Current Rating 20 mA @ 15 V dc | ||
Height 2.1mm | ||
Operating Force 3.5 N | ||
Voltage Rating 2 → 15V dc | ||
Mechanical Life 200000Operations | ||
Operating Temperature Range -40 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- JP
Panasonic EMT Tact Switches - EVP and EVQ Series
Panasonic Light Touch switches, commonly referred as Tactile or Tact switches, are momentary snap action switches to be used with small currents (rated at 20mA 15Vdc). These Tact Switches provide a unique sharp, clear and assuring click operating feel, have low contact resistance, small bouncing noise, high contact reliability and come in a wide selection of operating forces.
This EMT range of Tactile Switches have features that include options such as ultra thin profiles, small form factor, side mount versions, with or without ground terminal or positioning/fixing boss, long travel (stroke), over travel, as well as surface mount and J-bent terminal mounting options.
This EMT range of Tactile Switches have features that include options such as ultra thin profiles, small form factor, side mount versions, with or without ground terminal or positioning/fixing boss, long travel (stroke), over travel, as well as surface mount and J-bent terminal mounting options.
Tactile
