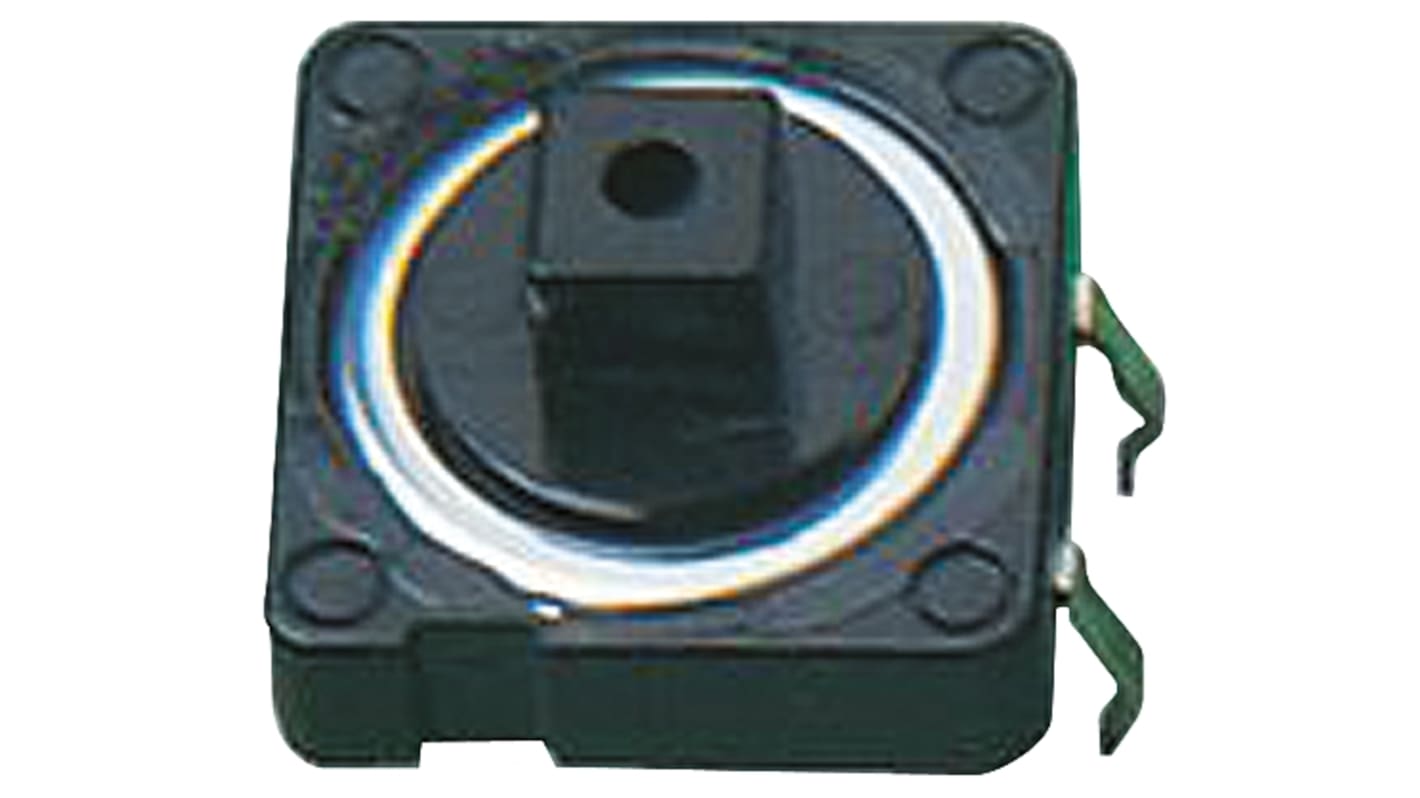

Alps Alpine Black Button Tactile Switch, SPST 5 mA @ 12 V dc 0.8mm Snap-In
- RS Stock No.:
- 119-2037
- Mfr. Part No.:
- SKHCBEA010
- Brand:
- Alps Alpine
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 119-2037
- Mfr. Part No.:
- SKHCBEA010
- Brand:
- Alps Alpine
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alps Alpine | |
| Contact Configuration | SPST | |
| Terminal Type | Through Hole | |
| Actuator Length | 0.8mm | |
| Actuator Colour | Black | |
| Actuator Type | Button | |
| Length | 12mm | |
| Width | 12mm | |
| Dimensions | 12 x 12mm | |
| Illuminated | No | |
| Mounting Type | Snap-In | |
| Contact Current Rating | 5 mA @ 12 V dc | |
| Voltage Rating | 12V dc | |
| Operating Force | 1.27 N | |
| Height | 7.3mm | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 °C → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 1000000Cycles | |
Select all | ||
|---|---|---|
Brand Alps Alpine | ||
Contact Configuration SPST | ||
Terminal Type Through Hole | ||
Actuator Length 0.8mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Length 12mm | ||
Width 12mm | ||
Dimensions 12 x 12mm | ||
Illuminated No | ||
Mounting Type Snap-In | ||
Contact Current Rating 5 mA @ 12 V dc | ||
Voltage Rating 12V dc | ||
Operating Force 1.27 N | ||
Height 7.3mm | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 °C → +85°C | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- JP
SKHC Series
The switches illustrated are two versions of the flat stem type , and are versions of the Joint stem type
Tactile switches (12x12x4.3) and a key-touch with sharp click feeling
Snap-in mounting type, contact point compatible with auto-dip
Snap-in mounting type, contact point compatible with auto-dip
Note also that the long stem version (SKHKAA) is not illustrated.
Note
These are designed for general-purpose use. If they are considered for use within high reliability applications - medical, security, etc - then suitable protection and/or redundancy circuitry should be provided in the interests of safety.
