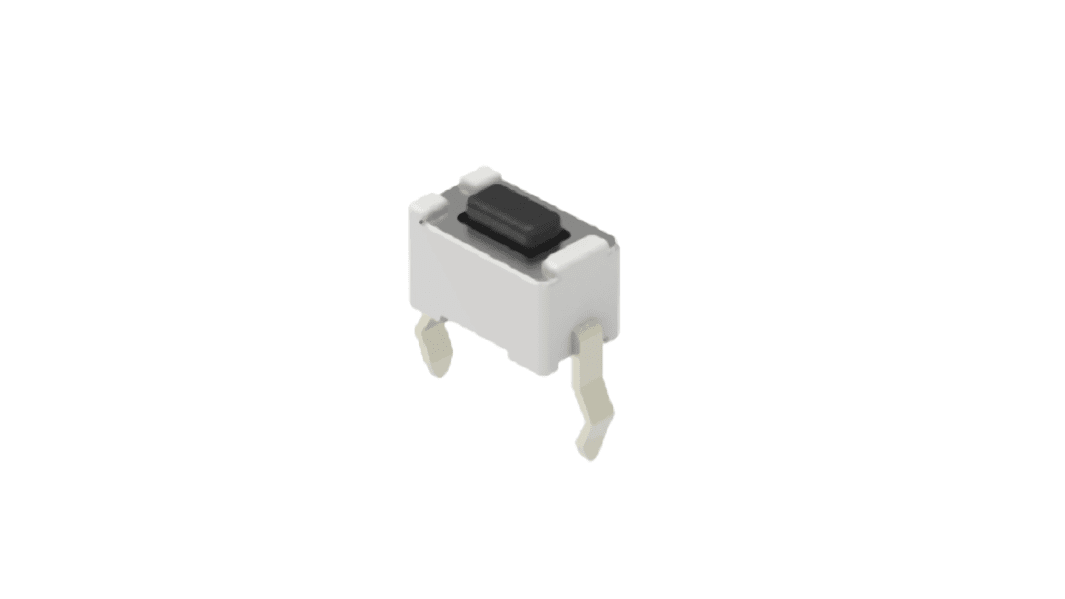

Black Button Tactile Switch, SPST 50 mA 0.8mm Snap-In
- RS Stock No.:
- 917-3804
- Mfr. Part No.:
- SKHLAAA010
- Brand:
- Alps Alpine
10 In stock - FREE next working day delivery available
140 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Bag of 10)
£0.534
(exc. VAT)
£0.641
(inc. VAT)
| Units | Per unit | Per Bag* |
| 10 - 40 | £0.534 | £5.34 |
| 50 + | £0.453 | £4.53 |
| *price indicative | ||
- RS Stock No.:
- 917-3804
- Mfr. Part No.:
- SKHLAAA010
- Brand:
- Alps Alpine
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps SKHL Series Tactile Switch
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 0.8mm |
| Actuator Colour | Black |
| Actuator Type | Button |
| Length | 6mm |
| Width | 3.5mm |
| Dimensions | 6 x 3.5 x 4.3mm |
| Illuminated | No |
| Mounting Type | Snap-In |
| Contact Current Rating | 50 mA |
| Voltage Rating | 12V dc |
| Operating Force | 0.98 N |
| Height | 4.3mm |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 50000Cycles |
| Operating Temperature Range | -40 → +90°C |
| Maximum Operating Temperature | +90°C |
