RAFI IP54 White Tactile Switch, 12 mm, 1 NO 100A, 35 V ac 35 V dc, PCB
- RS Stock No.:
- 553-948
- Mfr. Part No.:
- 1.14.012.920/0000
- Brand:
- RAFI
Subtotal (1 reel of 750 units)*
£2,134.36
(exc. VAT)
£2,561.23
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,134.36 | £2.846 |
*price indicative
- RS Stock No.:
- 553-948
- Mfr. Part No.:
- 1.14.012.920/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Contact Configuration | 1 NO | |
| Product Type | Tactile Switch | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Actuator Colour | White | |
| Actuator Length | 12mm | |
| Length | 12mm | |
| Width | 12mm | |
| Illuminated | No | |
| Contact AC Voltage | 35V ac | |
| Minimum Operating Temperature | -40°C | |
| Mount Type | PCB | |
| Contact DC Voltage | 35V dc | |
| Maximum Operating Temperature | 90°C | |
| Switch Contact Current | 100A | |
| Standards/Approvals | RoHS | |
| Series | 1.14.012.920/0000 | |
| IP Rating | IP54 | |
| Operating Force | 18N | |
| Height | 5.05mm | |
| Mechanical Life | 65000Cycles | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Contact Configuration 1 NO | ||
Product Type Tactile Switch | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Actuator Colour White | ||
Actuator Length 12mm | ||
Length 12mm | ||
Width 12mm | ||
Illuminated No | ||
Contact AC Voltage 35V ac | ||
Minimum Operating Temperature -40°C | ||
Mount Type PCB | ||
Contact DC Voltage 35V dc | ||
Maximum Operating Temperature 90°C | ||
Switch Contact Current 100A | ||
Standards/Approvals RoHS | ||
Series 1.14.012.920/0000 | ||
IP Rating IP54 | ||
Operating Force 18N | ||
Height 5.05mm | ||
Mechanical Life 65000Cycles | ||
- COO (Country of Origin):
- DE

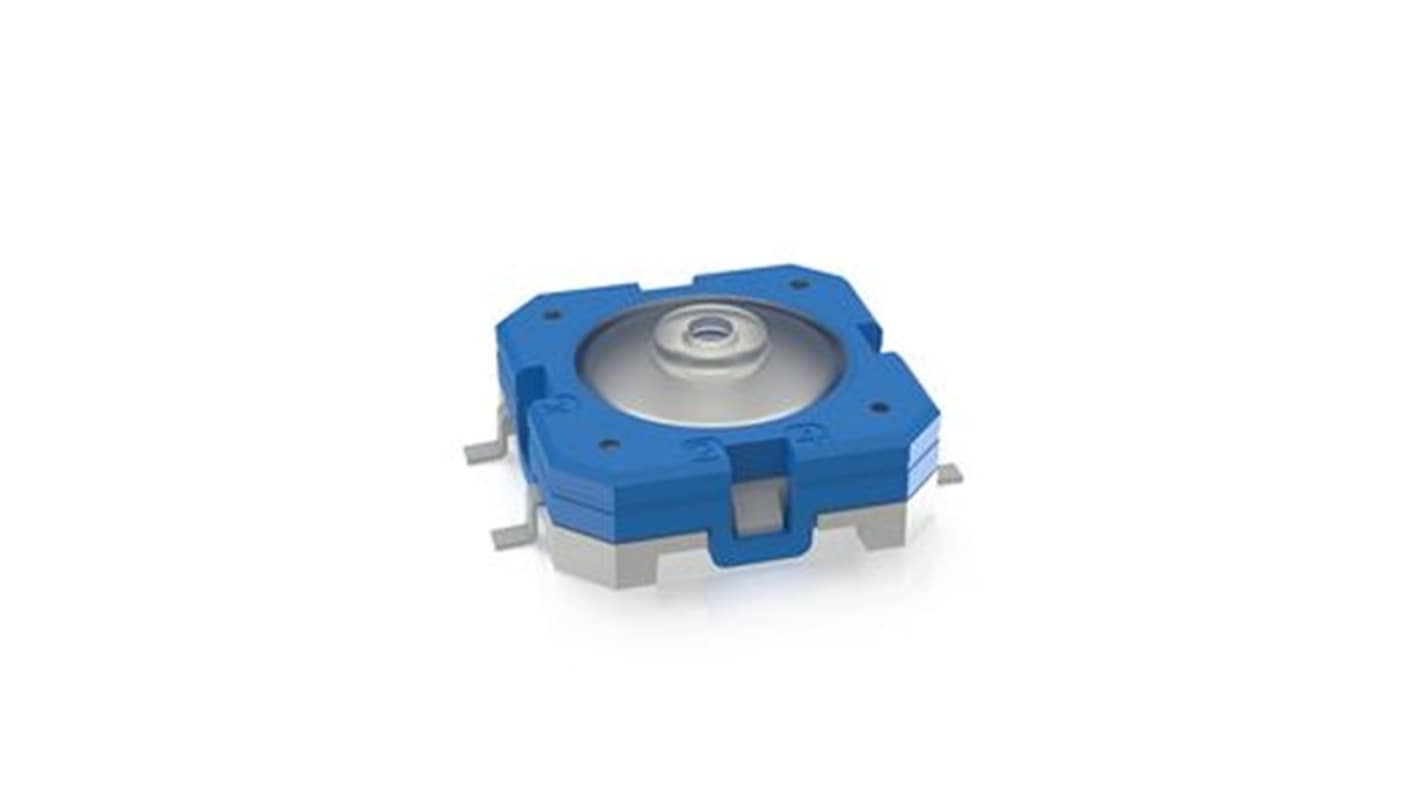

The RAFI RACON 12 S SMT 9.7 ± 2.5 N 1 NO is a high-quality tactile switch with dimensions of 12 x 12 mm featuring a distinct click high switching reliability a sealed contact system and cast ability. Widely used in automotive applications systems with keycaps and membrane keyboards RACON sets the standard in both THT and SMT versions.
Gold contacts reliable switching with low currents
Special tactile feedback
Different operating forces
Variable overall heights due to plunger
Terminal technology SMT or THT
Traceability through product identification
