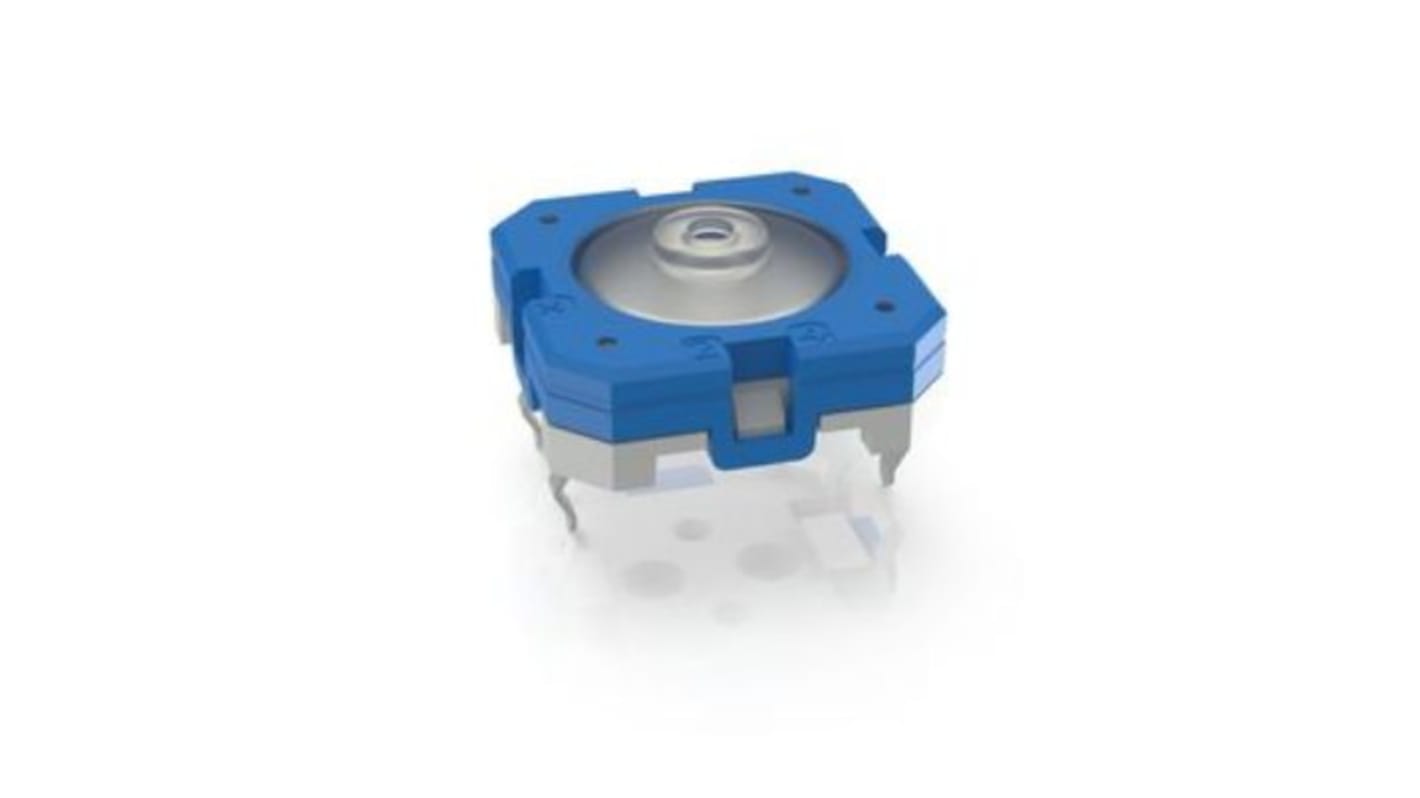

RAFI IP54 White Tactile Switch Tactile, 12 mm, 1 NO 100mA, PCB
- RS Stock No.:
- 271-9097
- Mfr. Part No.:
- 1.14.012.502/0000
- Brand:
- RAFI
Subtotal (1 unit)*
£1.28
(exc. VAT)
£1.54
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 450 unit(s) shipping from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.28 |
*price indicative
- RS Stock No.:
- 271-9097
- Mfr. Part No.:
- 1.14.012.502/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Product Type | Tactile Switch | |
| Contact Configuration | 1 NO | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Actuator Colour | White | |
| Length | 12mm | |
| Actuator Length | 12mm | |
| Width | 12mm | |
| Illuminated | No | |
| Actuator Style | Tactile | |
| Minimum Operating Temperature | -40°C | |
| Mount Type | PCB | |
| Maximum Operating Temperature | 90°C | |
| Switch Configuration | 1 NO | |
| Switch Contact Current | 100mA | |
| Series | RACON 12 | |
| Standards/Approvals | DIN EN 60068-2-58 | |
| IP Rating | IP54 | |
| Operating Force | 8N | |
| Height | 4.95mm | |
| Mechanical Life | 10000000Cycles | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Product Type Tactile Switch | ||
Contact Configuration 1 NO | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Actuator Colour White | ||
Length 12mm | ||
Actuator Length 12mm | ||
Width 12mm | ||
Illuminated No | ||
Actuator Style Tactile | ||
Minimum Operating Temperature -40°C | ||
Mount Type PCB | ||
Maximum Operating Temperature 90°C | ||
Switch Configuration 1 NO | ||
Switch Contact Current 100mA | ||
Series RACON 12 | ||
Standards/Approvals DIN EN 60068-2-58 | ||
IP Rating IP54 | ||
Operating Force 8N | ||
Height 4.95mm | ||
Mechanical Life 10000000Cycles | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The RAFI RACON 12 tactile switches can be arranged individually, in rows or as key blocks. When used beneath membrane overlays, the RACON key switches should be combined with plungers. Suitable for the most important soldering techniques.
Different operating forces
Traceability through product identification
Special tactile feedback
sealable
