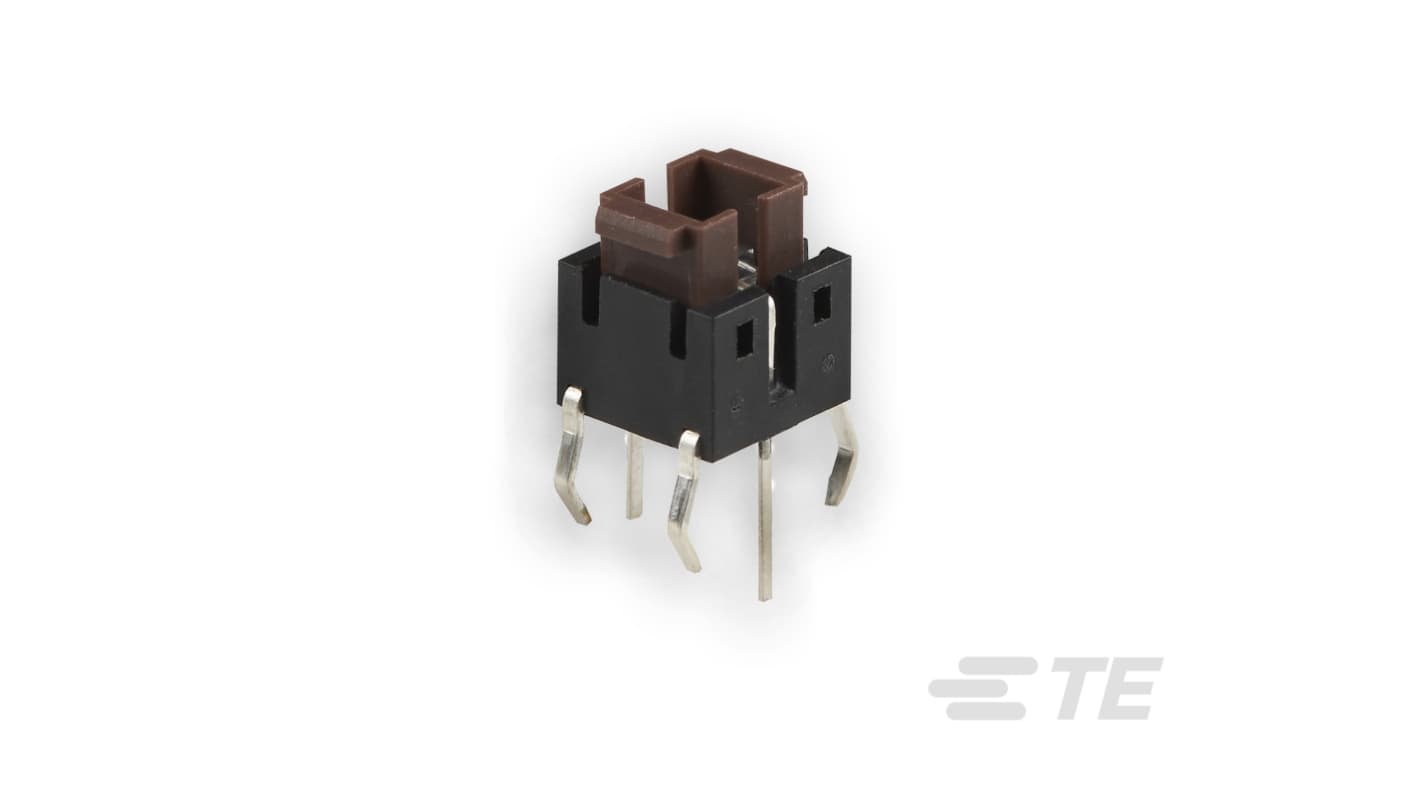

TE Connectivity Brown Tactile Switch Rectangular, SPST 50mA, Through Hole
- RS Stock No.:
- 478-360
- Distrelec Article No.:
- 304-61-314
- Mfr. Part No.:
- 2213818-5
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 478-360
- Distrelec Article No.:
- 304-61-314
- Mfr. Part No.:
- 2213818-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | On-Off | |
| Actuator Colour | Brown | |
| Actuator Style | Rectangular | |
| Actuator Orientation | Vertical | |
| Minimum Operating Temperature | -25°C | |
| Mount Type | Through Hole | |
| Switch Contact Current | 50mA | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | SPST | |
| Series | Alcoswitch FSMIJ | |
| Standards/Approvals | China RoHS 2 MIIT Order No 32, 2016 No Restricted Materials Above Threshold, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU, EU ELV 2000/53/EC | |
| Operating Force | 100g | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation On-Off | ||
Actuator Colour Brown | ||
Actuator Style Rectangular | ||
Actuator Orientation Vertical | ||
Minimum Operating Temperature -25°C | ||
Mount Type Through Hole | ||
Switch Contact Current 50mA | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration SPST | ||
Series Alcoswitch FSMIJ | ||
Standards/Approvals China RoHS 2 MIIT Order No 32, 2016 No Restricted Materials Above Threshold, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU, EU ELV 2000/53/EC | ||
Operating Force 100g | ||
- COO (Country of Origin):
- CN
The TE Connectivity 50 mA tactile switch is designed with a rectangular actuator that offers a reliable off (on) functionality. Crafted from premium brass and featuring silver contact plating, this component is built for durability and performance. Its compact design makes it suitable for a variety of applications, ranging from consumer electronics to industrial devices. With a vertical orientation and an actuator force of 100g, this switch provides a precise tactile feedback that enhances user experience. It operates seamlessly within a temperature range of -25°C to 70°C, ensuring optimal functionality in diverse environments. The switch is not process sealed, promoting ease of use in specific applications, while its through-hole solder termination method guarantees reliable connections in PCB installations.
Rectangular actuator style ensures comfortable operation
Single pole - single throw configuration simplifies circuit design
Vertical product orientation optimises space in device layouts
Brass contact base material enhances electrical conductivity
Silver plating improves overall reliability and reduces contact resistance
Wave solder capable termination method allows for efficient assembly
EU RoHS and ELV compliant, ensuring adherence to environmental regulations
Versatile operating temperature range suitable for various environments
Compatible with multiple Alcoswitch products, allowing for design flexibility
