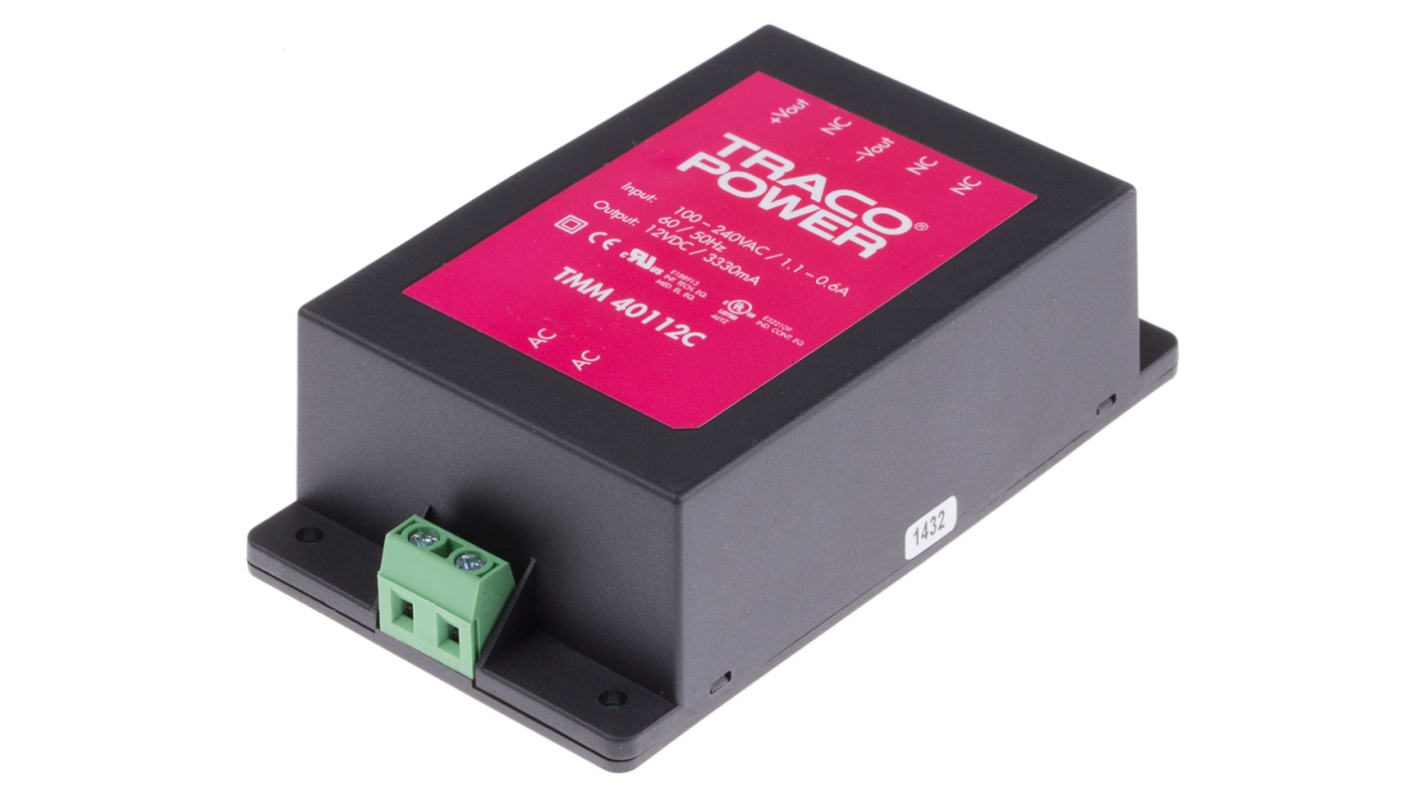

TRACOPOWER Embedded Switch Mode Power Supply SMPS, TMM 40112C, 12V dc, 3.33A, 40W, 1 Output, 85 → 264V ac Input

The Tracopower TMM series of ultra compact AC/DC power supplies come in a fully encapsulated plastic case. These power supplies feature the latest medical safety approvals (2 x MOPP), EMC characteristics and safety certifications for operation in industrial and residential environment, making them suitable for worldwide markets. The TMM series AC/DC modules offer a reliable solution for applications in commercial, medical and industrial electronic equipment and comply with the latest European ErP directive.

Fully encapsulated low profile plastic case
Medical safety to IEC/EN 60601-1 3rd-edition, 2 x MOPP
Extended operating temp. range -40°C to +60°C at full load
Ready to meet ErP directive ˂0.3W no load power consumption
PCB-moun version or chassis-mount version with DC-OK LED-indicator
Universal input 90–264 VAC, 47–440 Hz
Safety class II prepared
Active over-temperature protection
Short circuit and overload protection
3-year product warranty

IEC/EN 60950-1, UL 60950-1
IEC/EN 60601-1 3rd edition, 2 x MOPP
UL 60601-1, UL 508 for chassis mount version

CB certificate for IEC 60950-1
CB certificate for IEC 60601-1
UL/cUL 60950-1 / UL/cUL 60601-1

This embedded switch mode power supply from TRACOPOWER is a 40W solution with excellent technical specifications. Its chassis mount design makes it versatile for various applications, including medical settings. With high efficiency and robust safety features, this power supply is ideal for demanding environments.

• Encapsulated design for added safety and durability
• Medical approval for use in critical requirements
• Wide input voltage range from 85 to 264 V AC
• Overload, over-temperature, and short circuit protection for reliability

• Ideal for use in medical devices requiring high safety standards
• Suitable for IT and industrial settings due to compliance with industry regulations
• Can be used for transportation systems and commercial equipment demanding reliability

Yes, the power supply can accept input voltages from 85 to 264 V AC, making it versatile for different environments.

Yes, with an operating temperature range from -40°C to +80°C, this power supply ensures consistent performance even in extreme conditions.

Yes, it is medical approved and complies with the latest safety standards, making it reliable for medical applications.

Yes, this power supply includes protection mechanisms against overloads, over-temperature, and short circuits to ensure the safety of equipment.

Switch Mode - Traco, TMM Series
