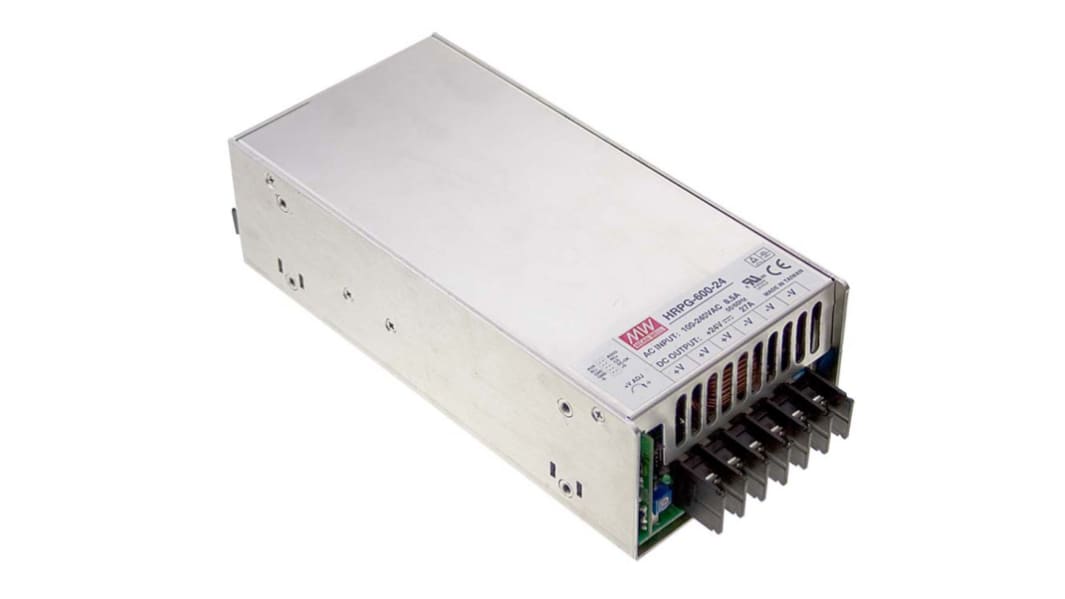

MEAN WELL Switching Power Supply, HRPG-600-7.5RS, 7.5V dc, 80A, 600W, 1 Output, 120 → 370 V dc, 85 → 264
- RS Stock No.:
- 705-9797
- Mfr. Part No.:
- HRPG-600-7.5RS
- Brand:
- MEAN WELL
Available to back order for despatch 11/11/2024
Price Each
£134.09
(exc. VAT)
£160.91
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £134.09 |
5 - 9 | £130.36 |
10 - 24 | £126.84 |
25 - 49 | £123.50 |
50 + | £120.33 |
- RS Stock No.:
- 705-9797
- Mfr. Part No.:
- HRPG-600-7.5RS
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
HRPG-600 Series Single Output Power Supply with PFC Function
High efficiency, long life and high reliability
No load power consumption <0.75W
Built-in active PFC function
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
No load power consumption <0.75W
Built-in active PFC function
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
Note
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Standards
UL60950-1, TUV EN60950-1
Approvals
UL/cUL recognised, TUV, CB
Specifications
Attribute | Value |
---|---|
Output Voltage | 7.5V dc |
Output Current | 80A |
Power Rating | 600W |
Number of Outputs | 1 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 218mm |
Width | 105mm |
Depth | 63.5mm |
Efficiency | 86% |
Minimum Temperature | -40°C |
Weight | 1.6kg |
Maximum Temperature | +70°C |
