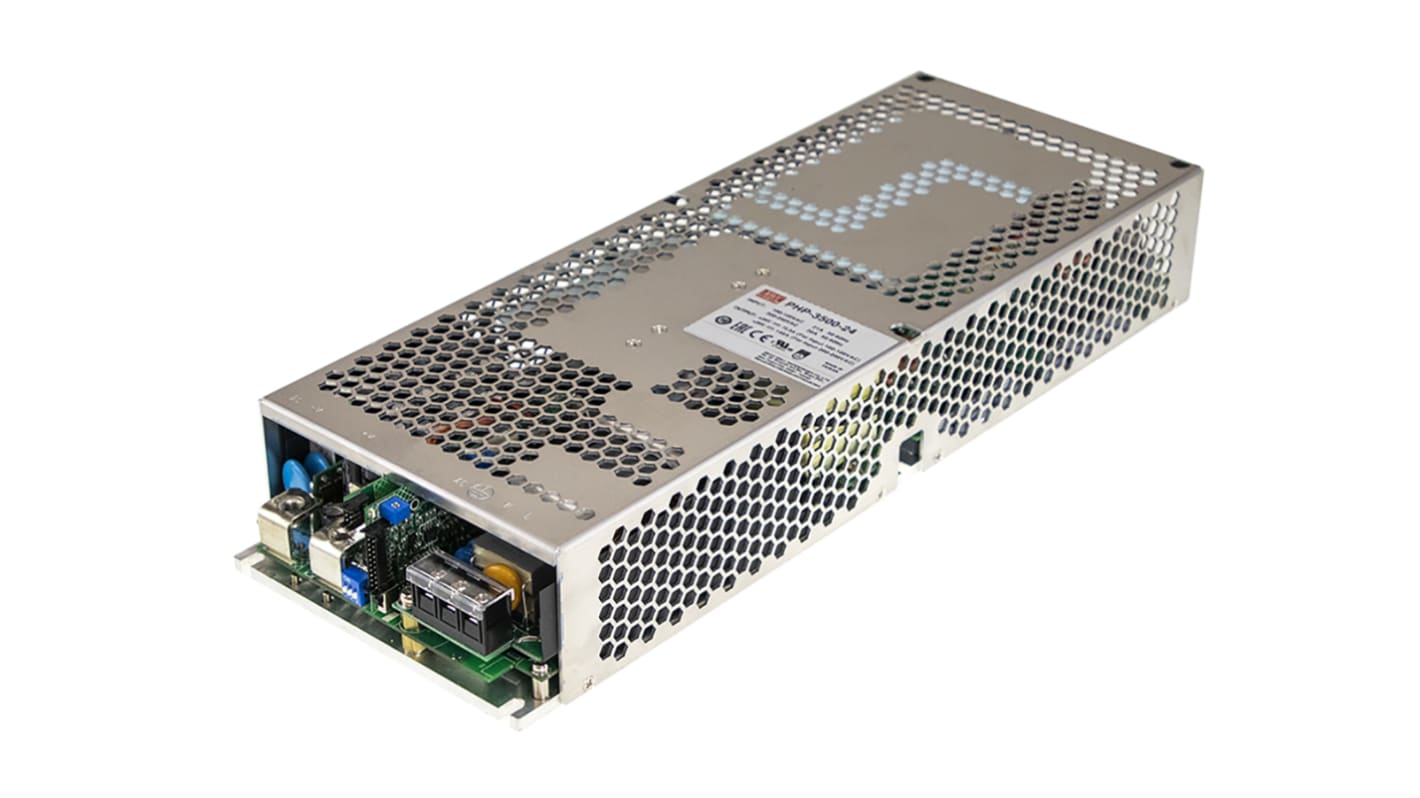

MEAN WELL Switching Power Supply, PHP-3500-48, 48V dc, 73A, 3.504kW, 1 Output, 127 → 370 V dc, 90 → 264 V
- RS Stock No.:
- 192-5278
- Distrelec Article No.:
- 302-30-027
- Mfr. Part No.:
- PHP-3500-48
- Brand:
- MEAN WELL
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 192-5278
- Distrelec Article No.:
- 302-30-027
- Mfr. Part No.:
- PHP-3500-48
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 48V dc | |
| Output Current | 73A | |
| Power Rating | 3.504kW | |
| Number of Outputs | 1 | |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac | |
| Package Type | Enclosed | |
| Length | 380mm | |
| Width | 141.4mm | |
| Depth | 60mm | |
| Efficiency | 96 (Typ.)% | |
| Series | PHP-3500 | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -30°C | |
| Weight | 4.5kg | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 48V dc | ||
Output Current 73A | ||
Power Rating 3.504kW | ||
Number of Outputs 1 | ||
Input Voltage 127 → 370 V dc, 90 → 264 V ac | ||
Package Type Enclosed | ||
Length 380mm | ||
Width 141.4mm | ||
Depth 60mm | ||
Efficiency 96 (Typ.)% | ||
Series PHP-3500 | ||
Maximum Temperature +70°C | ||
Minimum Temperature -30°C | ||
Weight 4.5kg | ||
- COO (Country of Origin):
- TW
AC-DC Single output enclosed power supply with PFC, Output 48VDC at 73A, remote ON/OFF, Water-cooled heat dissipation, DC OK signal, protocol PMBus
Slim and Low profile (60mm)
Fanless design, cooling by water conduction
Built-in active PFC function
-30∼+70°C working temperature
Built-in PMBus communication protocol, CANbus optional
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage/ Over temperature
Built-in remote ON-OFF control
DC OK active signal
Optional cold plate for quick implementation
LED indicator for power on
High efficiency up to 96%
Active current sharing up to 14000W (3+1)
5 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Fanless design, cooling by water conduction
Built-in active PFC function
-30∼+70°C working temperature
Built-in PMBus communication protocol, CANbus optional
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage/ Over temperature
Built-in remote ON-OFF control
DC OK active signal
Optional cold plate for quick implementation
LED indicator for power on
High efficiency up to 96%
Active current sharing up to 14000W (3+1)
5 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
