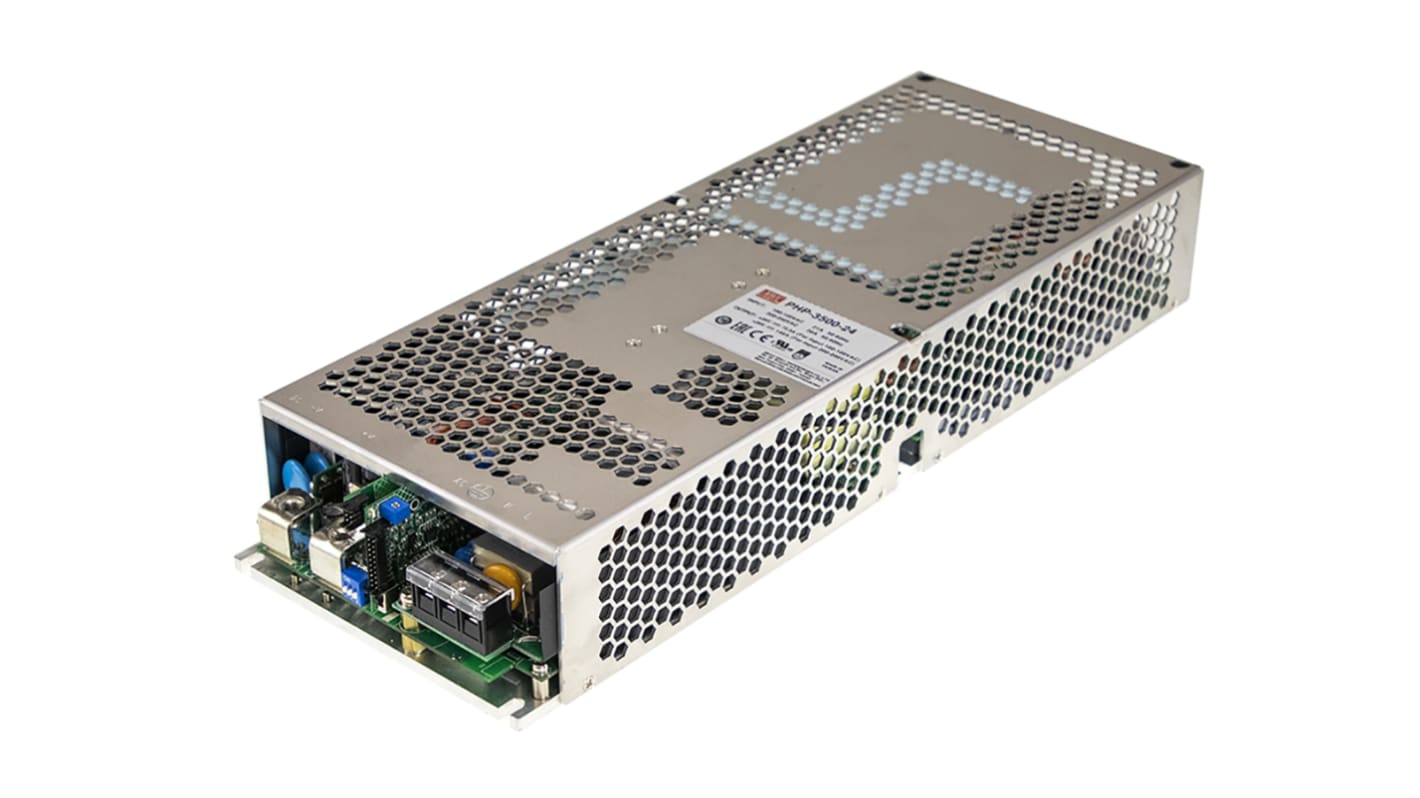

MEAN WELL Switching Power Supply, PHP-3500-24, 24V dc, 145A, 3.48kW, 1 Output, 127 → 370 V dc, 90 → 264 V
- RS Stock No.:
- 192-5277
- Distrelec Article No.:
- 302-30-026
- Mfr. Part No.:
- PHP-3500-24
- Brand:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
£1,075.82
(exc. VAT)
£1,290.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £1,075.82 |
5 - 9 | £1,043.54 |
10 - 24 | £1,011.27 |
25 - 49 | £978.99 |
50 + | £946.72 |
*price indicative
- RS Stock No.:
- 192-5277
- Distrelec Article No.:
- 302-30-026
- Mfr. Part No.:
- PHP-3500-24
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 24V dc | |
Output Current | 145A | |
Power Rating | 3.48kW | |
Number of Outputs | 1 | |
Input Voltage | 127 → 370 V dc, 90 → 264 V ac | |
Package Type | Enclosed | |
Length | 380mm | |
Width | 141.4mm | |
Depth | 60mm | |
Series | PHP-3500 | |
Efficiency | 95 (Typ.)% | |
Maximum Temperature | +70°C | |
Minimum Temperature | -30°C | |
Weight | 4.5kg | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 24V dc | ||
Output Current 145A | ||
Power Rating 3.48kW | ||
Number of Outputs 1 | ||
Input Voltage 127 → 370 V dc, 90 → 264 V ac | ||
Package Type Enclosed | ||
Length 380mm | ||
Width 141.4mm | ||
Depth 60mm | ||
Series PHP-3500 | ||
Efficiency 95 (Typ.)% | ||
Maximum Temperature +70°C | ||
Minimum Temperature -30°C | ||
Weight 4.5kg | ||
- COO (Country of Origin):
- TW
AC-DC Single output enclosed power supply with PFC, Output 24VDC at 145A, remote ON/OFF, Water-cooled heat dissipation, DC OK signal, protocol PMBus
Slim and Low profile (60mm)
Fanless design, cooling by water conduction
Built-in active PFC function
-30∼+70°C working temperature
Built-in PMBus communication protocol, CANbus optional
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage/ Over temperature
Built-in remote ON-OFF control
DC OK active signal
Optional cold plate for quick implementation
LED indicator for power on
High efficiency up to 96%
Active current sharing up to 14000W (3+1)
5 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Fanless design, cooling by water conduction
Built-in active PFC function
-30∼+70°C working temperature
Built-in PMBus communication protocol, CANbus optional
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage/ Over temperature
Built-in remote ON-OFF control
DC OK active signal
Optional cold plate for quick implementation
LED indicator for power on
High efficiency up to 96%
Active current sharing up to 14000W (3+1)
5 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
