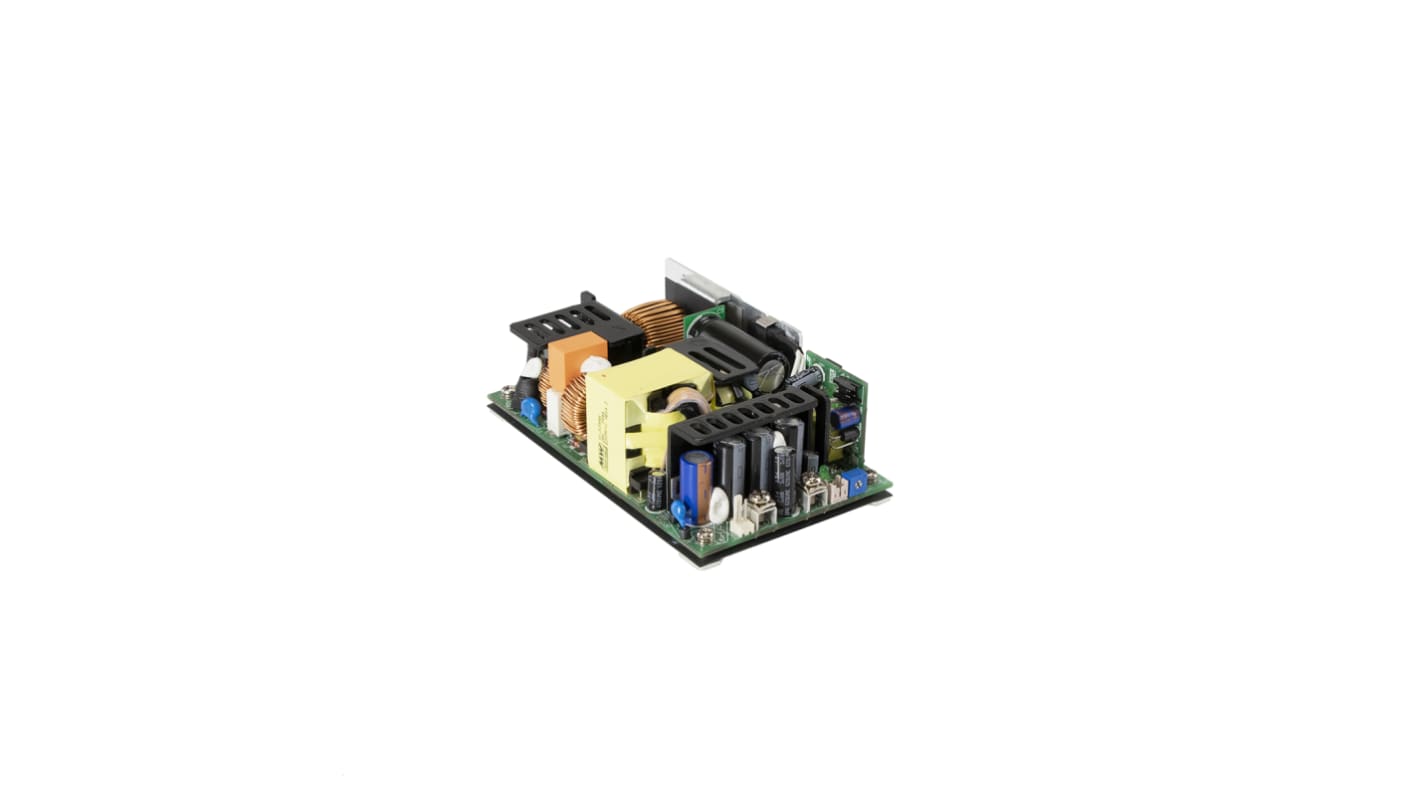

MEAN WELL Switching Power Supply, EPP-500-48, 48V dc, 6.7A, 321.6 (Convection) W, 499.2 (25CFM) W, 1 Output, 113
- RS Stock No.:
- 192-4071
- Distrelec Article No.:
- 303-72-354
- Mfr. Part No.:
- EPP-500-48
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£70.98
(exc. VAT)
£85.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 104 unit(s) ready to ship
- Plus 22 unit(s) shipping from 03 October 2025
- Plus 25 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £70.98 |
*price indicative
- RS Stock No.:
- 192-4071
- Distrelec Article No.:
- 303-72-354
- Mfr. Part No.:
- EPP-500-48
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 48V dc | |
Output Current | 6.7 A, 10.4A | |
Power Rating | 321.6 (Convection) W, 499.2 (25CFM) W | |
Number of Outputs | 1 | |
Input Voltage | 113 → 370 V dc, 80 → 264 V ac | |
Package Type | Open Frame | |
Length | 127mm | |
Width | 76.2mm | |
Depth | 40mm | |
Efficiency | 94 (Typ.)% | |
Series | EPP-500 | |
Weight | 460g | |
Maximum Temperature | +70°C | |
Minimum Temperature | -30°C | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 48V dc | ||
Output Current 6.7 A, 10.4A | ||
Power Rating 321.6 (Convection) W, 499.2 (25CFM) W | ||
Number of Outputs 1 | ||
Input Voltage 113 → 370 V dc, 80 → 264 V ac | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 76.2mm | ||
Depth 40mm | ||
Efficiency 94 (Typ.)% | ||
Series EPP-500 | ||
Weight 460g | ||
Maximum Temperature +70°C | ||
Minimum Temperature -30°C | ||
- COO (Country of Origin):
- CN
AC-DC Single output Open frame power supply with PFC, Output 48Vdc at 10.4A
5"x3" compact size
320W convection,500W force air
550W peak power (3sec.)
EMI for both Class I & Class II configuration
-30∼+70°C wide range operating temperature
No load power consumption<0.5W by PS_ON control
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage /Over temperature
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
Operating altitude up to 5000 meters (Note.5)
LED indicator for power on
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
320W convection,500W force air
550W peak power (3sec.)
EMI for both Class I & Class II configuration
-30∼+70°C wide range operating temperature
No load power consumption<0.5W by PS_ON control
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage /Over temperature
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
Operating altitude up to 5000 meters (Note.5)
LED indicator for power on
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
