RS PRO Switching Power Supply 48V dc, 4.2 A, 200 W, Input 85V ac to 264V ac
- RS Stock No.:
- 161-8223
- Distrelec Article No.:
- 304-05-331
- Brand:
- RS PRO
Discontinued
- RS Stock No.:
- 161-8223
- Distrelec Article No.:
- 304-05-331
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 200W | |
| Minimum Operating Temperature | -25°C | |
| SMPS Output Current | 4.2 A | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Weight | 11.4kg | |
| Depth | 50mm | |
| Length | 199mm | |
| Width | 99 mm | |
| Efficiency | 87.5% | |
| Maximum Input Voltage | 264V ac | |
| Output Current | 4.2A | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 200W | ||
Minimum Operating Temperature -25°C | ||
SMPS Output Current 4.2 A | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Weight 11.4kg | ||
Depth 50mm | ||
Length 199mm | ||
Width 99 mm | ||
Efficiency 87.5% | ||
Maximum Input Voltage 264V ac | ||
Output Current 4.2A | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN

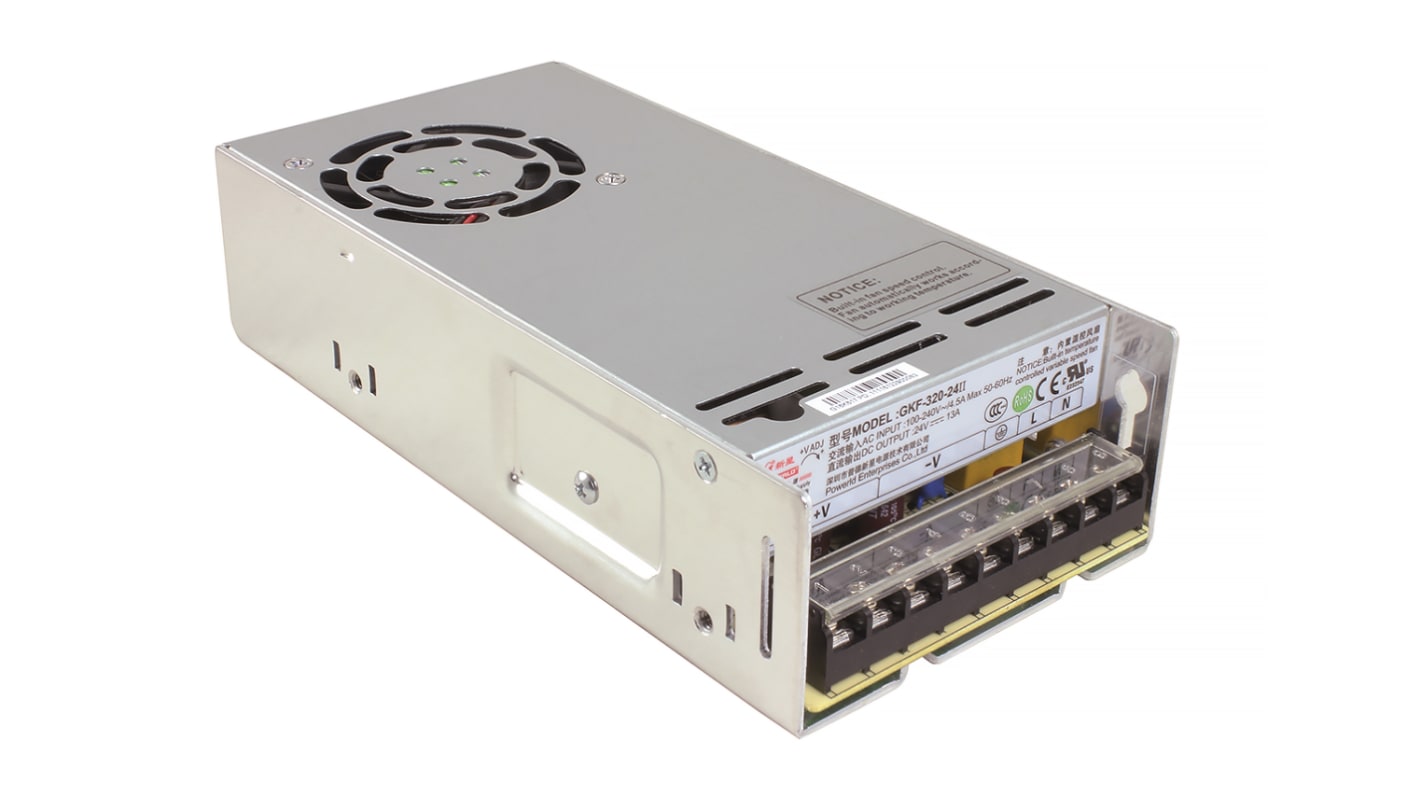

RS Pro Switch Mode Power Supplies are enclosed in a vented metal casing with easy access screw terminals for simple installation.
High efficiency, long life and high reliability
Miniature size, high power density
Easy installlation - screw terminals
Harmonic current compliance to EN 61000-3-14
