RS PRO Switching Power Supply, 5V dc, 40A, 200W, 1 Output, 120 → 370 V dc, 85 → 264 V ac Input Voltage
- RS Stock No.:
- 161-8218
- Brand:
- RS PRO
Available to back order for despatch when stock is available
Added
Price Each
£80.02
(exc. VAT)
£96.02
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £80.02 |
| 5 - 9 | £77.62 |
| 10 - 24 | £75.22 |
| 25 - 49 | £72.82 |
| 50 + | £70.42 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 161-8218
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

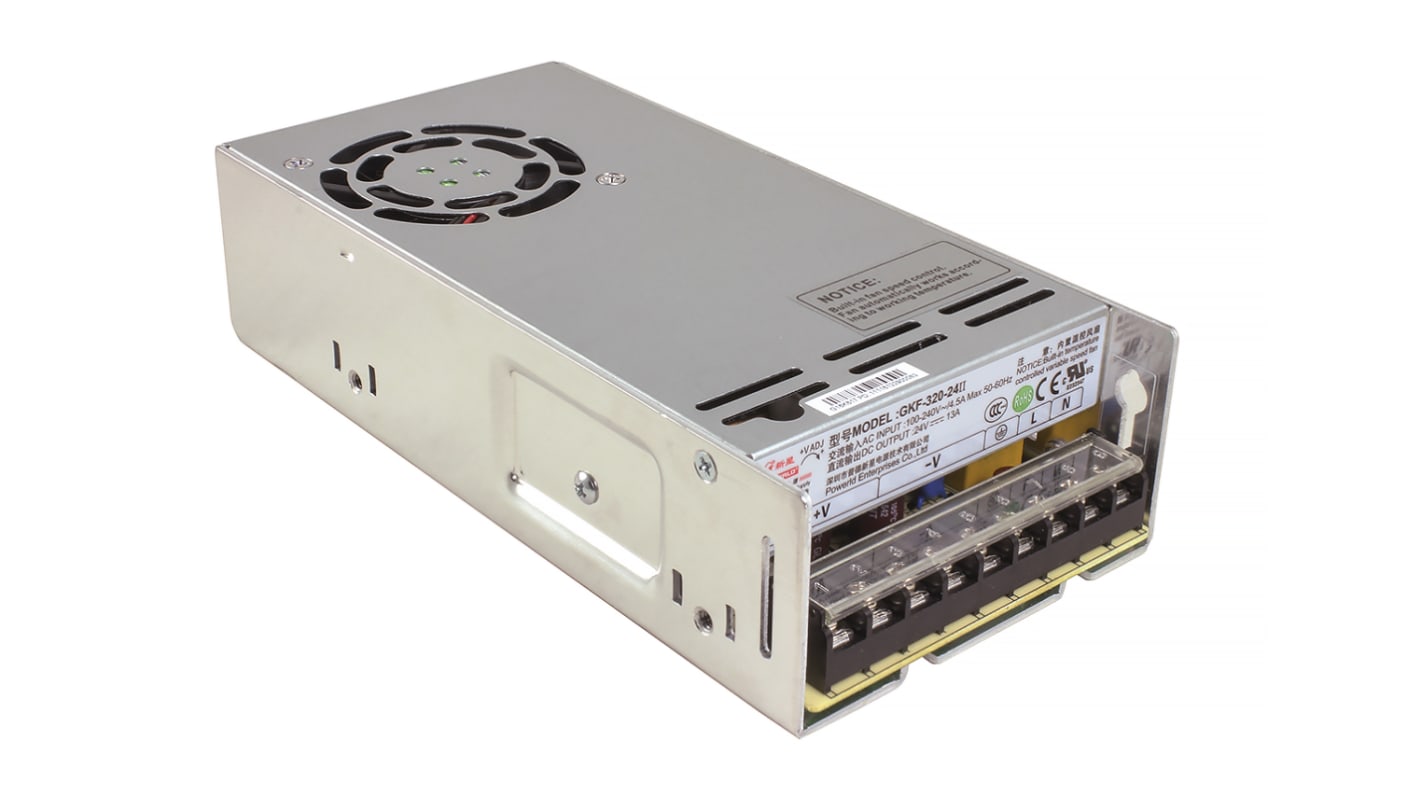

RS Pro Switch Mode Power Supplies are enclosed in a vented metal casing with easy access screw terminals for simple installation.
High efficiency, long life and high reliability
Miniature size, high power density
Easy installlation - screw terminals
Harmonic current compliance to EN 61000-3-10
Miniature size, high power density
Easy installlation - screw terminals
Harmonic current compliance to EN 61000-3-10
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Output Current | 40A |
| Power Rating | 200W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 199mm |
| Width | 99mm |
| Depth | 50mm |
| Efficiency | 79% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
