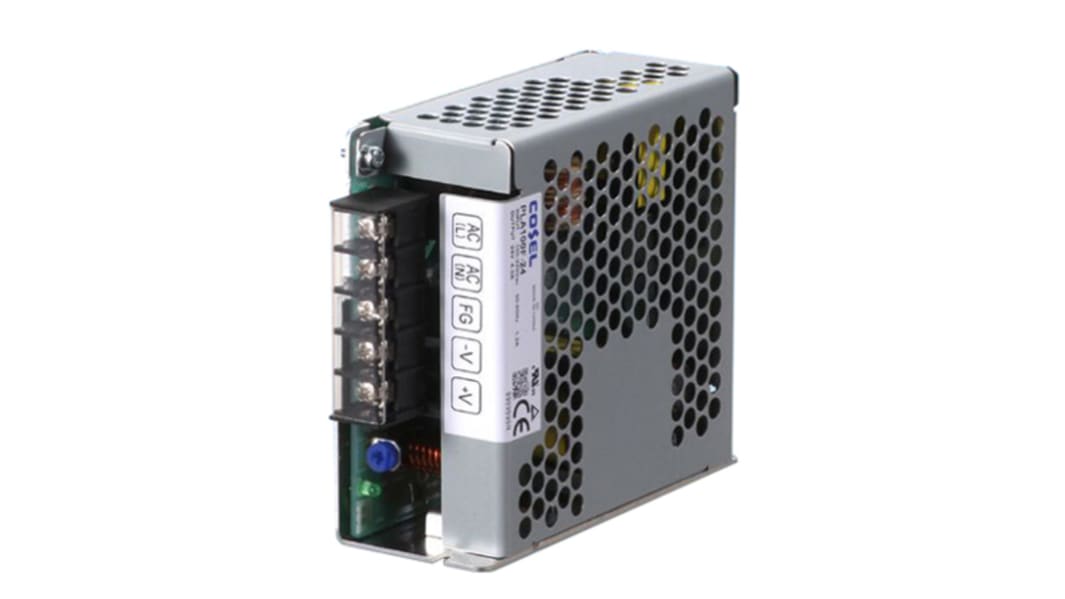

Cosel Switching Power Supply, PJA100F-24, 24V dc, 4.3A, 103W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 132-7428
- Mfr. Part No.:
- PJA100F-24
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£43.38
(exc. VAT)
£52.06
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
---|---|
1 - 4 | £43.38 |
5 - 9 | £42.08 |
10 - 24 | £41.21 |
25 - 49 | £40.35 |
50 + | £39.47 |
*price indicative
- RS Stock No.:
- 132-7428
- Mfr. Part No.:
- PJA100F-24
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Cosel | |
Output Voltage | 24V dc | |
Output Current | 4.3A | |
Power Rating | 103W | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264V ac | |
Mounting Type | Chassis Mount | |
Package Type | Enclosed | |
Length | 41mm | |
Width | 109mm | |
Depth | 97mm | |
Efficiency | 88% | |
Maximum Temperature | +70°C | |
Minimum Temperature | -20°C | |
Weight | 500g | |
Select all | ||
---|---|---|
Brand Cosel | ||
Output Voltage 24V dc | ||
Output Current 4.3A | ||
Power Rating 103W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 41mm | ||
Width 109mm | ||
Depth 97mm | ||
Efficiency 88% | ||
Maximum Temperature +70°C | ||
Minimum Temperature -20°C | ||
Weight 500g | ||
- COO (Country of Origin):
- CN
Cosel PJA Series - Closed Frame
The PJA Series of Cosel Power Supplies. Models come in various specifications. Cosel Power Supplies are highly efficient and reliable but stress to the units may result in twisting or bending and the subsequent defect of the unit, so handle with care. Various connection interface options are available. 5 Year Warranty
Features and Benefits
• Economical design
• Wide temperature range (-20℃ to +70℃, Derating is required)
• Harmonic attenuator (Complies with IEC61000-3-2 Class A)
• Low power consumption (1.5 W typ AC240 Vin at no load)
• 25% smaller than the PBA Series
• Low profile design
• PJA100F,150F (1U size)
• PJA600F (2U size)
• Optional connector (Vertical terminal block, Header connector)
• Complies with SEMI F-47
• Universal input (AC85-264 V, Derating is required)
• 5 Year Warranty
• Wide temperature range (-20℃ to +70℃, Derating is required)
• Harmonic attenuator (Complies with IEC61000-3-2 Class A)
• Low power consumption (1.5 W typ AC240 Vin at no load)
• 25% smaller than the PBA Series
• Low profile design
• PJA100F,150F (1U size)
• PJA600F (2U size)
• Optional connector (Vertical terminal block, Header connector)
• Complies with SEMI F-47
• Universal input (AC85-264 V, Derating is required)
• 5 Year Warranty
Switch Mode - Cosel Closed Frame
