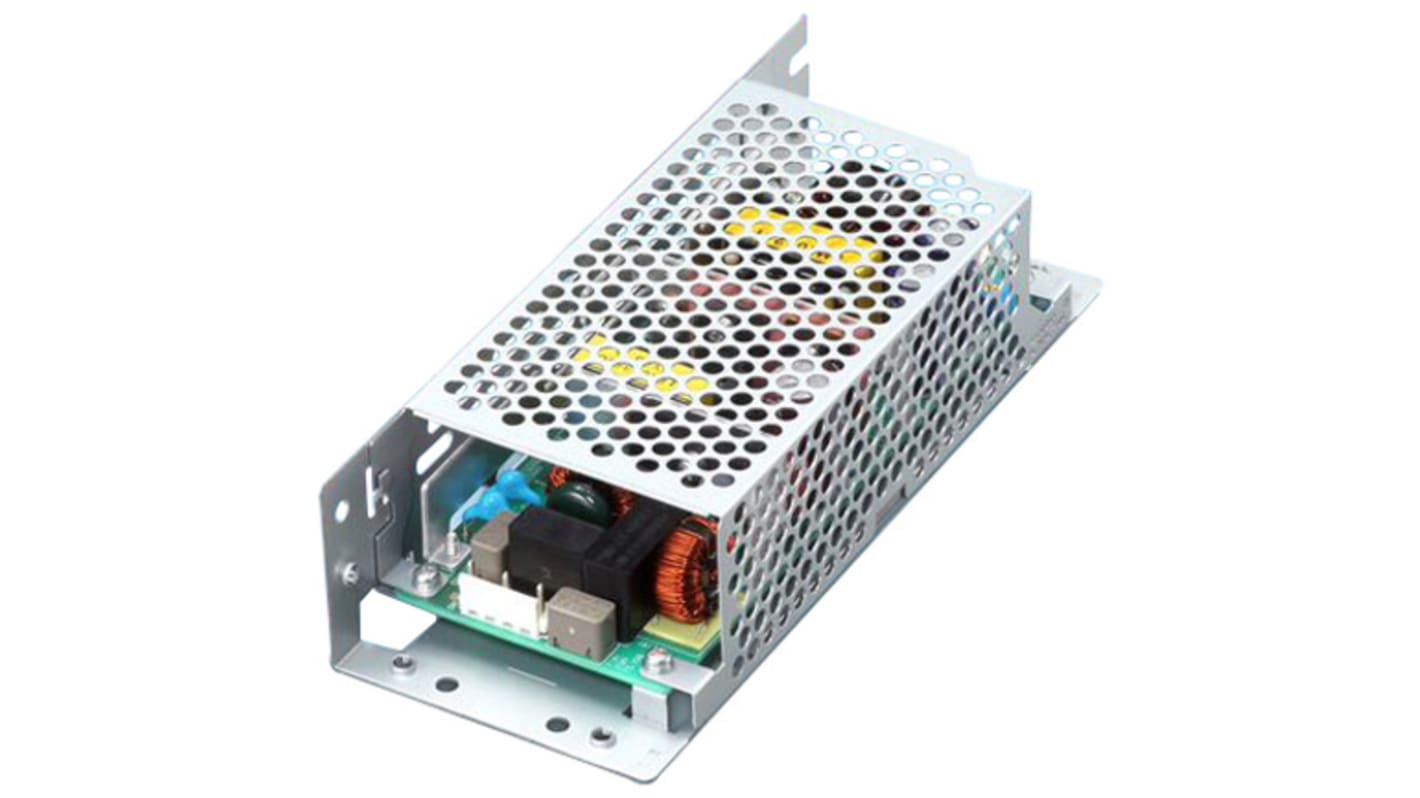

Cosel Switching Power Supply, LMA100F-24-SNY 24V dc, 4.3A, 103 W, Input 85V ac to 264V ac

RS Stock No.:: 131-1949
Mfr. Part No.:: LMA100F-24-SNY
Brand:: Cosel

Cosel Switching Power Supply, LMA100F-24-SNY 24V dc, 4.3A, 103 W, Input 85V ac to 264V ac

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£64.86

(exc. VAT)

£77.83

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 21 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£64.86
5 - 9	£62.92
10 - 24	£61.62
25 - 49	£60.32
50 +	£59.02

*price indicative

RS Stock No.:: 131-1949
Mfr. Part No.:: LMA100F-24-SNY
Brand:: Cosel

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Cosel
	Product Type	Switching Power Supply
	Maximum Output Voltage	24V dc
	Number of Outputs	1
	Mount Type	Chassis
	Power	103W
	Minimum Operating Temperature	-10°C
	SMPS Output Current	4.3A
	Maximum Operating Temperature	70°C
	Weight	470g
	Length	185mm
	Standards/Approvals	CE, cURus, UL, RoHS
	Depth	45mm
	Width	72mm
	Efficiency	85%
	Maximum Input Voltage	264V ac
	Series	LMA100F
	Minimum Input Voltage	85V ac
	Output Current	4.3A
	Hazardous Area Certification	No

	Select all
	Brand Cosel
	Product Type Switching Power Supply
	Maximum Output Voltage 24V dc
	Number of Outputs 1
	Mount Type Chassis
	Power 103W
	Minimum Operating Temperature -10°C
	SMPS Output Current 4.3A
	Maximum Operating Temperature 70°C
	Weight 470g
	Length 185mm
	Standards/Approvals CE, cURus, UL, RoHS
	Depth 45mm
	Width 72mm
	Efficiency 85%
	Maximum Input Voltage 264V ac
	Series LMA100F
	Minimum Input Voltage 85V ac
	Output Current 4.3A
	Hazardous Area Certification No

Datasheet

COO (Country of Origin):: JP

Cosel LMA Series - Closed Frame

The LMA Series of Cosel Power Supplies. Models come in a various specifications. These power supplies are highly reliable, but the stress to P.C.B, such as twisting or bending may cause defect to the unit, so handle the with care.

Features and Benefits

• Small and compact PCB construction

• Size dimensions compatible with LFA series, global input Rugged PCB type P.S.

• Peak Current Function (Option -H)

• Harmonic attenuator (Complies with IEC61000-3-2 Class A)

• Universal input (AC85 – 264 V)

• Remote ON/OFF control (Optional -R2) reducing standby power

• Built-in inrush current, overcurrent and overvoltage protection circuits

• Built in power factor correction circuitry for decreased AC input capacity

• 5 Year Warranty

Switch Mode - Cosel Closed Frame
