Cosel, LMA100F-24-Y Switching Power Supply 24V dc, 103 W 264V ac
- RS Stock No.:
- 131-1781
- Mfr. Part No.:
- LMA100F-24-Y
- Brand:
- Cosel
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£51.90
(exc. VAT)
£62.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £51.90 |
| 5 - 9 | £50.35 |
| 10 - 24 | £49.31 |
| 25 - 49 | £48.27 |
| 50 + | £47.23 |
*price indicative
- RS Stock No.:
- 131-1781
- Mfr. Part No.:
- LMA100F-24-Y
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 103W | |
| SMPS Output Current | 4.3A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 62mm | |
| Standards/Approvals | RoHS, cURus, CE, UL | |
| Depth | 30mm | |
| Length | 155mm | |
| Weight | 290g | |
| Series | LMA100F | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 85% | |
| Hazardous Area Certification | No | |
| Output Current | 4.3A | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 103W | ||
SMPS Output Current 4.3A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Width 62mm | ||
Standards/Approvals RoHS, cURus, CE, UL | ||
Depth 30mm | ||
Length 155mm | ||
Weight 290g | ||
Series LMA100F | ||
Maximum Input Voltage 264V ac | ||
Efficiency 85% | ||
Hazardous Area Certification No | ||
Output Current 4.3A | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- JP

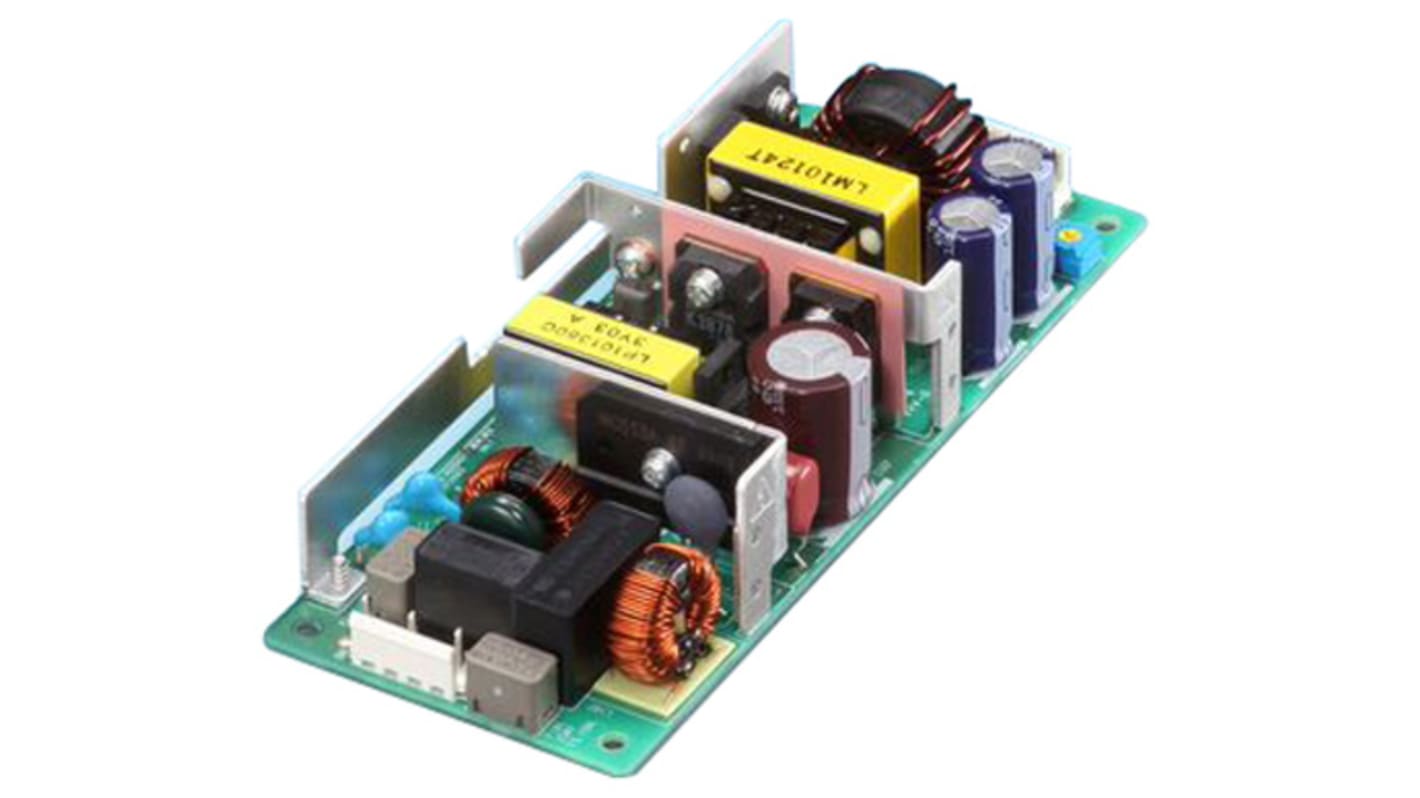

Cosel LMA Series - Open Frame
The LFA series of Cosel Power Supplies. Models come in a variety of specifications. All Power supplies are open frame and come with a universal input. These power supplies are highly reliable, but the stress to P.C.B, such as twisting or bending may cause the defect of the unit, so handle with care. 5 Year Warranty
Features and Benefits
• Small and compact PCB construction
• Size dimensions compatible with LFA series, global input Rugged PCB type P.S.
• Peak Current Function (Option -H)
• Harmonic attenuator (Complies with IEC61000-3-2 Class A)
• Universal input (AC85 – 264 V)
• Remote ON/OFF control (Optional -R2) reducing standby power
• Built-in inrush current, overcurrent and overvoltage protection circuits
• Built in power factor correction circuitry for decreased AC input capacity
• 5 Year Warranty
Switch Mode Cosel Open Frame
