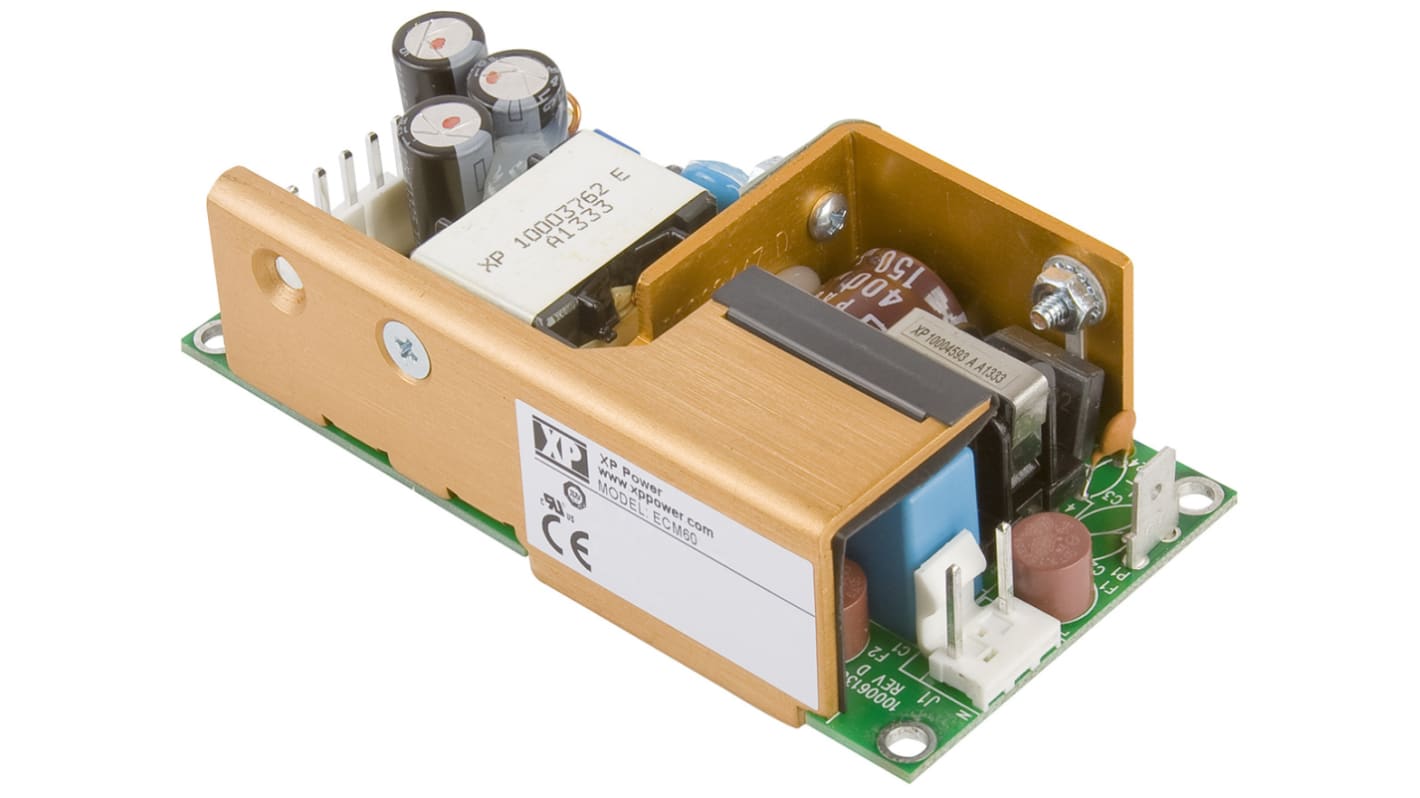

XP Power Switching Power Supply, ECM60US07 7V dc, 8.6 A, 60 W, Input 120 V dc, 90V ac to 264V ac

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£54.49

(exc. VAT)

£65.39

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 - 4£54.49
5 - 9£52.85
10 - 24£51.21
25 - 49£49.59
50 +£47.95

*price indicative

RS Stock No.:
122-7079
Distrelec Article No.:
302-41-461
Mfr. Part No.:
ECM60US07
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

Switching Power Supply

Maximum Output Voltage

7V dc

Number of Outputs

1

Mount Type

Chassis

Power

60W

Minimum Operating Temperature

0°C

SMPS Output Current

8.6 A

Maximum Operating Temperature

70°C

Length

101.6mm

Depth

27mm

Standards/Approvals

EN 60601-1, UL 60950-1, FCC 20780, EN 61204-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 61000-3-2, EN 60950-1, EN 60601-1-2, EN 55022 & EN 55011, CSA-22.2 No.60601-1 per cUL, ANSI/AAMI ES 60601-1

Weight

150g

Width

50.8 mm

Maximum Input Voltage

264V ac

Efficiency

85%

Series

ECM

Hazardous Area Certification

No

Minimum Input Voltage

120, 90V dc

Output Current

8.6A

XP Power - ECM60 Series of AC-DC Power Supplies


The ECM60 series from XP Power offers an excellent range of open frame, 60 W power supplies, all of which are IT and medically approved. These highly reliable, compact power supplies all feature either a class I or class II construction. The range is convection-cooled and has an operating temperature from 0 °C to +70 °C Operating temperature.

Open frame, 60 W power supplies

80-85% Efficiency

IT and medically approved

Class I and Class II construction

DC Input version available (DCM series)

3 year warranty
