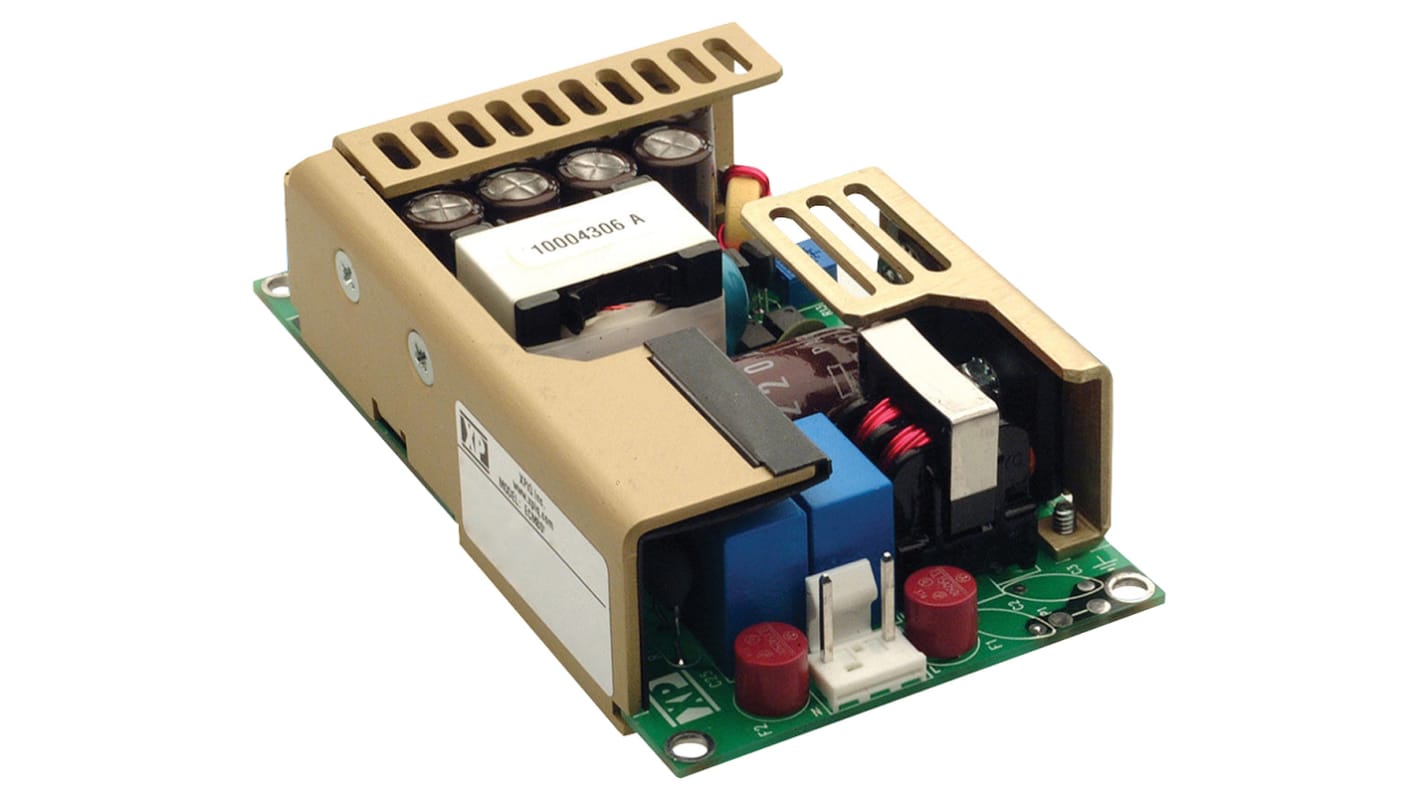

XP Power Switching Power Supply, ECM100US07 7V dc, 14.3 A, 100 W, Input 120 V dc, 90V ac to 264V ac
- RS Stock No.:
- 122-7042
- Distrelec Article No.:
- 302-41-452
- Mfr. Part No.:
- ECM100US07
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£81.74
(exc. VAT)
£98.09
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £81.74 |
| 5 - 9 | £79.29 |
| 10 - 24 | £76.83 |
| 25 - 49 | £74.38 |
| 50 + | £71.94 |
*price indicative
- RS Stock No.:
- 122-7042
- Distrelec Article No.:
- 302-41-452
- Mfr. Part No.:
- ECM100US07
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 7V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 100W | |
| Minimum Operating Temperature | 0°C | |
| SMPS Output Current | 14.3 A | |
| Maximum Operating Temperature | 70°C | |
| Weight | 180g | |
| Depth | 27mm | |
| Width | 63.5 mm | |
| Length | 114.3mm | |
| Standards/Approvals | EN 60601-1-2, ANSI/AAMI ES 60601-1, CSA-22.2 No.60601-1 per cUL, EN 55022 & EN 55011, EN 60601-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61204-3, FCC 20780, UL 60950-1 | |
| Series | ECM | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 85% | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 120, 90V dc | |
| Output Current | 14.3A | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 7V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 100W | ||
Minimum Operating Temperature 0°C | ||
SMPS Output Current 14.3 A | ||
Maximum Operating Temperature 70°C | ||
Weight 180g | ||
Depth 27mm | ||
Width 63.5 mm | ||
Length 114.3mm | ||
Standards/Approvals EN 60601-1-2, ANSI/AAMI ES 60601-1, CSA-22.2 No.60601-1 per cUL, EN 55022 & EN 55011, EN 60601-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61204-3, FCC 20780, UL 60950-1 | ||
Series ECM | ||
Maximum Input Voltage 264V ac | ||
Efficiency 85% | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 120, 90V dc | ||
Output Current 14.3A | ||
XP Power - ECM100 Series of AC-DC Power Supplies
The ECM series from XP Power offers an excellent range of open frame, 100 W AC-DC power supplies, all of which are IT and medically approved. These highly reliable, compact power supplies all feature either a class I or class II construction. The range is convection-cooled and has an operating temperature from 0 °C to +70 °C Operating temperature.
100 W open frame, AC-DC power supplies
80-85% Efficiency
IT and medically approved
Class I and Class II construction
DC Input version available (DCM series)
Switch Mode - XP Power
