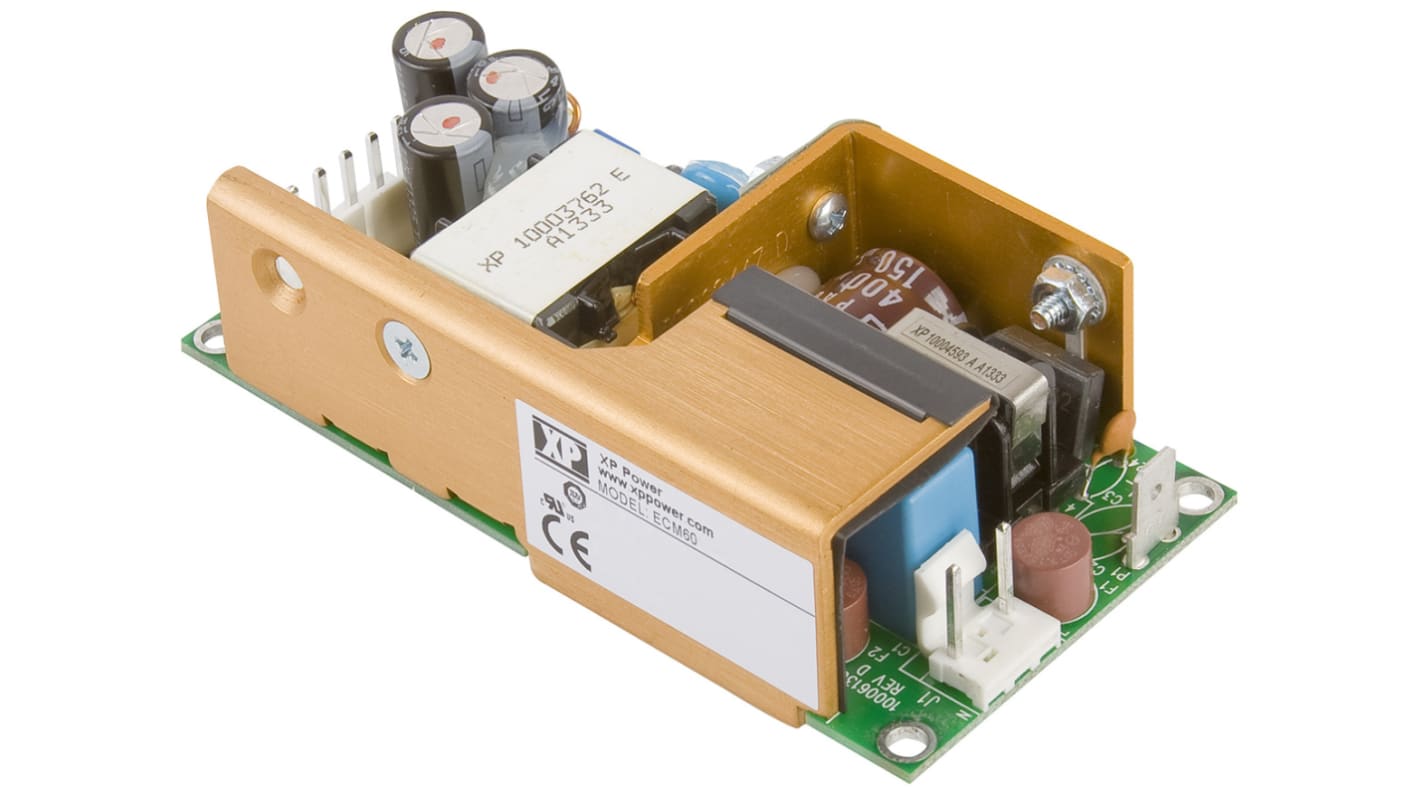

XP Power Switching Power Supply, ECM60US05, 5V dc, 12A, 60W, 1 Output, 120 → 370 V dc, 90 → 264 V ac

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
XP Power Switching Power Supply, ECM60UD21, 5 V dc, 12 V dc, 3 A, 8 A, 60W, Dual Output, 120 → 370 V dc, 90
RS Stock No.
122-7077

Each

£53.53

(exc. VAT)

£64.24

(inc. VAT)

RS Stock No.:
122-7078
Distrelec Article No.:
301-83-490
Mfr. Part No.:
ECM60US05
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

5V dc

Output Current

12A

Power Rating

60W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 90 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

101.6mm

Width

50.8mm

Medical Approved

Yes

Depth

27mm

Maximum Temperature

+70°C

Weight

150g

Minimum Temperature

0°C

XP Power AC To DC Power Supply


The XP Power ECM series 60W rated AC to DC power supply has the output current rating is 12A at 5VDC and 3A at 12VDC. It has a universal input supply voltage rating from 90VAC to 264VAC.

Features and Benefits


Compact size and open frame
Convection-cooled
IT and medically approved
Operating temperature ranges between 0°C and 70°C

Certifications


ANSI/AAMI ES60601-1
Class I and II construction
CSA22.2 No.60601-1 per UL
EN55022 and EN55011, level B conducted
EN55022 level A radiated
EN60601-1
EN60601-1, 30% 500ms, 60% 100ms, 100% 10ms, 100% 5000ms, Perf criteria A, A (with 50% load), A, B
EN60601-1-2
EN60950-1
EN61000-3-2, class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60% 100ms, 100% 5000ms, Perf criteria A, B, B
EN61000-4-2, level 3 Perf criteria A
EN61000-4-3, 10V/m Perf criteria A
EN61000-4-4, level 3 Perf criteria A
EN61000-4-5, level 3 Perf criteria A, SEMI F47
EN61000-4-6, 10 V Perf criteria A
EN61204-3
FCC 20780
UL60950-1
