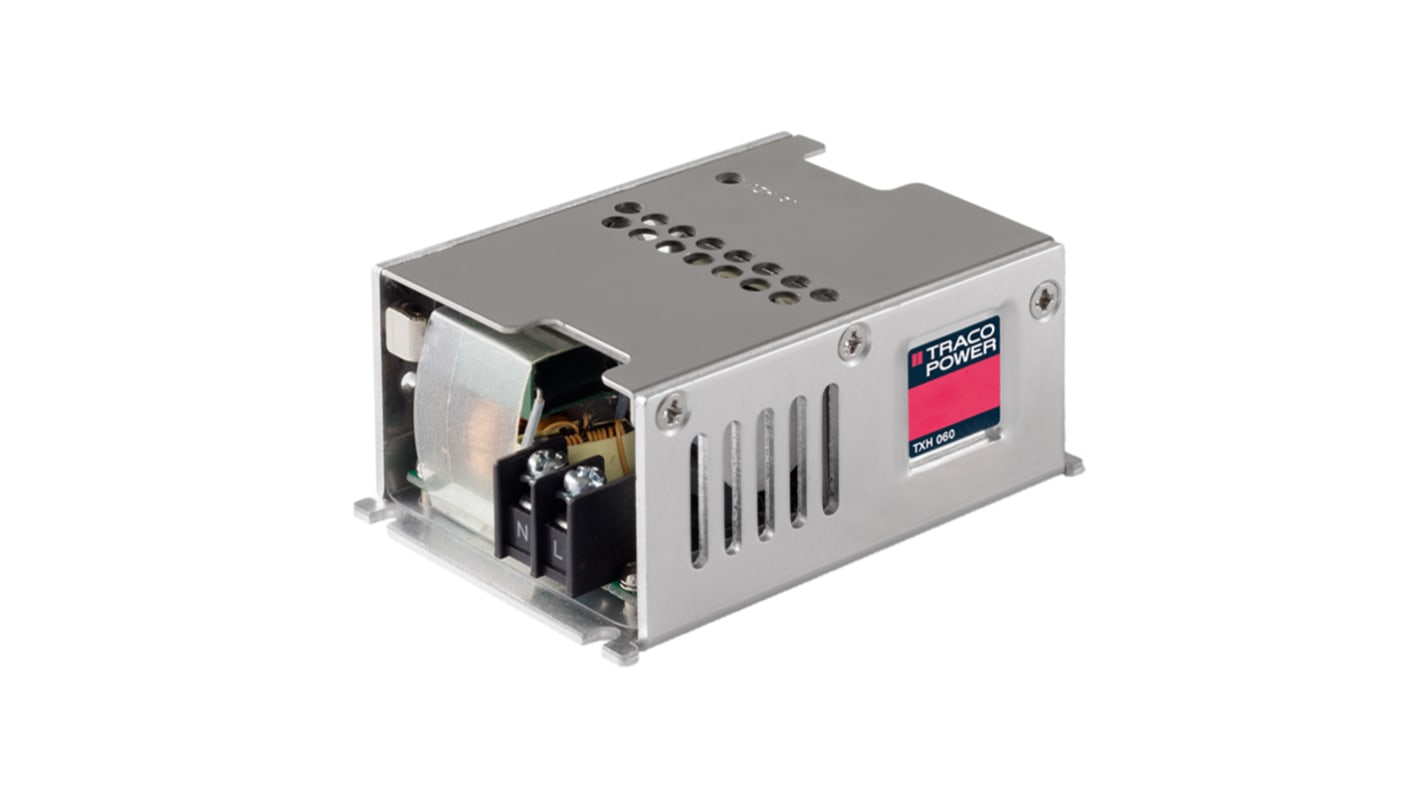

TRACOPOWER, TXH 060-148 Switching Power Supply 48V dc, 60 W 264V ac
- RS Stock No.:
- 123-2799
- Distrelec Article No.:
- 301-21-232
- Mfr. Part No.:
- TXH 060-148
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£51.68
(exc. VAT)
£62.02
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £51.68 |
| 5 - 9 | £50.14 |
| 10 - 24 | £48.58 |
| 25 - 49 | £46.51 |
| 50 + | £44.44 |
*price indicative
- RS Stock No.:
- 123-2799
- Distrelec Article No.:
- 301-21-232
- Mfr. Part No.:
- TXH 060-148
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Panel | |
| Power | 60W | |
| SMPS Output Current | 1.25A | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 59.7mm | |
| Standards/Approvals | EN 61000-4-3, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, UL 60950-1, EN 61000-4-5, EN 61000-4-2, EN 61000-4-4, EN 55024, EN 55032 Class B, EN 60950-1, EN 61000-3-2 Class B, EN 61000-3-3, EN 61000-4-11 | |
| Weight | 220g | |
| Length | 80mm | |
| Depth | 38mm | |
| Maximum Input Voltage | 264V ac | |
| Series | TXH 060 | |
| Efficiency | 88% | |
| Minimum Input Voltage | 90V ac | |
| Hazardous Area Certification | No | |
| Output Current | 1.25A | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Panel | ||
Power 60W | ||
SMPS Output Current 1.25A | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Width 59.7mm | ||
Standards/Approvals EN 61000-4-3, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, UL 60950-1, EN 61000-4-5, EN 61000-4-2, EN 61000-4-4, EN 55024, EN 55032 Class B, EN 60950-1, EN 61000-3-2 Class B, EN 61000-3-3, EN 61000-4-11 | ||
Weight 220g | ||
Length 80mm | ||
Depth 38mm | ||
Maximum Input Voltage 264V ac | ||
Series TXH 060 | ||
Efficiency 88% | ||
Minimum Input Voltage 90V ac | ||
Hazardous Area Certification No | ||
Output Current 1.25A | ||
- COO (Country of Origin):
- TW
TRACO POWER - TXH 060 Series of AC-DC Power Supplies
The TXH 060 series from TRACO POWER offers an excellent range of 60 W, AC-DC power supplies. These highly reliable, enclosed power supplies have been designed in a compact, metal enclosure and all feature a screw terminal block. The range features < 0.3 W no load power consumption, an adjustable output voltage and 1500 V ac I/O-isolation. These compact, power supplies also attribute a high efficiency of up to 88% and a wide -30°C to +70°C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.
60 W, AC-DC Power supplies
Compact, metal enclosure with screw terminal block
Up to 88% high efficiency
1500 V ac I/O-isolation
Adjustable output voltage
< 0.3 W No load power consumption
Short circuit, overload and over voltage protection
-30°C to +70°C operating temperature range
