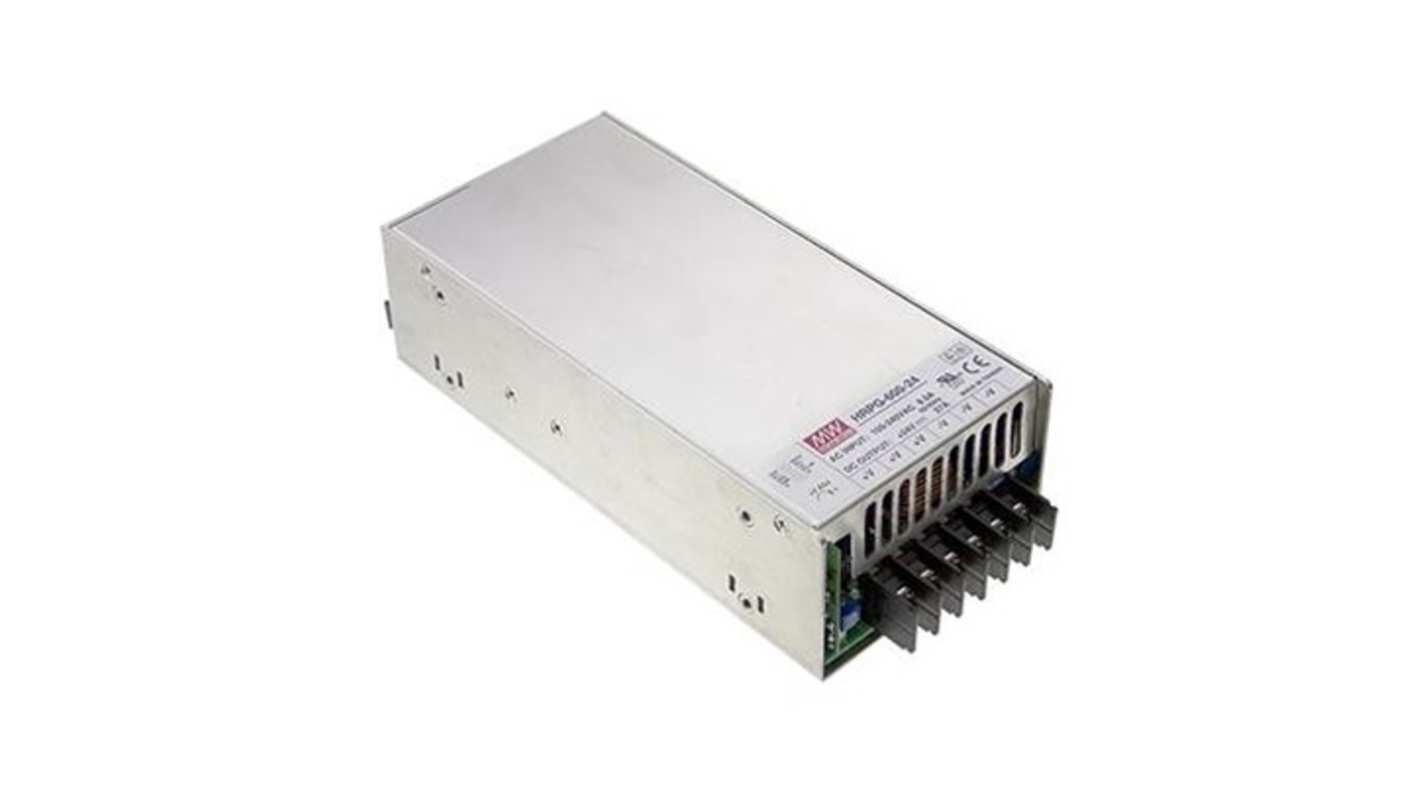

MEAN WELL Switching Power Supply, HRPG-600-3.3, 3.3V, 120A, 600W, 1 Output, 85 → 264 V ac/dc, 120 → 370 V
- RS Stock No.:
- 611-358
- Mfr. Part No.:
- HRPG-600-3.3
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£111.74
(exc. VAT)
£134.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £111.74 |
*price indicative
- RS Stock No.:
- 611-358
- Mfr. Part No.:
- HRPG-600-3.3
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 3.3V | |
Output Current | 120A | |
Power Rating | 600W | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264 V ac/dc, 120 → 370 V ac/dc | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 3.3V | ||
Output Current 120A | ||
Power Rating 600W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264 V ac/dc, 120 → 370 V ac/dc | ||
- COO (Country of Origin):
- CN
The MEANWELL 600W single output power supply features a universal full-range AC input with a built-in active PFC function and a power factor greater than 0.93. It delivers high efficiency up to 89% and can withstand a 300VAC surge input for 5 seconds. Equipped with a built-in constant current limiting circuit, it offers comprehensive protection against short circuit, overload, overvoltage, and over temperature. A users manual is included for installation and operation guidance.
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
All using 105°C long life electrolytic capacitors
5 years warranty
Built-in DC OK signal
Built-in remote sense function
All using 105°C long life electrolytic capacitors
5 years warranty
