MEAN WELL Switching Power Supply, HRPG-600-5RS, 5V dc, 120A, 600W, 1 Output, 120 → 370 V dc, 85 → 264 V
- RS Stock No.:
- 705-9793
- Mfr. Part No.:
- HRPG-600-5RS
- Brand:
- MEAN WELL
5 In stock for delivery within 1 working days
Added
Price Each
£193.24
(exc. VAT)
£231.89
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £193.24 |
| 5 - 9 | £188.41 |
| 10 - 24 | £183.58 |
| 25 - 49 | £178.75 |
| 50 + | £164.26 |
- RS Stock No.:
- 705-9793
- Mfr. Part No.:
- HRPG-600-5RS
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

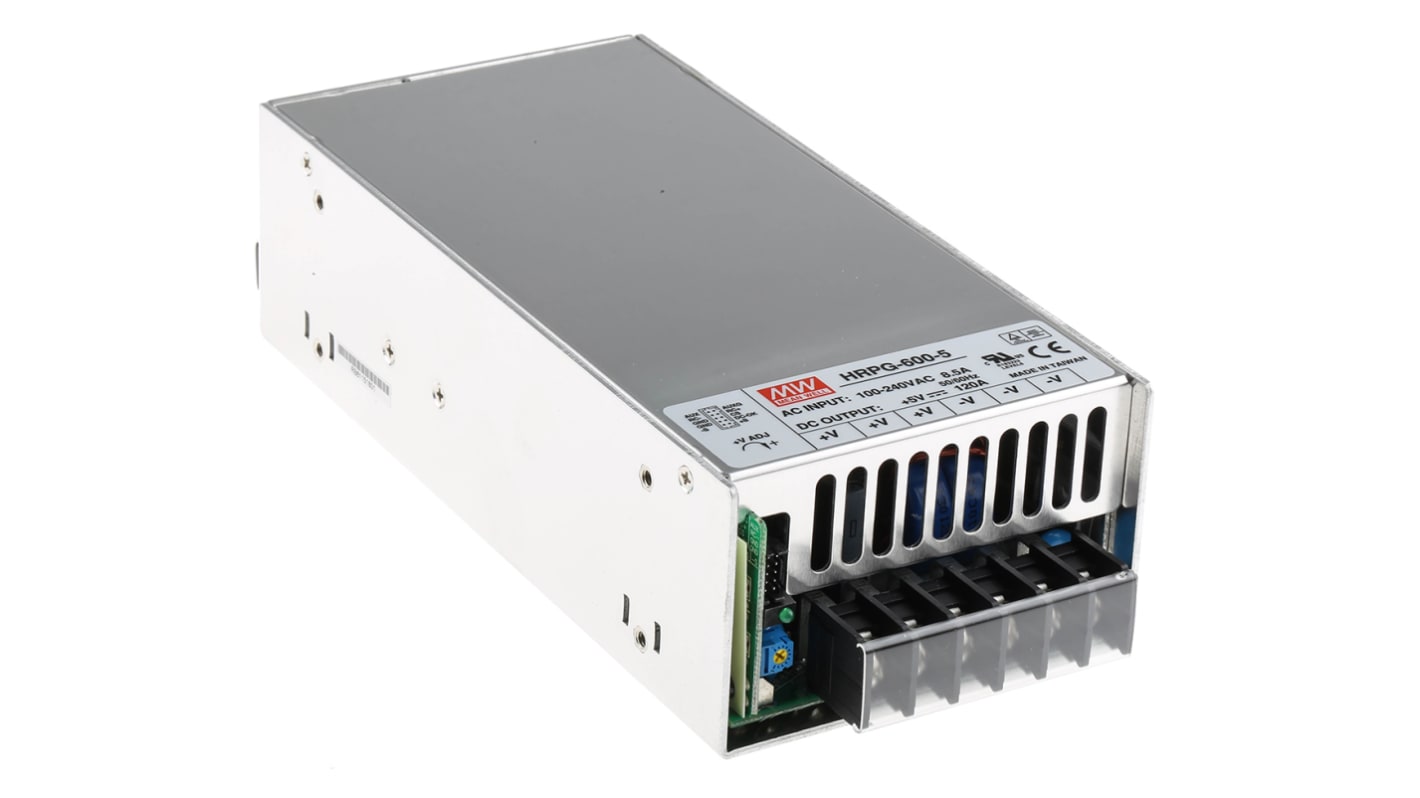

Mean Well Embedded Switch Mode Power Supply
The Mean Well HRPG-600 series 600W single output AC to DC embedded switch mode power supply has an output current rating of 120A at 5VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC.
Note:
Power derating above 40°C
MTBF to MIL-HDBK-217F
Note:
Power derating above 40°C
MTBF to MIL-HDBK-217F
Features and Benefits
High efficiency up to 82%
Long life and high reliability
No load power consumption less than 0.75W
Built-in active PFC function
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Short circuit
Over load
Overvoltage and over temperature protection
Withstands 300VAC surge input for 5 seconds
Long life and high reliability
No load power consumption less than 0.75W
Built-in active PFC function
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
Short circuit
Over load
Overvoltage and over temperature protection
Withstands 300VAC surge input for 5 seconds
Certifications
UL60950-1
TUV approved
EN60950-1
CB certified
EN55022 class B (EMC compliance)
EN61000-3-2,-3 (power factor correction)
TUV approved
EN60950-1
CB certified
EN55022 class B (EMC compliance)
EN61000-3-2,-3 (power factor correction)
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Output Current | 120A |
| Power Rating | 600W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 218mm |
| Width | 105mm |
| Depth | 63.5mm |
| Efficiency | 82% |
| Weight | 1.6kg |
| Maximum Temperature | +70°C |
| Minimum Temperature | -40°C |
- RS Stock No.:
- 705-9793
- Mfr. Part No.:
- HRPG-600-5RS
- Brand:
- MEAN WELL
