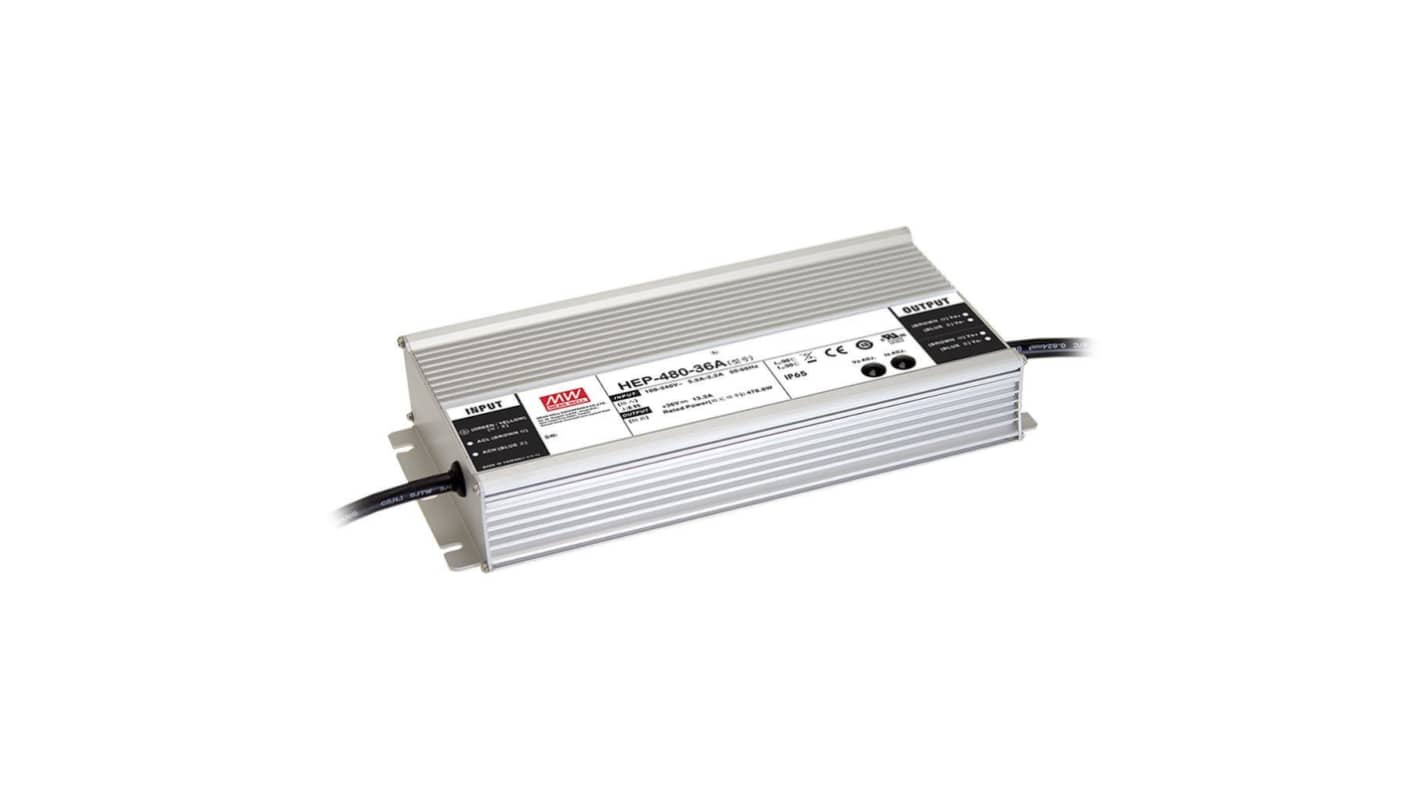

MEAN WELL Switching Power Supply, HEP-480-36A 36V, 480 W, Input 120V to 305V ac
- RS Stock No.:
- 424-856
- Distrelec Article No.:
- 304-06-299
- Mfr. Part No.:
- HEP-480-36A
- Brand:
- MEAN WELL
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 424-856
- Distrelec Article No.:
- 304-06-299
- Mfr. Part No.:
- HEP-480-36A
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 36V | |
| Power | 480W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 65°C | |
| Length | 262mm | |
| Weight | 2.8kg | |
| Depth | 43.8mm | |
| Width | 125mm | |
| Standards/Approvals | IEC6681, UL6681, IP65 (or IP68 for HEP480 BlankType), Design refer to BS ENEN6681, EAC TP TC 004 Approved | |
| Efficiency | 95% | |
| Series | HEP-480 | |
| Maximum Input Voltage | 305V ac | |
| Hazardous Area Certification | No | |
| Output Current | 13.3A | |
| Minimum Input Voltage | 120V | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 36V | ||
Power 480W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 65°C | ||
Length 262mm | ||
Weight 2.8kg | ||
Depth 43.8mm | ||
Width 125mm | ||
Standards/Approvals IEC6681, UL6681, IP65 (or IP68 for HEP480 BlankType), Design refer to BS ENEN6681, EAC TP TC 004 Approved | ||
Efficiency 95% | ||
Series HEP-480 | ||
Maximum Input Voltage 305V ac | ||
Hazardous Area Certification No | ||
Output Current 13.3A | ||
Minimum Input Voltage 120V | ||
- COO (Country of Origin):
- CN
The MEANWELL AC-DC Single output industrial power supply with PFC and Output 36Vdc at 13.3A and Vo-Io adjust with Potentiometer and Withstand up to 10G Vibration.
Warranty pack 72 Months Bring-In
RoHS Compliant
Packing quantity 4
