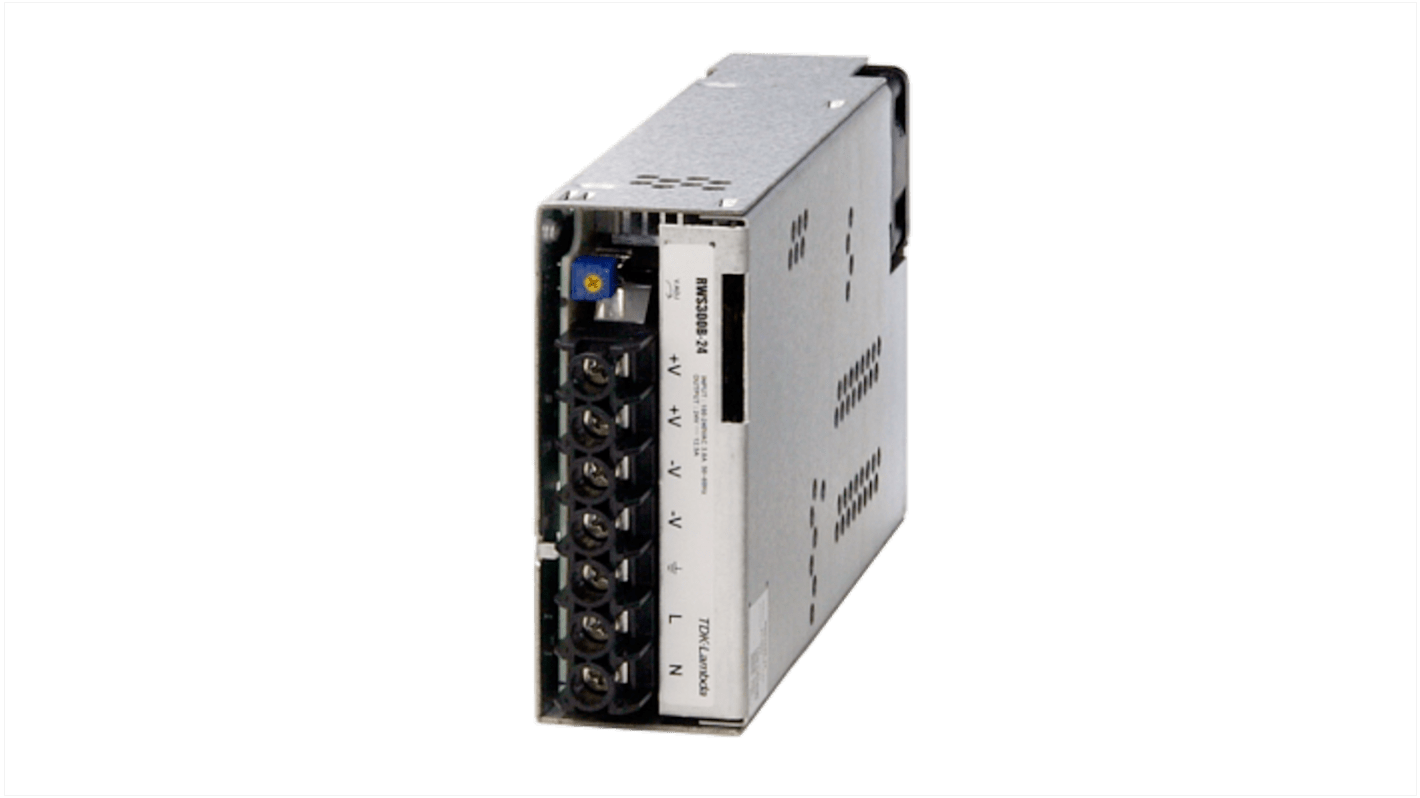

TDK-Lambda Switching Power Supply, RWS300B-36 36V dc, 8.4A, 601.2 W, Input 85V ac to 265V ac
- RS Stock No.:
- 242-733
- Distrelec Article No.:
- 110-96-590
- Mfr. Part No.:
- RWS300B-36
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£148.04
(exc. VAT)
£177.65
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 17 unit(s) shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £148.04 |
*price indicative
- RS Stock No.:
- 242-733
- Distrelec Article No.:
- 110-96-590
- Mfr. Part No.:
- RWS300B-36
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 36V dc | |
| Number of Outputs | 1 | |
| Power | 601.2W | |
| SMPS Output Current | 8.4A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 41mm | |
| Standards/Approvals | CE Mark and UKCA Mark, EN55011/EN55032-B, FCC Class B, IEC/UL/CSA/EN62368-1, UL508 (see model selector), VCCI-B | |
| Width | 102mm | |
| Length | 170mm | |
| Weight | 900g | |
| Series | RWS-B | |
| Maximum Input Voltage | 265V ac | |
| Efficiency | 88% | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 25A | |
| Hazardous Area Certification | EN, CSA, IEC, UL | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 36V dc | ||
Number of Outputs 1 | ||
Power 601.2W | ||
SMPS Output Current 8.4A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Depth 41mm | ||
Standards/Approvals CE Mark and UKCA Mark, EN55011/EN55032-B, FCC Class B, IEC/UL/CSA/EN62368-1, UL508 (see model selector), VCCI-B | ||
Width 102mm | ||
Length 170mm | ||
Weight 900g | ||
Series RWS-B | ||
Maximum Input Voltage 265V ac | ||
Efficiency 88% | ||
Minimum Input Voltage 85V ac | ||
Output Current 25A | ||
Hazardous Area Certification EN, CSA, IEC, UL | ||
- COO (Country of Origin):
- MY
The TDK Lambda AC to DC Power Supplies offer reliable performance at an affordable price, certified to IEC62368 1 and meeting Class B EMI standards. With a 7 year warranty, they provide long field life, and easier system EMC compliance, making them ideal for industrial control equipment.
Conservatively rated electrolytic capacitor
Low cost of ownership
