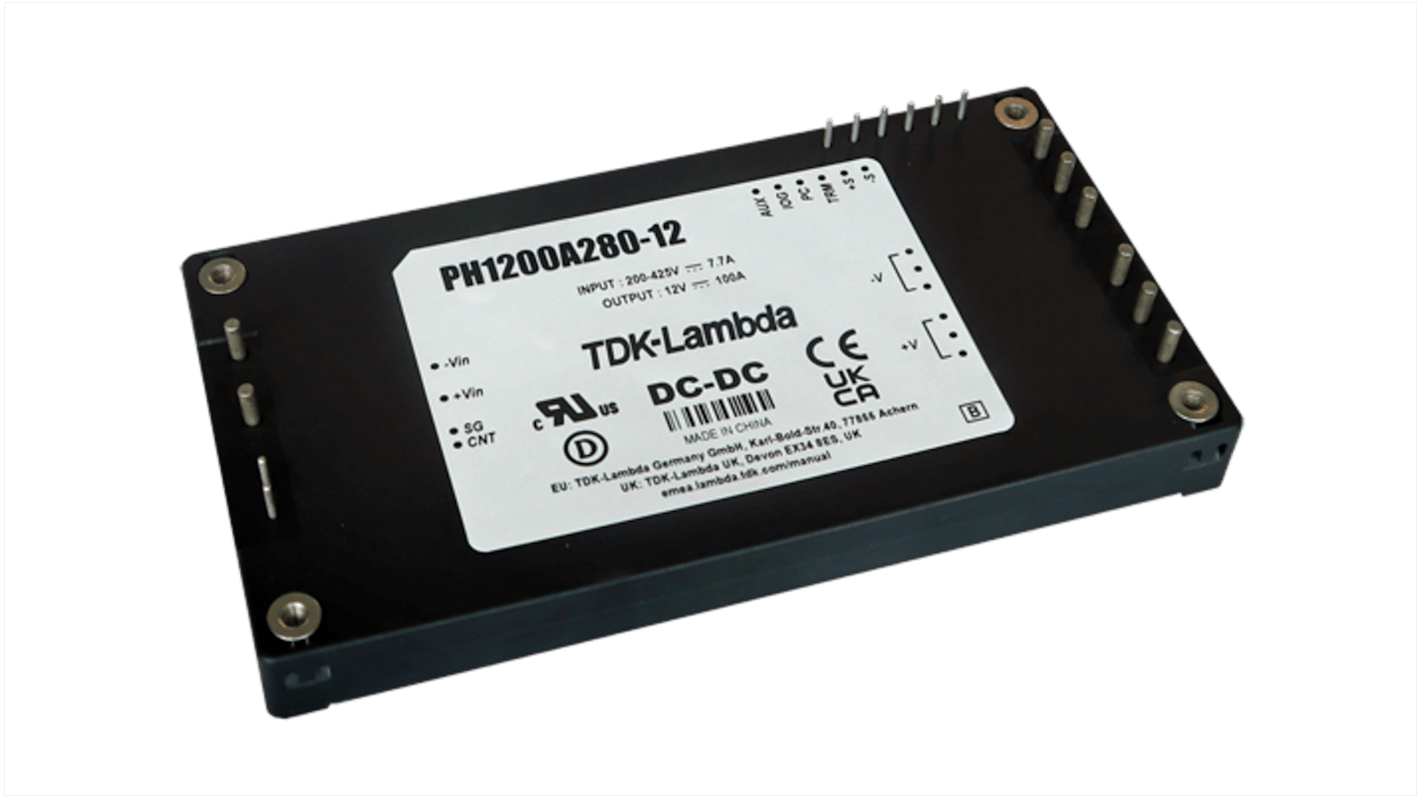

TDK-Lambda, PH1200A280-12 Switching Power Supply 12V dc, 1.2 kW 425V dc

View all Switching Power Supplies

Subtotal (1 unit)*

£462.48

(exc. VAT)

£554.98

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£462.48

*price indicative

RS Stock No.:
242-640
Mfr. Part No.:
PH1200A280-12
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

Switching Power Supply

Maximum Output Voltage

12V dc

Number of Outputs

1

Power

1.2kW

SMPS Output Current

100A

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Standards/Approvals

CE mark, IEC/UL/CSA/EN62368-1, UKCA Mark

Weight

200g

Length

116.6mm

Width

61mm

Depth

12.7mm

Efficiency

94%

Maximum Input Voltage

425V dc

Series

PH1200A280

Output Current

100A

Minimum Input Voltage

200V

Hazardous Area Certification

No

COO (Country of Origin):
CN
The TDK Lambda DC To DC Converters are designed to operate from a wide 200 to 425Vdc input and are rated at 1200W. They offer adjustable output voltages ranging from 12V to 48V, with trim terminals allowing for adjustments of 40% to +20%. These converters feature parallel functionality and an ORing FET for higher power or N+1 redundant systems. Standard features include remote sense, remote on/off, inverter good signal, and a 12V auxiliary voltage. The modules can be conduction cooled to a cold plate or fitted with an optional heatsink for improved thermal management.

Baseplate cooled

40 to 100°C baseplate temperature

Parallel function with internal ORing FET

Up to 94% efficient
