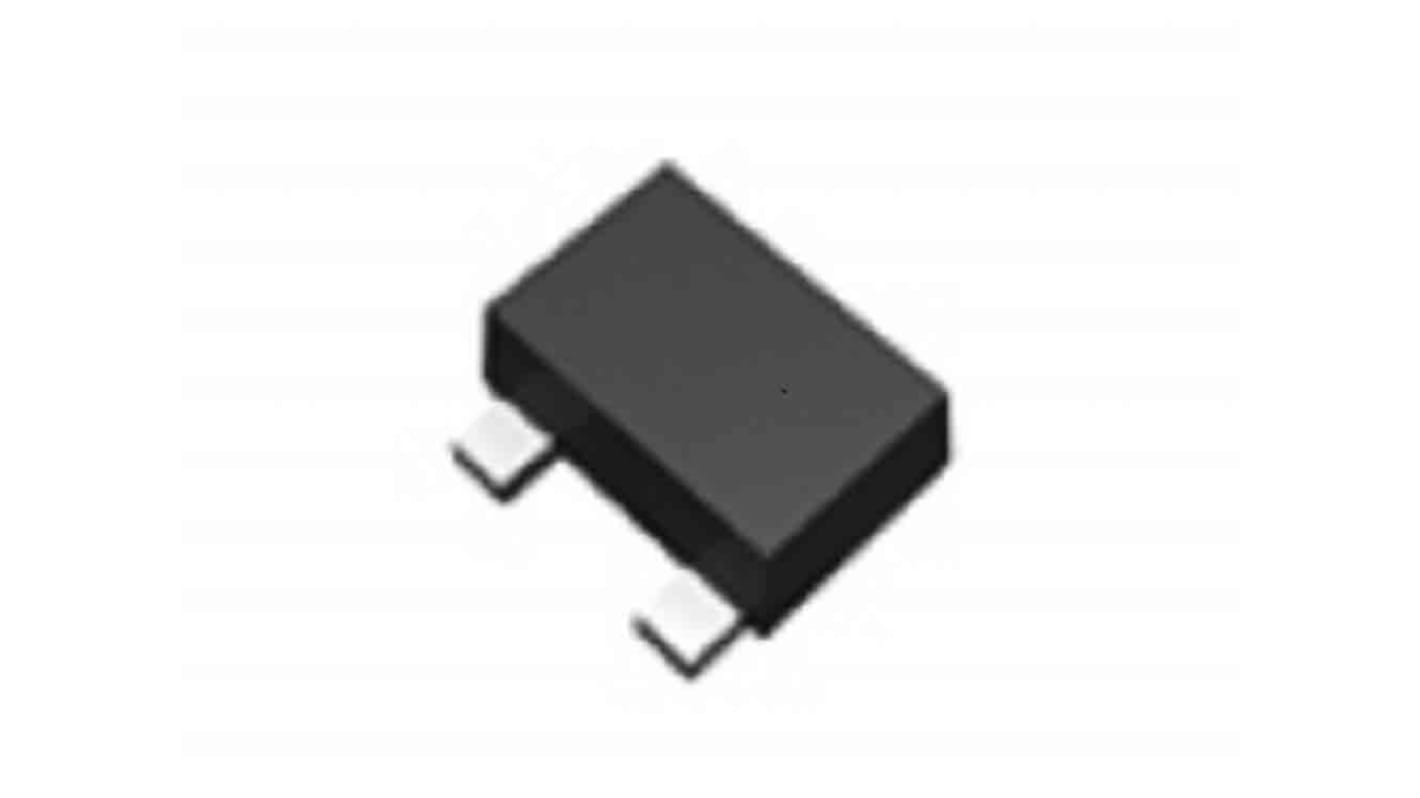

ROHM Switching Diode, Single, 100 mA, 3-Pin 80 V SOT-723 DAN222ZMT2L
- RS Stock No.:
- 222-4347
- Mfr. Part No.:
- DAN222ZMT2L
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 222-4347
- Mfr. Part No.:
- DAN222ZMT2L
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Maximum Forward Current If | 100mA | |
| Product Type | Switching Diode | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Sub Type | Switching Diode | |
| Package Type | SOT-723 | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Power Dissipation Pd | 150mW | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A | |
| Peak Reverse Recovery Time trr | 4ns | |
| Maximum Forward Voltage Vf | 1.2V | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 80V | |
| Maximum Operating Temperature | 150°C | |
| Length | 1.3mm | |
| Standards/Approvals | No | |
| Height | 0.56mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Maximum Forward Current If 100mA | ||
Product Type Switching Diode | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Sub Type Switching Diode | ||
Package Type SOT-723 | ||
Pin Count 3 | ||
Minimum Operating Temperature -65°C | ||
Maximum Power Dissipation Pd 150mW | ||
Peak Non-Repetitive Forward Surge Current Ifsm 4A | ||
Peak Reverse Recovery Time trr 4ns | ||
Maximum Forward Voltage Vf 1.2V | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 80V | ||
Maximum Operating Temperature 150°C | ||
Length 1.3mm | ||
Standards/Approvals No | ||
Height 0.56mm | ||
Automotive Standard No | ||
The ROHM DAN222ZM is small mold type package switching diode, suitable for high speed switching applications.
High reliability
Small mold type
High speed switching
