Nexperia General Purpose Diode, Single, 200 mA, 2-Pin 200 V SOD-123 BAS21H,115
- RS Stock No.:
- 152-5551
- Mfr. Part No.:
- BAS21H,115
- Brand:
- Nexperia
Subtotal (1 pack of 250 units)*
£10.75
(exc. VAT)
£13.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 250 + | £0.043 | £10.75 |
*price indicative
- RS Stock No.:
- 152-5551
- Mfr. Part No.:
- BAS21H,115
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Maximum Forward Current If | 200mA | |
| Diode Configuration | Single | |
| Product Type | General Purpose Diode | |
| Sub Type | Switching Diode | |
| Mount Type | Surface | |
| Package Type | SOD-123 | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A | |
| Maximum Forward Voltage Vf | 1.25V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Power Dissipation Pd | 375mW | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Peak Reverse Recovery Time trr | 4ns | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Series | BAS21 | |
| Height | 1.2mm | |
| Length | 2.7mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Maximum Forward Current If 200mA | ||
Diode Configuration Single | ||
Product Type General Purpose Diode | ||
Sub Type Switching Diode | ||
Mount Type Surface | ||
Package Type SOD-123 | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 9A | ||
Maximum Forward Voltage Vf 1.25V | ||
Minimum Operating Temperature -65°C | ||
Maximum Power Dissipation Pd 375mW | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 200V | ||
Peak Reverse Recovery Time trr 4ns | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Series BAS21 | ||
Height 1.2mm | ||
Length 2.7mm | ||
Automotive Standard No | ||

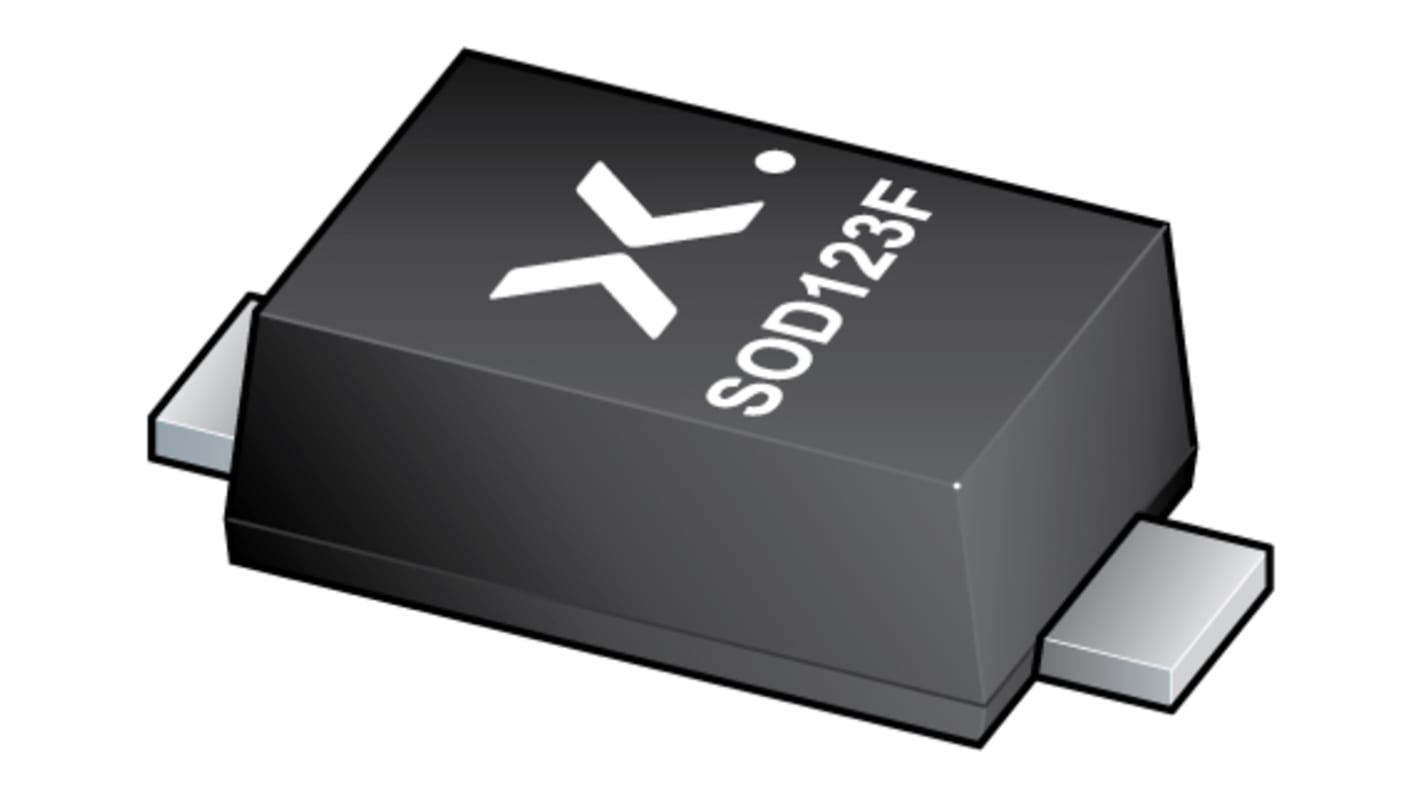

Single high-voltage switching diode, Single high-voltage switching diode, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Small and flat lead SMD plastic package
Reverse voltage: VR ≤ 200 V
AEC-Q101 qualified
General-purpose switching
