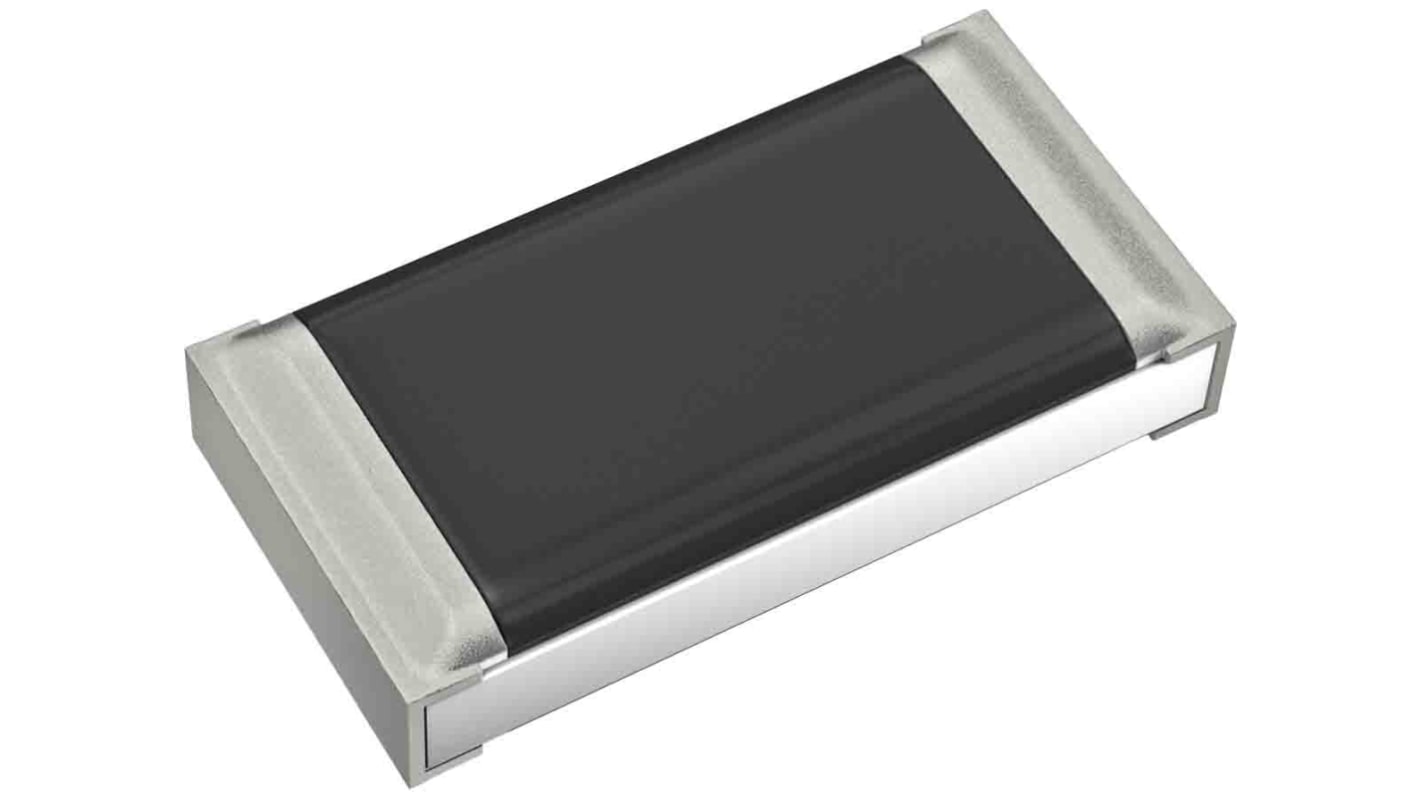

Panasonic ERJP14 22Ω, 1210 (3225M) Thick Film SMD Resistor ±1% 0.5W

View all Surface Mount Resistors
Currently unavailable
Sorry, we don't know when this will be back in stock.
Sponsored
A Panasonic surface mount resistor on a burgandy background
Panasonic Brand Logo
Panasonic Aluminium Capacitors & Surface Mount Resistors
Build reliable, compact designs with Panasonic’s trusted Aluminium Capacitors and precision Surface Mount Resistors.
Shop Here
RS Stock No.:
922-8957
Mfr. Part No.:
ERJP14F22R0U
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Resistance

22Ω

Technology

Thick Film

Package/Case

1210 (3225M)

Tolerance

±1%

Power Rating

0.5W

Temperature Coefficient

±100ppm/°C

Series

ERJP14

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+155°C

COO (Country of Origin):
JP

1210 Format Anti-Surge Resistors, ERJP14 Series - 1% (10Ω → 750Ω)


Panasonic ERJ P14 anti-surge thick film chip resistors are constructed from three layers of electrodes with a metal glaze thick film resistive element and protective coating. This construction ensures high reliability while allowing for reflow and flow soldering.

AEC-Q200 qualified
0.50 W high-power rating
Anti-surge
Superior surge characteristics compared to standard film resistors

Applications


These chip resistors are AEC-Q200 qualified and can be used for automotive applications.

Standards

IEC 60115-8, JIS C 5201-8, EIAK RC-2134
