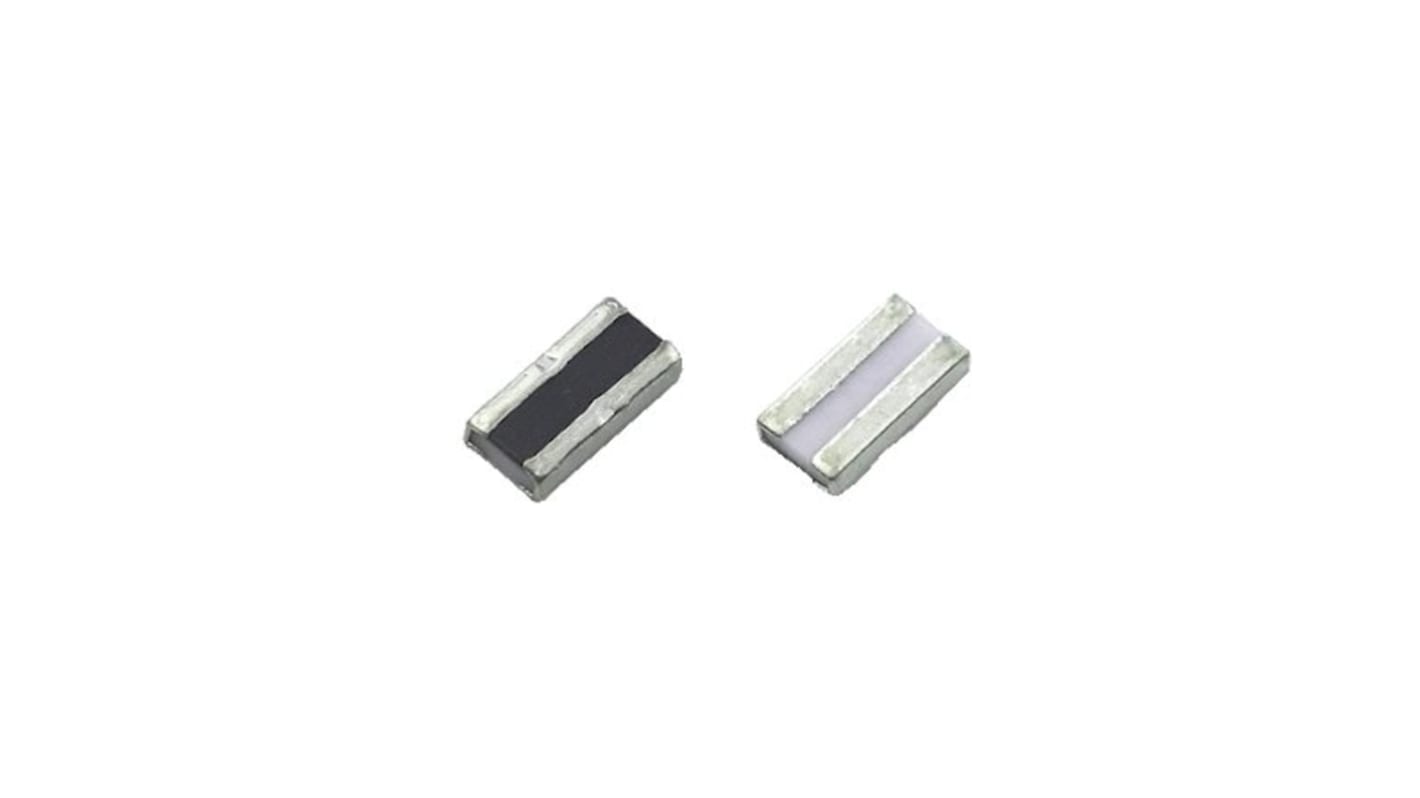

KOA WU73 20 mΩ, 0612 Thick Film Resistor 1 % 1.5 W - WU732B15TTD20L0F

Subtotal (1 reel of 5000 units)*

£625.00

(exc. VAT)

£750.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
5000 +	£0.125	£625.00

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	KOA
	Resistance	20mΩ
	Product Type	Resistor
	Technology	Thick Film
	Package/Case	0612
	Packaging	Pitch Punch Paper
	Tolerance	1 %
	Power Rating	1.5W
	Temperature Coefficient	±75 ppm/°C
	Automotive Standard	AEC-Q200
	Minimum Operating Temperature	-55°C
	Series	WU73
	Maximum Operating Temperature	155°C
	Standards/Approvals	EIAJ RC-2134C, IEC 60115-8, JIS C 5201-8
	Height	0.6mm
	Termination Style	Solder
	Length	1.6mm
	Width	3.2mm

	Select all
	Brand KOA
	Resistance 20mΩ
	Product Type Resistor
	Technology Thick Film
	Package/Case 0612
	Packaging Pitch Punch Paper
	Tolerance 1 %
	Power Rating 1.5W
	Temperature Coefficient ±75 ppm/°C
	Automotive Standard AEC-Q200
	Minimum Operating Temperature -55°C
	Series WU73
	Maximum Operating Temperature 155°C
	Standards/Approvals EIAJ RC-2134C, IEC 60115-8, JIS C 5201-8
	Height 0.6mm
	Termination Style Solder
	Length 1.6mm
	Width 3.2mm

The KOA wide terminal type flat chip resistors has a low resistance (Low T.C.R.).It is used in power supply and EUC etc.

High Relaiability

Suitable for flow and reflow solderings

AEC-Q200 Tested
