KOA WU73 15 mΩ, 0612 Thick Film Resistor 1 % 1.5 W - WU732B15TTD15L0F

Bulk discount available

View bulk pricing options

Subtotal (1 tape of 10 units)*

£3.72

(exc. VAT)

£4.46

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	KOA
	Resistance	15mΩ
	Product Type	Resistor
	Technology	Thick Film
	Package/Case	0612
	Packaging	Pitch Punch Paper
	Tolerance	1 %
	Power Rating	1.5W
	Temperature Coefficient	±75 ppm/°C
	Automotive Standard	AEC-Q200
	Series	WU73
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Length	1.6mm
	Termination Style	Solder
	Height	0.6mm
	Width	3.2mm
	Standards/Approvals	EIAJ RC-2134C, IEC 60115-8, JIS C 5201-8

	Select all
	Brand KOA
	Resistance 15mΩ
	Product Type Resistor
	Technology Thick Film
	Package/Case 0612
	Packaging Pitch Punch Paper
	Tolerance 1 %
	Power Rating 1.5W
	Temperature Coefficient ±75 ppm/°C
	Automotive Standard AEC-Q200
	Series WU73
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Length 1.6mm
	Termination Style Solder
	Height 0.6mm
	Width 3.2mm
	Standards/Approvals EIAJ RC-2134C, IEC 60115-8, JIS C 5201-8

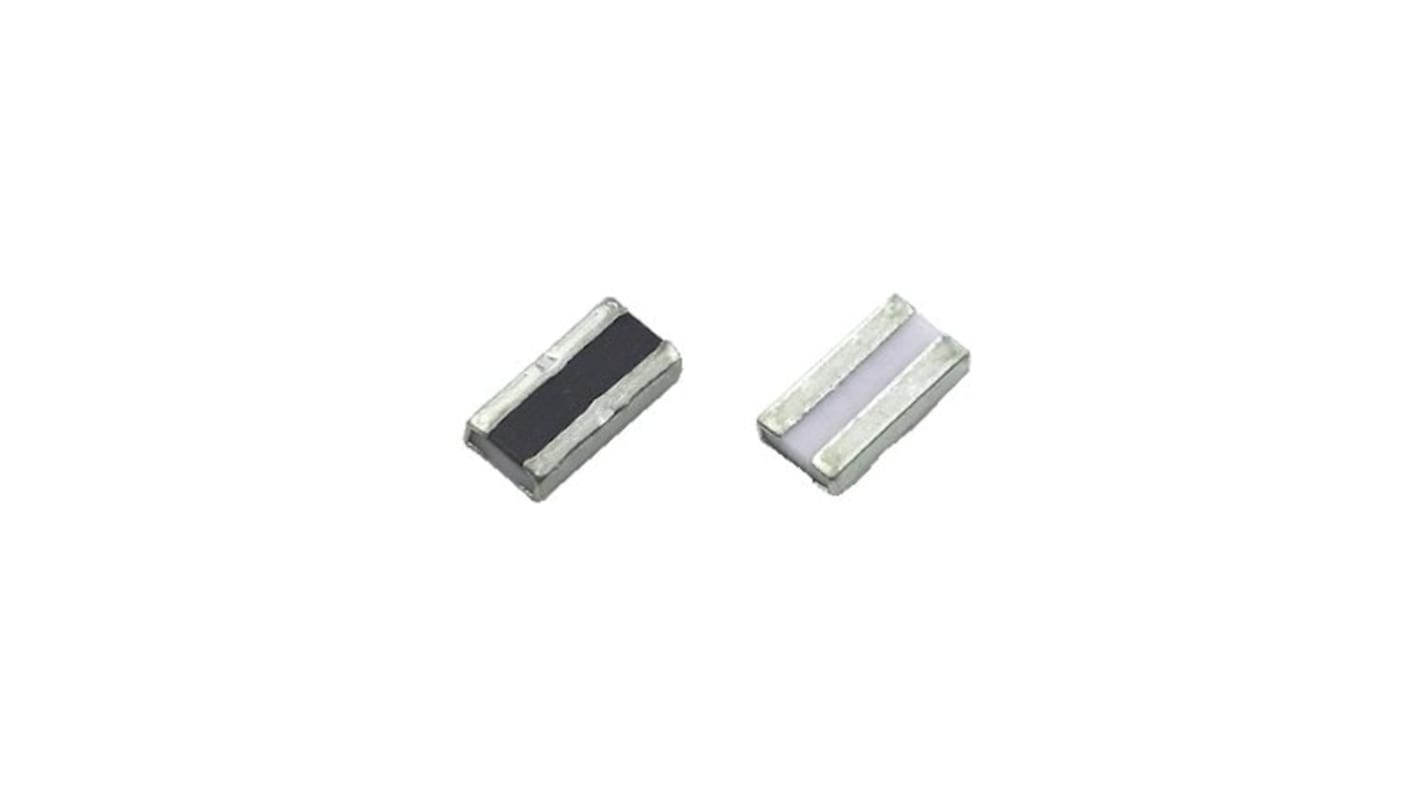

The KOA wide terminal type flat chip resistors has a low resistance (Low T.C.R.).It is used in power supply and EUC etc.

High Relaiability

Suitable for flow and reflow solderings

AEC-Q200 Tested
