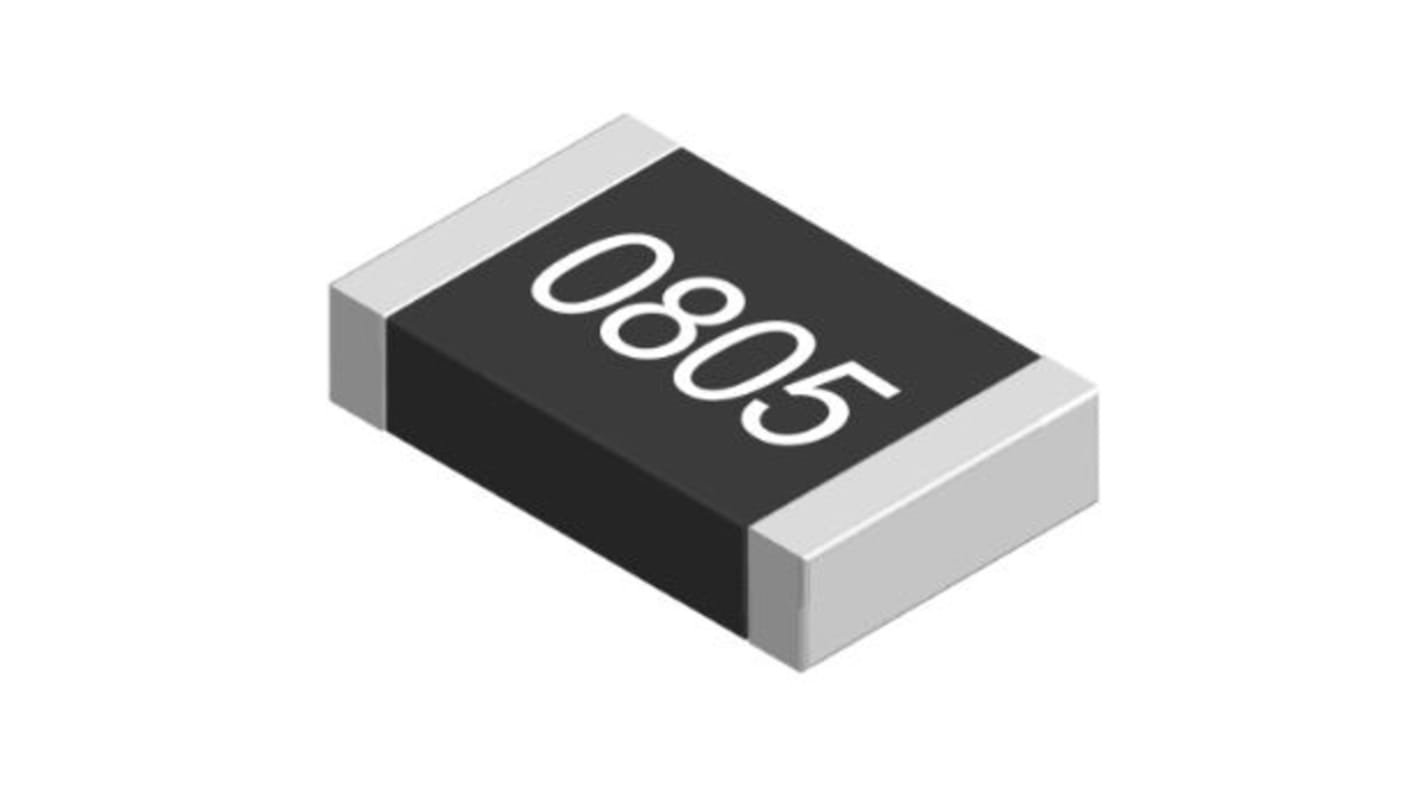

Vishay TNP 750 kΩ, 0805 Thin Film Resistor ±0.1 % Surface 0.2 W - TNPV0805750KBEEA

View all Surface Mount Resistors
Bulk discount available

Subtotal (1 tape of 5 units)*

£3.24

(exc. VAT)

£3.89

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 4,725 unit(s), ready to ship

Units
Per unit
Per Tape*
5 - 95£0.648£3.24
100 - 245£0.54£2.70
250 - 495£0.416£2.08
500 - 995£0.352£1.76
1000 +£0.298£1.49

*price indicative

Packaging Options:
RS Stock No.:
244-1336
Mfr. Part No.:
TNPV0805750KBEEA
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Resistor

Resistance

750kΩ

Technology

Thin Film

Package/Case

0805

Tolerance

±0.1 %

Packaging

Tape & Reel

Voltage

30V

Power Rating

0.2W

Temperature Coefficient

±10 ppm/°C

Mount Type

Surface

Automotive Standard

AEC-Q200

Minimum Operating Temperature

-55°C

Series

TNP

Maximum Operating Temperature

155°C

Standards/Approvals

EN, IEC, RoHS

Termination Style

Solder

Length

2mm

Height

0.45mm

Width

1.25mm

COO (Country of Origin):
DE
The Vishay TNPV series consists of high voltage thin film flat chip resistors. The resistor value is 750 kΩ and tolerance is ±0.1%. These SMD resistors are constructed from a high quality ceramic with a metal glaze. With pure tin plated solder contacts, you can use soldering processes that either contain lead or are lead-free.

Wide operating temperature range of -55°C to +155°C

High operating voltage Umax. up to 1000 V

Low voltage coefficient < 1 ppm/V
