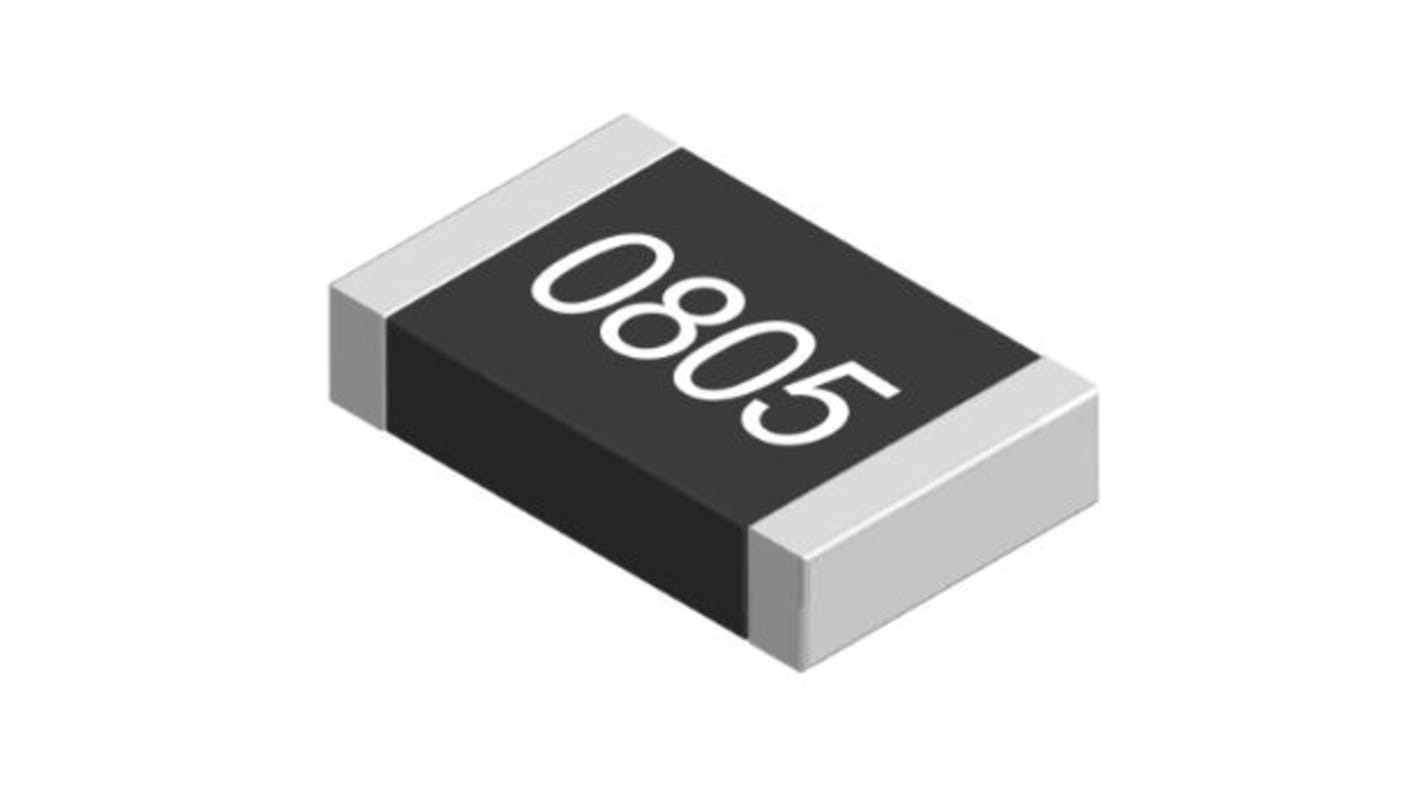

Vishay 180kΩ, 0805 (2012M) Thin Film Resistor ± 0.1% 0.2W
- RS Stock No.:
- 244-1319
- Mfr. Part No.:
- TNPV0805180KBEEA
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 244-1319
- Mfr. Part No.:
- TNPV0805180KBEEA
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 180kΩ | |
| Technology | Thin Film | |
| Package/Case | 0805 (2012M) | |
| Tolerance | ± 0.1% | |
| Power Rating | 0.2W | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 180kΩ | ||
Technology Thin Film | ||
Package/Case 0805 (2012M) | ||
Tolerance ± 0.1% | ||
Power Rating 0.2W | ||
- COO (Country of Origin):
- DE
The Vishay TNPV series consists of high voltage thin film flat chip resistors. The resistor value is 180 kΩ and tolerance is ±0.1%. These SMD resistors are constructed from a high quality ceramic with a metal glaze. With pure tin plated solder contacts, you can use soldering processes that either contain lead or are lead-free.
Wide operating temperature range of -55°C to +155°C
High operating voltage Umax. up to 1000 V
Low voltage coefficient < 1 ppm/V
High operating voltage Umax. up to 1000 V
Low voltage coefficient < 1 ppm/V
