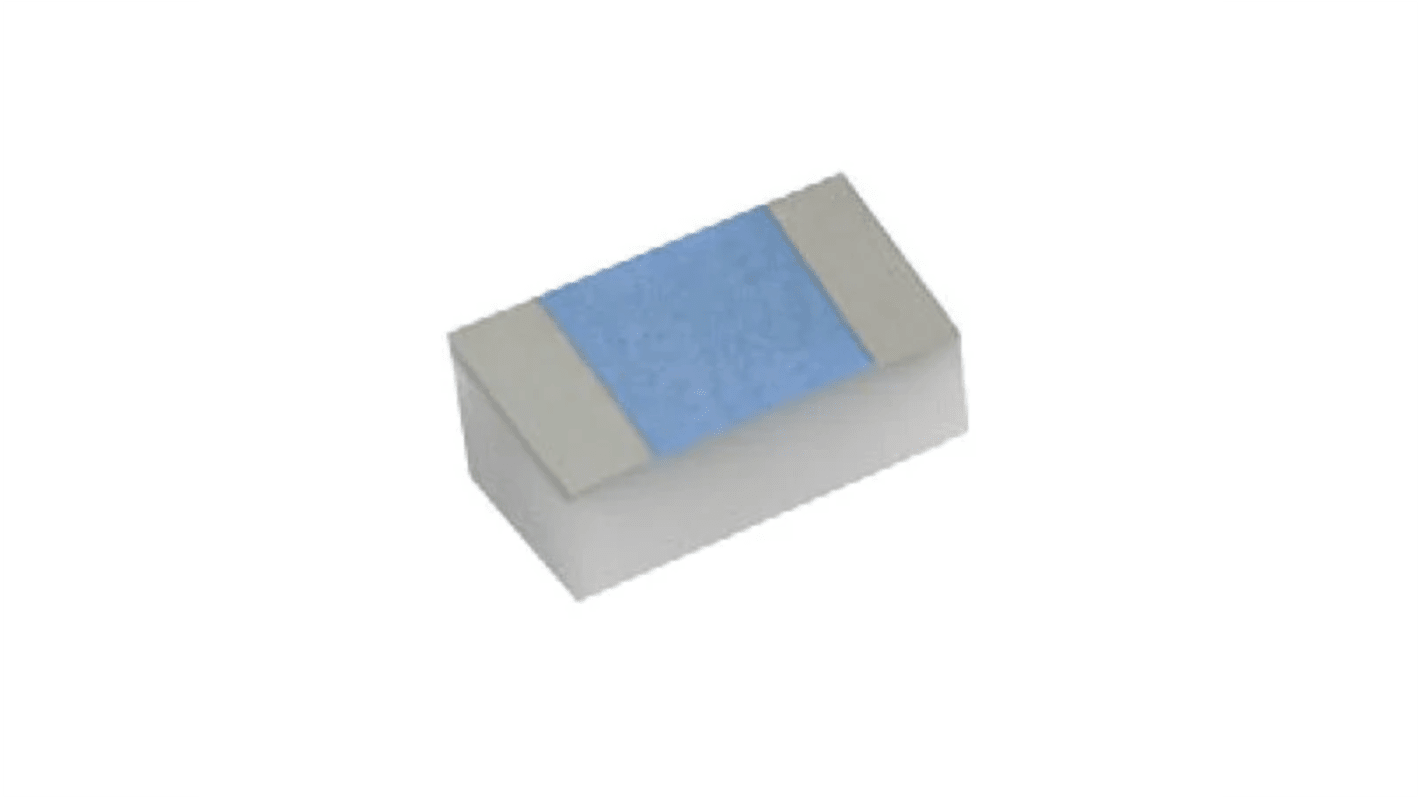

Vishay CHA 50 Ω, 0402 Thin Film Surface Mount Resistor ±2 % Surface 0.3 W - CHA0402-50RGFTD
- RS Stock No.:
- 653-044
- Mfr. Part No.:
- CHA0402-50RGFTD
- Brand:
- Vishay
Subtotal (1 tape of 1 unit)*
£2.19
(exc. VAT)
£2.63
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tape(s) | Per Tape |
|---|---|
| 1 + | £2.19 |
*price indicative
- RS Stock No.:
- 653-044
- Mfr. Part No.:
- CHA0402-50RGFTD
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 50Ω | |
| Product Type | Surface Mount Resistor | |
| Technology | Thin Film | |
| Resistor Type | Thin Film Resistor | |
| Package/Case | 0402 | |
| Tolerance | ±2 % | |
| Power Rating | 0.3W | |
| Voltage | 37V | |
| Mount Type | Surface | |
| Temperature Coefficient | 100 ppm/°C | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -55°C | |
| Series | CHA | |
| Maximum Operating Temperature | 155°C | |
| Height | 0.5mm | |
| Width | 0.6mm | |
| Standards/Approvals | UL 94 V-0, AEC-Q200, J-STD-002 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 50Ω | ||
Product Type Surface Mount Resistor | ||
Technology Thin Film | ||
Resistor Type Thin Film Resistor | ||
Package/Case 0402 | ||
Tolerance ±2 % | ||
Power Rating 0.3W | ||
Voltage 37V | ||
Mount Type Surface | ||
Temperature Coefficient 100 ppm/°C | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -55°C | ||
Series CHA | ||
Maximum Operating Temperature 155°C | ||
Height 0.5mm | ||
Width 0.6mm | ||
Standards/Approvals UL 94 V-0, AEC-Q200, J-STD-002 | ||
- COO (Country of Origin):
- FR
The Vishay High Frequency 70 GHz Thin Film Chip Resistors are miniaturized components with extremely low internal reactance, functioning as almost pure resistors from DC up to 50 GHz. It is a thin film microwave resistors with AEC‑Q200 qualified.
Thin film microwave resistors
Small internal reactance
RoHS compliant
Halogen free
Lead free
