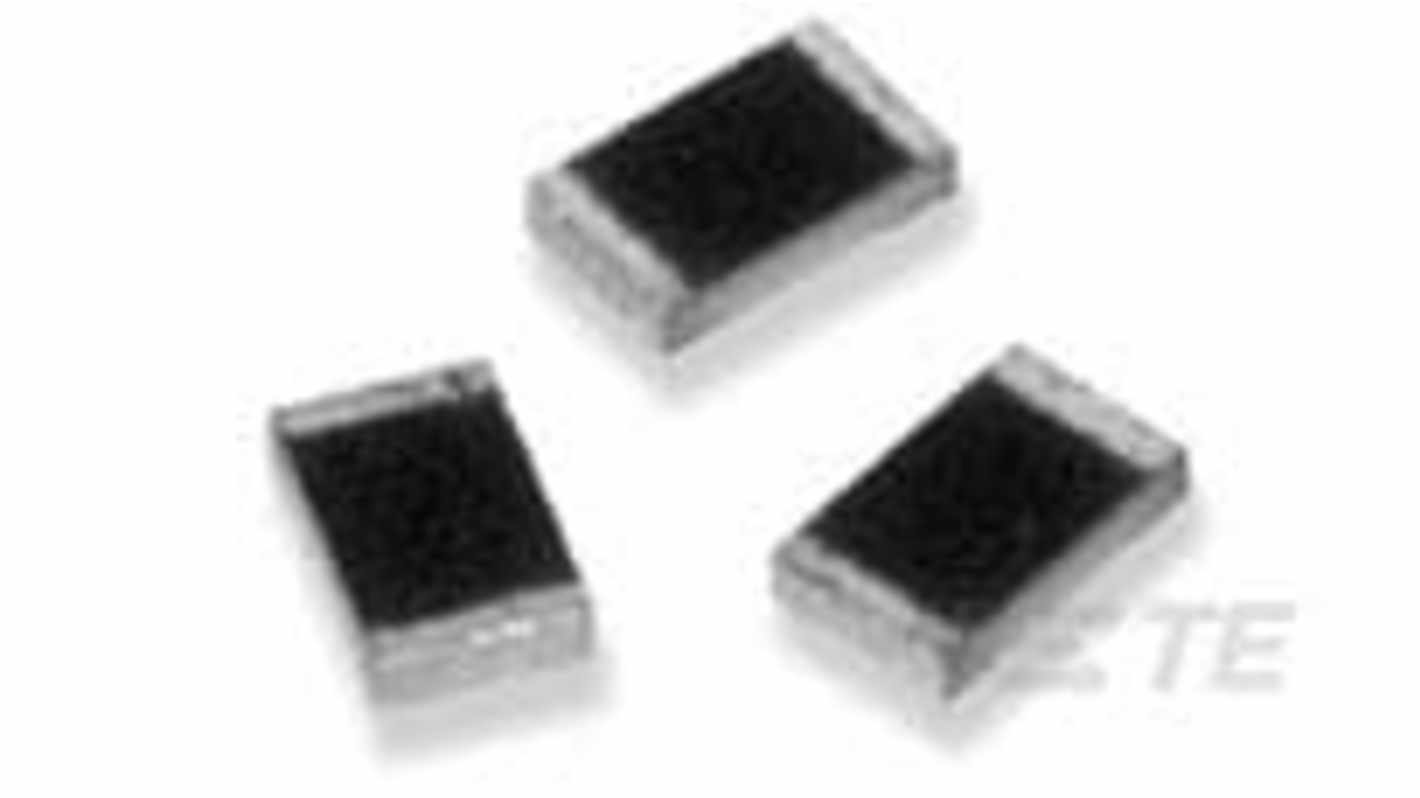

TE Connectivity Holsworthy RP73 31.6 Ω, 1206 Thin Film Resistor 0.1 % Surface 0.25 W - 4-1879254-0
- RS Stock No.:
- 477-351
- Distrelec Article No.:
- 304-60-626
- Mfr. Part No.:
- 4-1879254-0
- Brand:
- TE Connectivity
Subtotal (1 reel of 500 units)*
£263.50
(exc. VAT)
£316.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.527 | £263.50 |
*price indicative
- RS Stock No.:
- 477-351
- Distrelec Article No.:
- 304-60-626
- Mfr. Part No.:
- 4-1879254-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 31.6Ω | |
| Product Type | Resistor | |
| Technology | Thin Film | |
| Resistor Type | Precision | |
| Package/Case | 1206 | |
| Packaging | Cut Tape | |
| Tolerance | 0.1 % | |
| Power Rating | 0.25W | |
| Voltage | 20V | |
| Mount Type | Surface | |
| Temperature Coefficient | ±15 ppm/°C | |
| Automotive Standard | No | |
| Series | Holsworthy RP73 | |
| Maximum Operating Temperature | 260°C | |
| Height | 0.55mm | |
| Standards/Approvals | 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | |
| Length | 3.05mm | |
| Width | 1.55mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 31.6Ω | ||
Product Type Resistor | ||
Technology Thin Film | ||
Resistor Type Precision | ||
Package/Case 1206 | ||
Packaging Cut Tape | ||
Tolerance 0.1 % | ||
Power Rating 0.25W | ||
Voltage 20V | ||
Mount Type Surface | ||
Temperature Coefficient ±15 ppm/°C | ||
Automotive Standard No | ||
Series Holsworthy RP73 | ||
Maximum Operating Temperature 260°C | ||
Height 0.55mm | ||
Standards/Approvals 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | ||
Length 3.05mm | ||
Width 1.55mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity Surface mount precision resistor is designed to deliver exceptional performance in various electronic applications. The component features a thin film element type, ensuring high accuracy and stability across a range of operating conditions. With a power rating of 0.25 W and a resistance value of 31.6 ohms, it is well-suited for precise applications where reliability is paramount. Its compact dimensions, including a height of just .55 mm, make it an ideal choice for space-constrained designs. Engineered for easy solder termination, this resistor exemplifies durability and efficiency, providing a solid foundation for your circuit requirements.
Designed for precision applications requiring minimal tolerances
Utilises a thin film design for enhanced performance and reliability
Compact 1206 package size optimises utilisation of PCB space
Resistant to moisture, offering reliable performance in diverse environments
Low temperature coefficient ensures minimal drift over time
Compliant with ROHS and ELV regulations for eco-friendliness
