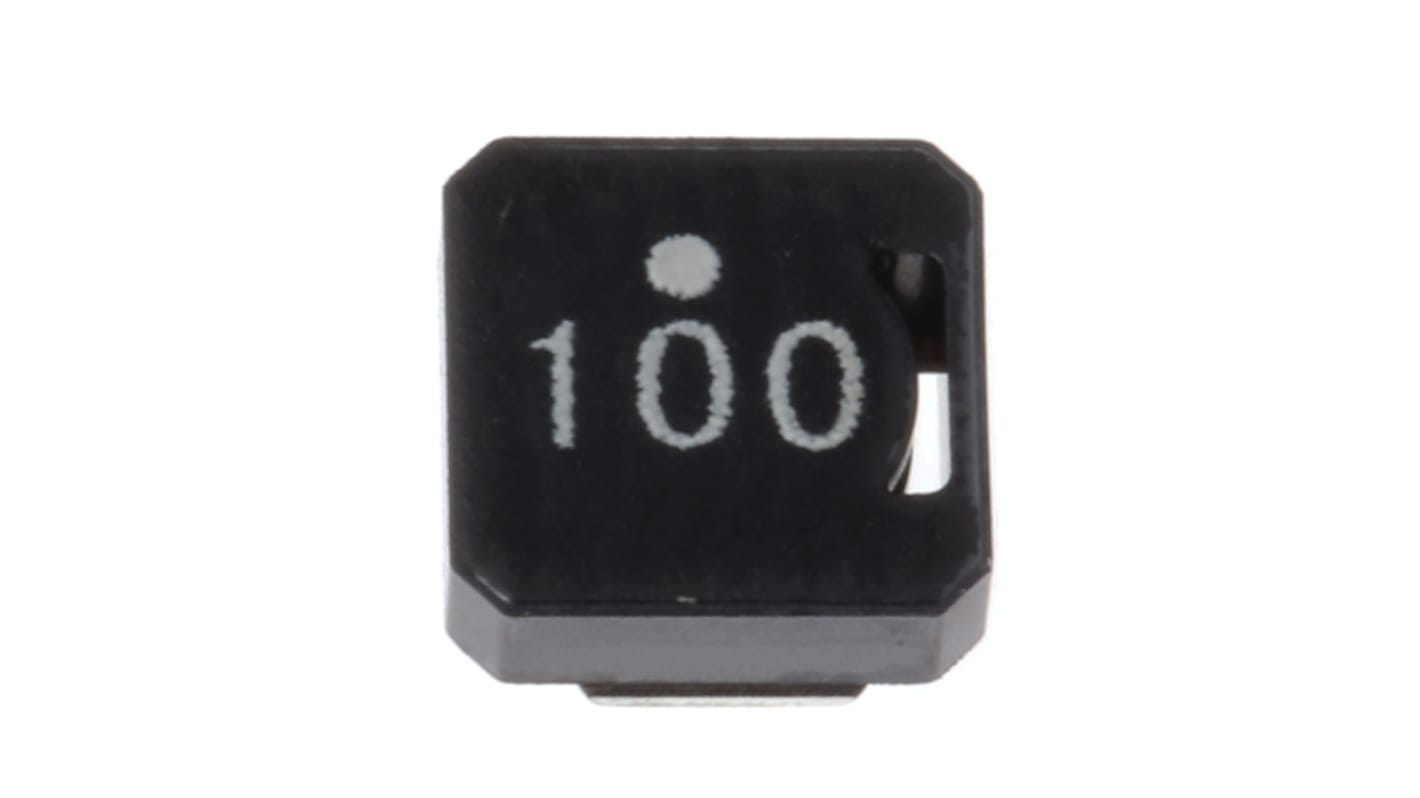

TDK, VLCF, 5020 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 10 μH ±20/±30 % 1.5 A Idc
- RS Stock No.:
- 614-2813
- Mfr. Part No.:
- VLCF5020T-100M1R1-1
- Brand:
- TDK
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.00
(exc. VAT)
£3.60
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £0.60 | £3.00 |
| 25 - 45 | £0.45 | £2.25 |
| 50 - 95 | £0.39 | £1.95 |
| 100 - 245 | £0.36 | £1.80 |
| 250 + | £0.33 | £1.65 |
*price indicative
- RS Stock No.:
- 614-2813
- Mfr. Part No.:
- VLCF5020T-100M1R1-1
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 10μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 1.5A | |
| Package/Case | 5020 | |
| Packaging | Tape & Reel | |
| Length | 5.3mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 237mΩ | |
| Inductance Tolerance | ±20/±30 % | |
| Series | VLCF | |
| Maximum Operating Temperature | 105°C | |
| Termination Style | Surface Mount | |
| Depth | 5mm | |
| Height | 2mm | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS Directive | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 10μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 1.5A | ||
Package/Case 5020 | ||
Packaging Tape & Reel | ||
Length 5.3mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 237mΩ | ||
Inductance Tolerance ±20/±30 % | ||
Series VLCF | ||
Maximum Operating Temperature 105°C | ||
Termination Style Surface Mount | ||
Depth 5mm | ||
Height 2mm | ||
Core Material Ferrite | ||
Standards/Approvals RoHS Directive | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
VLCF5020 Series Magnetically Shielded Wire Wound Chokes
Professional series of TDK surface mount power inductor from the VLCF range which offers magnetic shield type wound inductor for power circuits.
Features and Benefits:
High magnetic shield construction
Generic use portable DC to DC converter line
Test frequency = 100 kHz
Applications:
Power source inductor for mobile devices such as HDDs, DVCs, and DSCs. LCD displays and other DC to DC converters.
TDK Non Standard SMT Inductors (Chokes)
