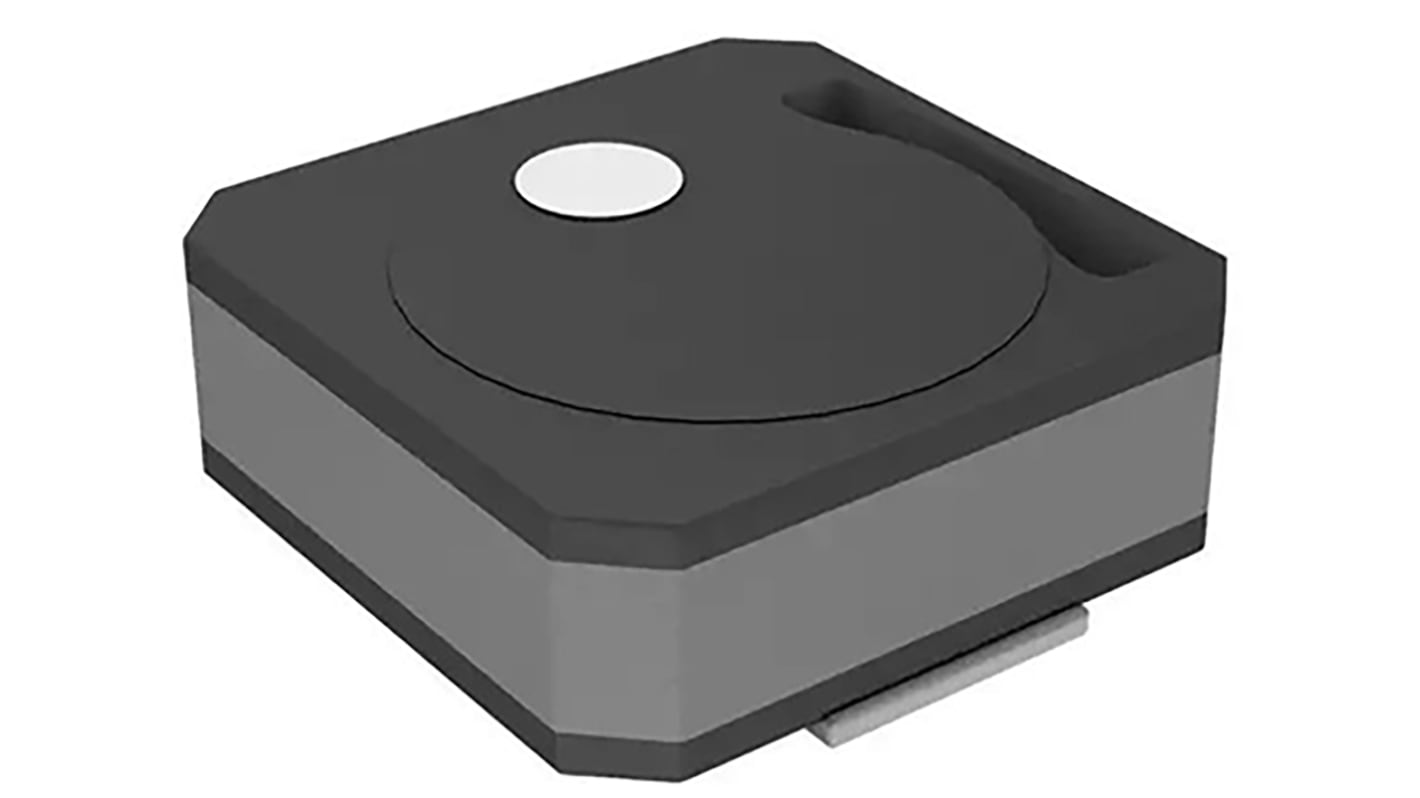

TDK, VLCF, 5020 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 100 μH ±20/±30 % 520 mA Idc
- RS Stock No.:
- 177-5459
- Mfr. Part No.:
- VLCF5020T-101MR27
- Brand:
- TDK
Subtotal (1 reel of 1000 units)*
£249.00
(exc. VAT)
£299.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.249 | £249.00 |
*price indicative
- RS Stock No.:
- 177-5459
- Mfr. Part No.:
- VLCF5020T-101MR27
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 100 μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 520mA | |
| Package/Case | 5020 | |
| Packaging | Taping | |
| Length | 5.3mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 1.581Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Inductance Tolerance | ±20/±30 % | |
| Series | VLCF | |
| Core Material | Ferrite | |
| Depth | 5mm | |
| Termination Style | Surface Mount | |
| Height | 2mm | |
| Standards/Approvals | RoHS | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 100 μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 520mA | ||
Package/Case 5020 | ||
Packaging Taping | ||
Length 5.3mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 1.581Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Inductance Tolerance ±20/±30 % | ||
Series VLCF | ||
Core Material Ferrite | ||
Depth 5mm | ||
Termination Style Surface Mount | ||
Height 2mm | ||
Standards/Approvals RoHS | ||
Inductor Construction Wirewound | ||
VLCF5020 Series Magnetically Shielded Wire Wound Chokes
Professional series of TDK surface mount power inductor from the VLCF range which offers magnetic shield type wound inductor for power circuits.
Features and Benefits:
High magnetic shield construction
Generic use portable DC to DC converter line
Test frequency = 100 kHz
Applications:
Power source inductor for mobile devices such as HDDs, DVCs, and DSCs. LCD displays and other DC to DC converters.
