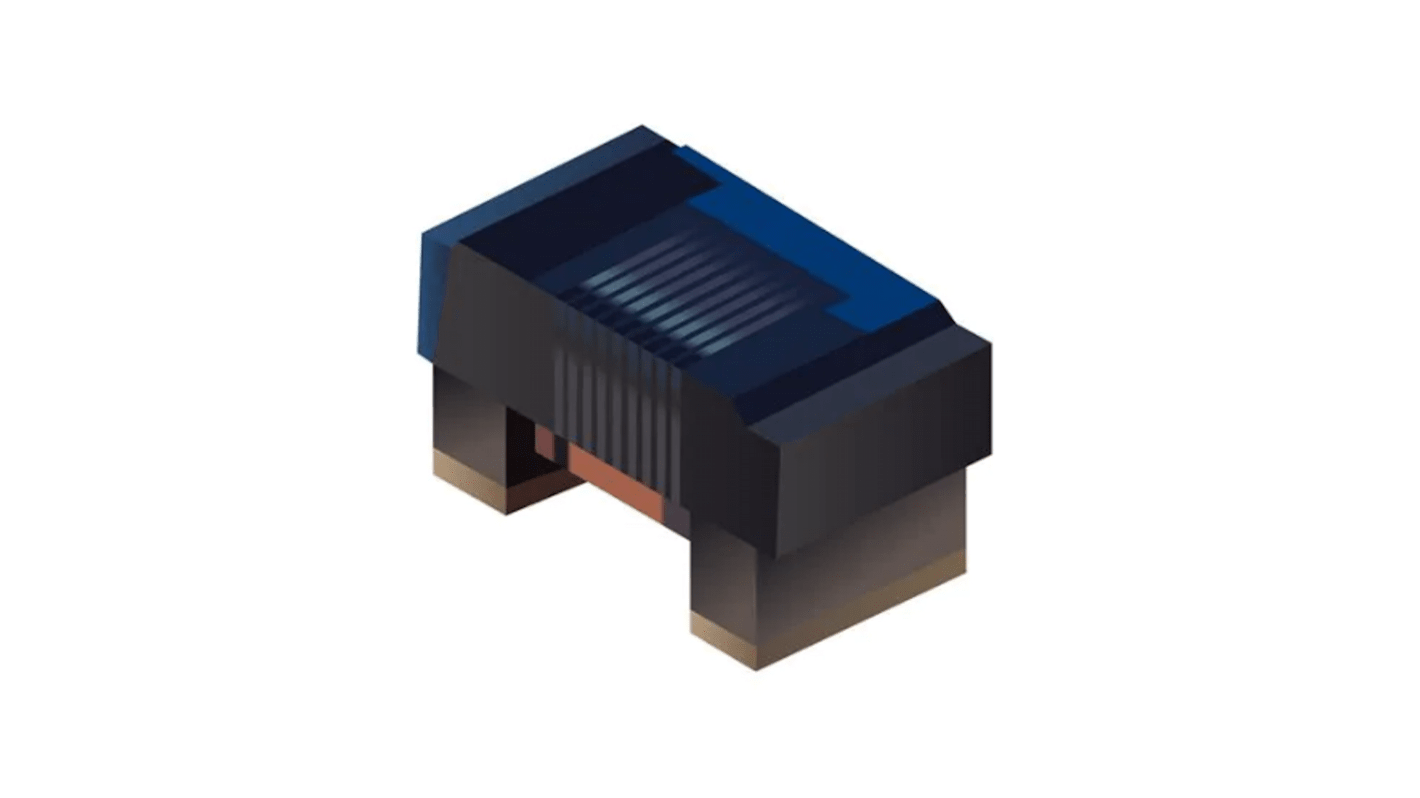

Bourns, CWF2414, 2414 Shielded Power Inductor with a Ferrite Core, 2.2 μH ±10 % 1040 A Idc Q:13
- RS Stock No.:
- 247-5896
- Distrelec Article No.:
- 304-40-380
- Mfr. Part No.:
- CWF2414-2R2K
- Brand:
- Bourns
Bulk discount available
Subtotal (1 tape of 10 units)*
£1.14
(exc. VAT)
£1.37
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,270 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 40 | £0.114 | £1.14 |
| 50 - 90 | £0.106 | £1.06 |
| 100 - 490 | £0.088 | £0.88 |
| 500 - 990 | £0.066 | £0.66 |
| 1000 + | £0.052 | £0.52 |
*price indicative
- RS Stock No.:
- 247-5896
- Distrelec Article No.:
- 304-40-380
- Mfr. Part No.:
- CWF2414-2R2K
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 2.2μH | |
| Product Type | Power Inductor | |
| Maximum DC Current | 1040A | |
| Package/Case | 2414 | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum DC Resistance | 0.22Ω | |
| Maximum Operating Temperature | 125°C | |
| Series | CWF2414 | |
| Inductance Tolerance | ±10 % | |
| Height | 1.3mm | |
| Standards/Approvals | RoHS | |
| Core Material | Ferrite | |
| Depth | 1.4mm | |
| Termination Style | Surface Mount | |
| Maximum Self Resonant Frequency | 87MHz | |
| Moulded | No | |
| Inductor Construction | Wirewound | |
| Minimum Quality Factor | 13 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 2.2μH | ||
Product Type Power Inductor | ||
Maximum DC Current 1040A | ||
Package/Case 2414 | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum DC Resistance 0.22Ω | ||
Maximum Operating Temperature 125°C | ||
Series CWF2414 | ||
Inductance Tolerance ±10 % | ||
Height 1.3mm | ||
Standards/Approvals RoHS | ||
Core Material Ferrite | ||
Depth 1.4mm | ||
Termination Style Surface Mount | ||
Maximum Self Resonant Frequency 87MHz | ||
Moulded No | ||
Inductor Construction Wirewound | ||
Minimum Quality Factor 13 | ||
- COO (Country of Origin):
- TW
The Bourns CWF2414 series chip Inductor feature wire-wound construction on a ferrite core that offers high inductance and low DC Resistance (DCR). It has miniature size and 2.2 μH inductance with 1.04 A rated current.
High self-resonant frequency
High Q value
Operating temperature is -40 °C to 125 °C
Halogen free
