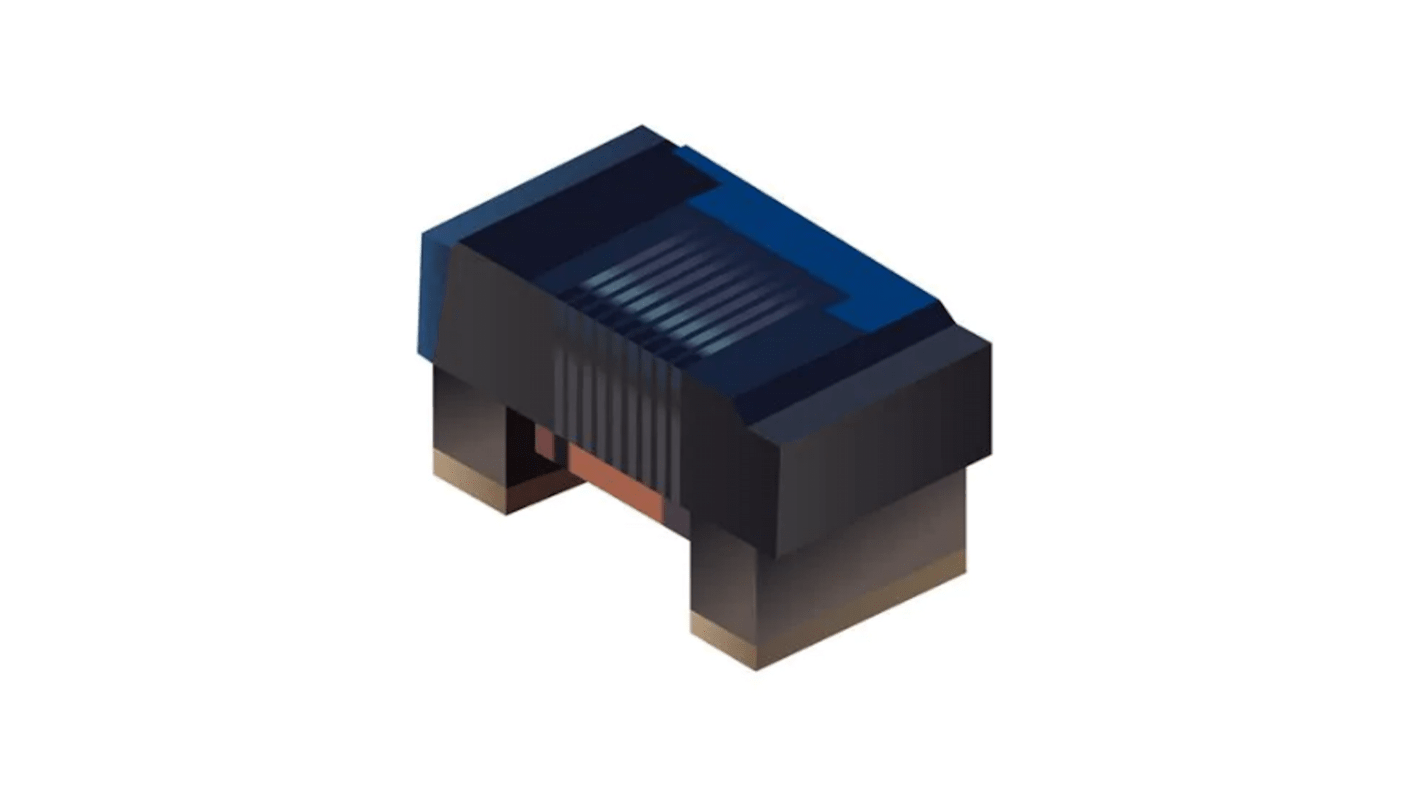

Bourns, CWF2414, 2414 Shielded Power Inductor with a Ferrite Core, 22 μH ±10 % 340 A Idc Q:15

View all Surface Mount Inductors

Subtotal (1 reel of 2000 units)*

£122.00

(exc. VAT)

£146.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2000 +£0.061£122.00

*price indicative

RS Stock No.:
247-5892
Mfr. Part No.:
CWF2414-220K
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Power Inductor

Inductance

22μH

Maximum DC Current

340A

Package/Case

2414

Packaging

Tape & Reel

Automotive Standard

No

Shielding

Yes

Minimum Operating Temperature

-40°C

Maximum DC Resistance

1.76Ω

Pin Count

2

Maximum Operating Temperature

125°C

Series

CWF2414

Inductance Tolerance

±10 %

Standards/Approvals

RoHS

Depth

1.4mm

Termination Style

Surface Mount

Height

1.3mm

Core Material

Ferrite

Maximum Self Resonant Frequency

20MHz

Minimum Quality Factor

15

Moulded

No

Inductor Construction

Wirewound

COO (Country of Origin):
TW
The Bourns CWF2414 series chip Inductor feature wire-wound construction on a ferrite core that offers high inductance and low DC Resistance (DCR). It has miniature size and 22 μH inductance with 0.34 A rated current.

High self-resonant frequency

High Q value

Operating temperature is -40 °C to 125 °C

Halogen free
