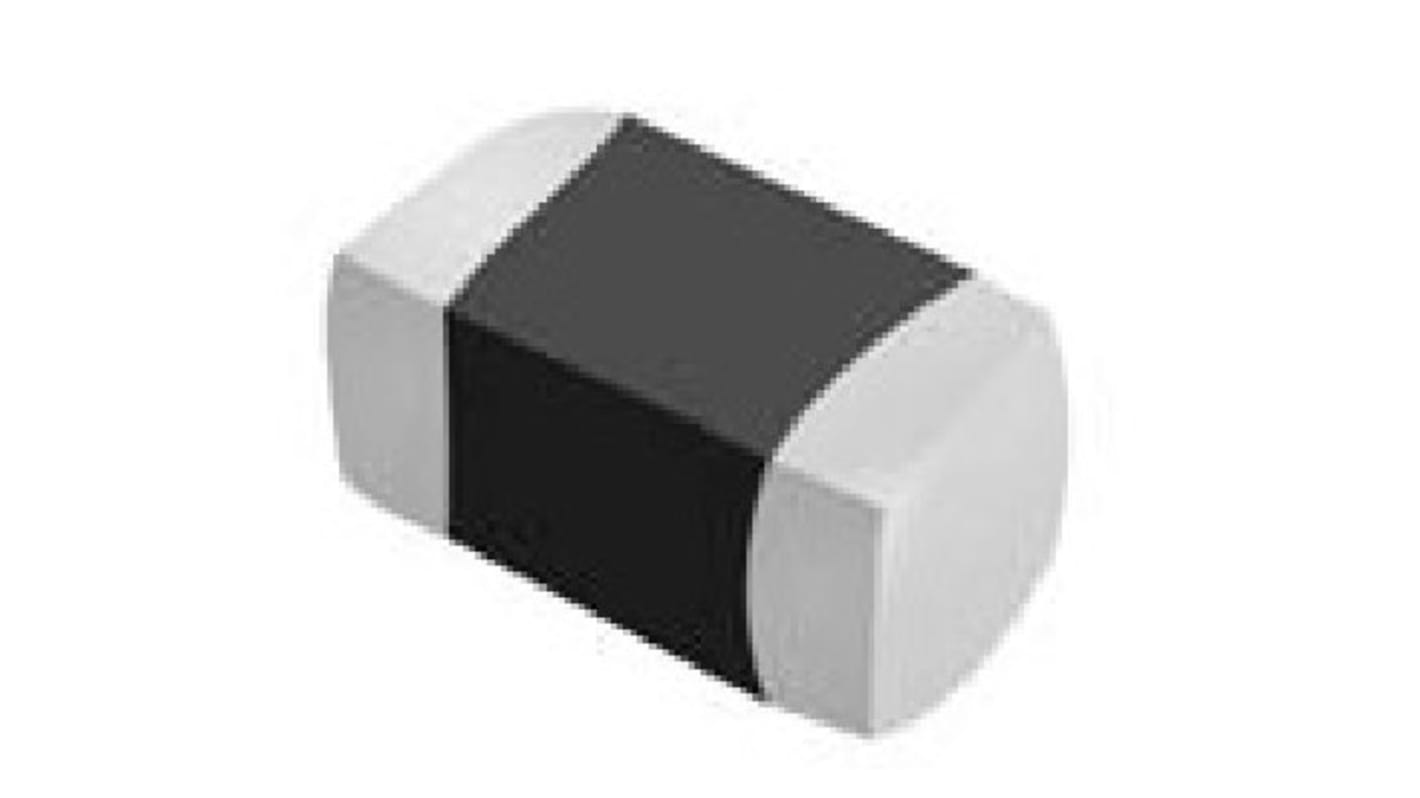

Abracon, ASMPH-0603, 0603 Shielded Surface Mount Inductor with a Ferrite Core, 2.2 μH Flat Wire Winding ±20 % 250 mA Idc
- RS Stock No.:
- 240-0895
- Mfr. Part No.:
- ASMPH-0603-2R2M-T
- Brand:
- Abracon
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 4000 units)*
£320.00
(exc. VAT)
£400.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 - 4000 | £0.08 | £320.00 |
| 8000 - 20000 | £0.075 | £300.00 |
| 24000 + | £0.074 | £296.00 |
*price indicative
- RS Stock No.:
- 240-0895
- Mfr. Part No.:
- ASMPH-0603-2R2M-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Inductance | 2.2μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 250mA | |
| Package/Case | 0603 | |
| Length | 1.6mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 0.38Ω | |
| Series | ASMPH-0603 | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Standards/Approvals | RoHS | |
| Diameter | 1.6mm | |
| Termination Style | Surface Mount | |
| Height | 0.8mm | |
| Depth | 0.8mm | |
| Core Material | Ferrite | |
| Moulded | Yes | |
| Inductor Construction | Flat Wire Winding | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Inductance 2.2μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 250mA | ||
Package/Case 0603 | ||
Length 1.6mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 0.38Ω | ||
Series ASMPH-0603 | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Standards/Approvals RoHS | ||
Diameter 1.6mm | ||
Termination Style Surface Mount | ||
Height 0.8mm | ||
Depth 0.8mm | ||
Core Material Ferrite | ||
Moulded Yes | ||
Inductor Construction Flat Wire Winding | ||
The Abracon Low profile shielded SMD chip power inductor is Suitable for wide range of application such as Mobile phones, MP3 & 4, Digital cameras and other portable communication equipment.
High DC bias current due to trench technology
Much lower profile than any other series
Monolithic structure for high reliability
Excellent solderability and heat resistance
Magnetically shielded structure to eliminate cross coupling
